Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the washer solvent from the washer solvent container.
  2. Disconnect the rear washer pump electrical connector.
  3. Disconnect the rear washer pump hose.

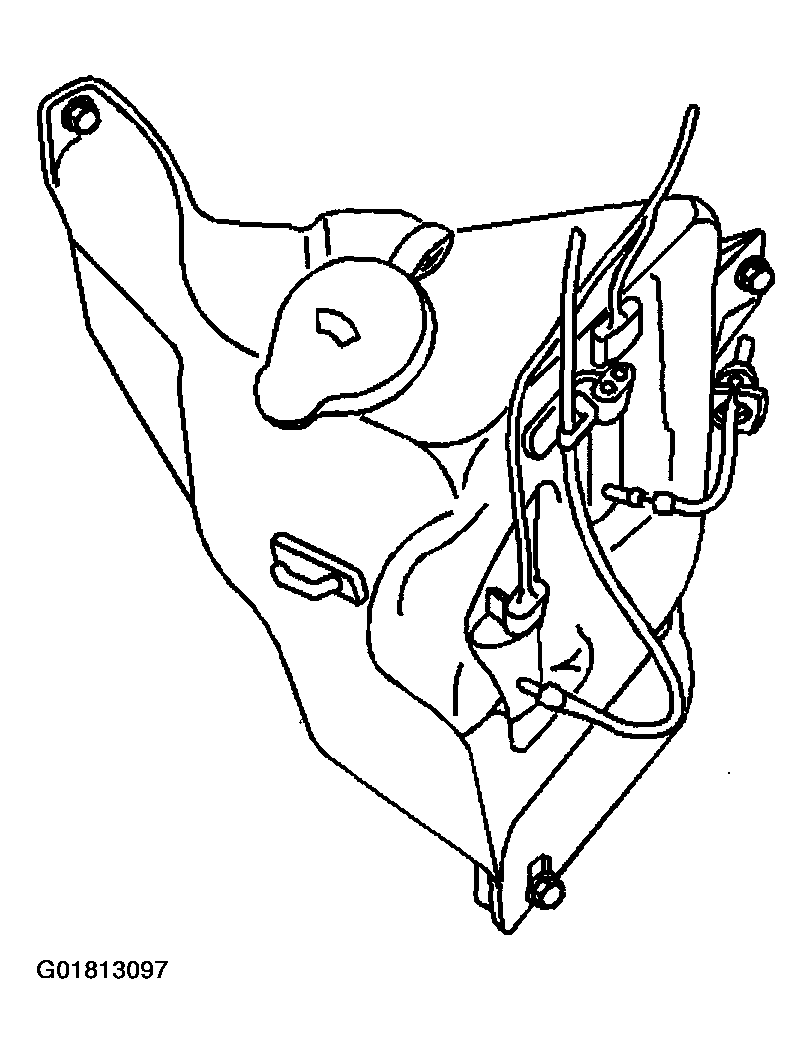

    Fig 1: Disconnecting Rear Washer Pump Electrical Connector
    G01813097Courtesy of GENERAL MOTORS CORP.
  4. Using a small flat-bladed tool, remove the rear washer pump from the washer solvent container.
  5. Using a small flat-bladed tool, remove the seal from the washer solvent container.

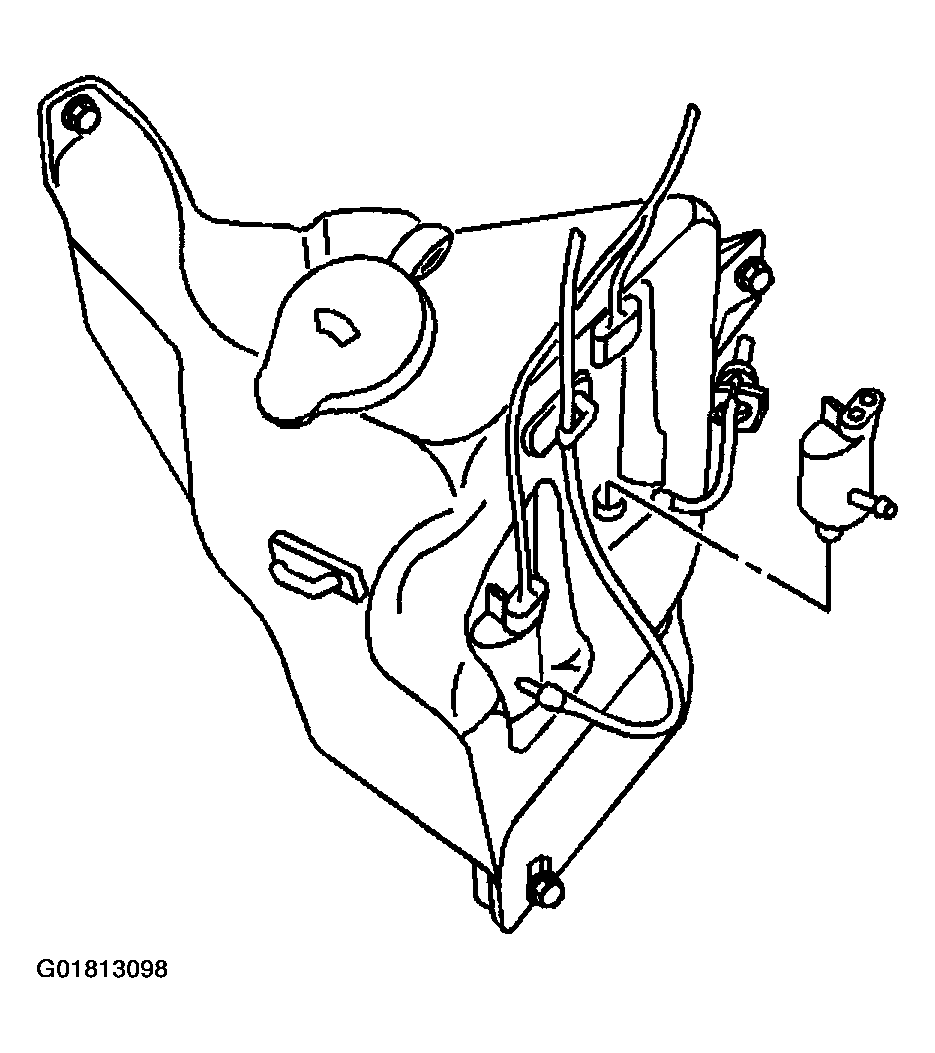

    Fig 2: Removing Rear Washer Pump & Washer Solvent Container
    G01813098Courtesy of GENERAL MOTORS CORP.
