Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the seal to the washer solvent container, pressing in until fully seated.
  2. Position the rear washer pump to the washer solvent container, pressing in until fully seated.

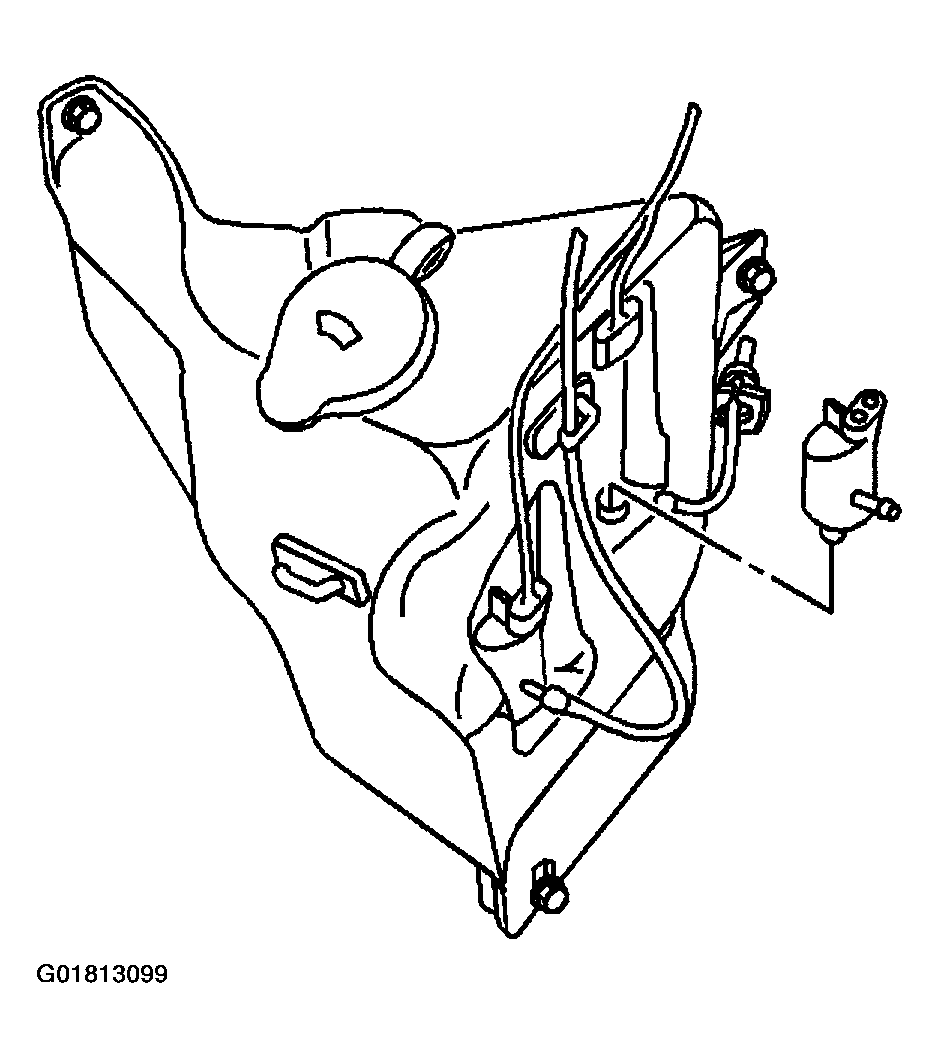

    Fig 1: Installing Rear Washer Pump & Washer Solvent Container
    G01813099Courtesy of GENERAL MOTORS CORP.
  3. Connect the rear washer pump hose.
  4. Connect the rear washer pump electrical connector.
  5. Fill the washer solvent container with washer solvent.

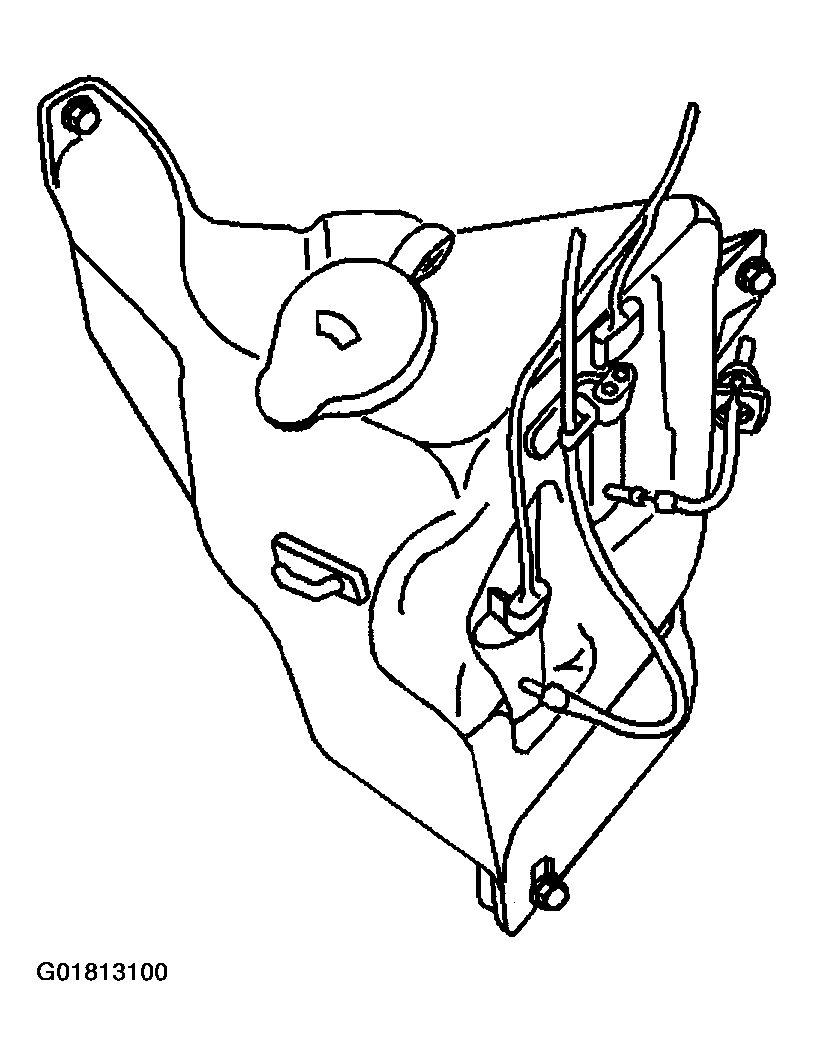

    Fig 2: Connecting Rear Washer Pump Electrical Connector
    G01813100Courtesy of GENERAL MOTORS CORP.
