Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the washer nozzle hose to the wiper arm.
  2. Connect the washer nozzle hose Y-fitting to the washer hose.

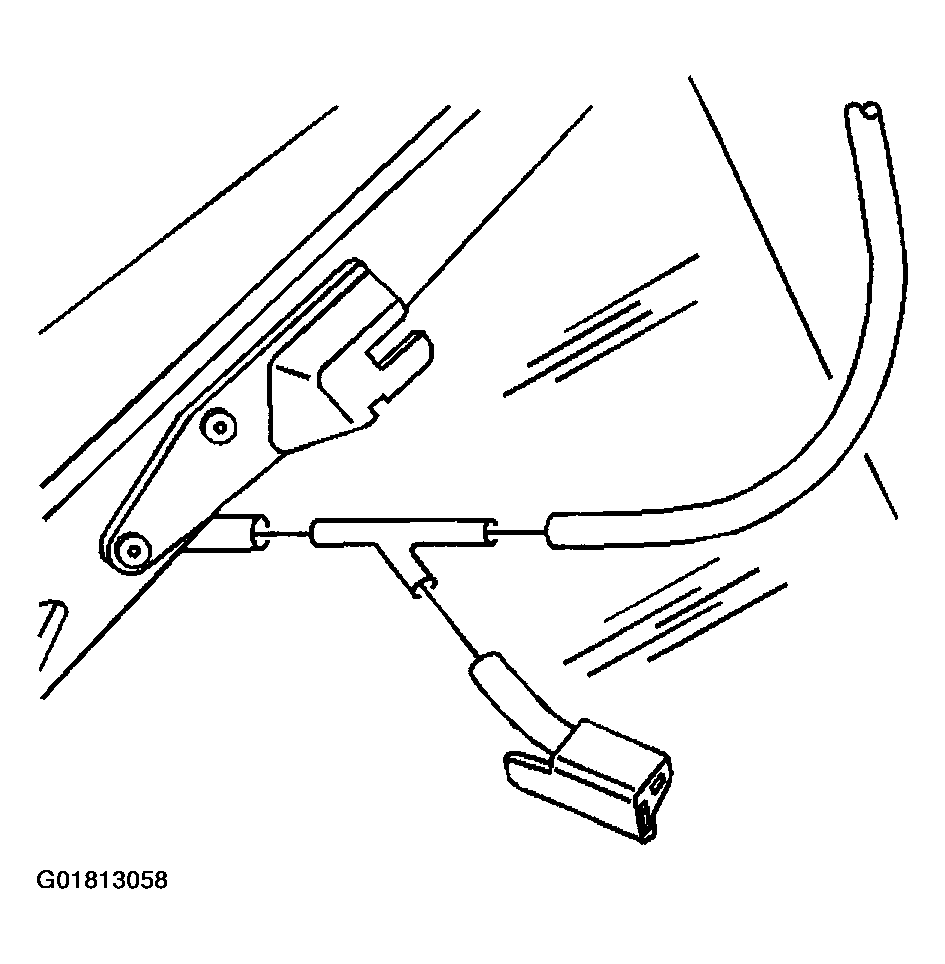

    Fig 1: Connecting Washer Nozzle Hose Y-Fitting
    G01813058Courtesy of GENERAL MOTORS CORP.
  3. Install the upper washer nozzle hose to the wiper arm.

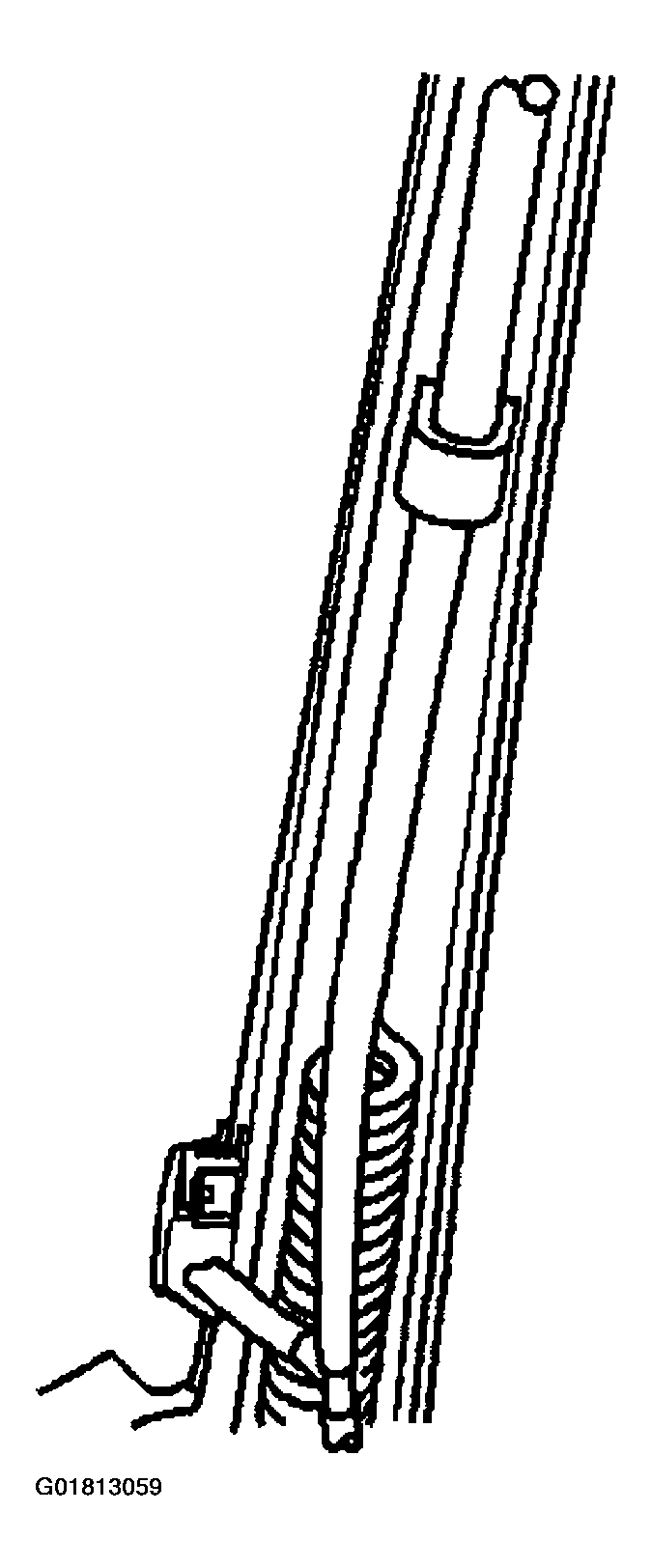

    Fig 2: Installing Upper Washer Nozzle Hose & Wiper Arm
    G01813059Courtesy of GENERAL MOTORS CORP.
  4. Connect the upper washer nozzle to the upper washer nozzle hose.
  5. Position the upper washer nozzle to the wiper arm, pressing in until fully seated.
    Fig 3: Connecting Upper Washer Nozzle & Hose
    G01813060Courtesy of GENERAL MOTORS CORP.
  6. Position the lower washer nozzle to the wiper arm, pressing in until fully seated.
  7. Inspect the washers for proper operation.
    Fig 4: Installing Lower Washer Nozzle
    G01813061Courtesy of GENERAL MOTORS CORP.
