Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wiper module cover. Refer to Wiper Module Cover Replacement .
  2. Disconnect the front washer hose from the wiper arms.
  3. Disconnect the front washer hose from the air inlet grille panel.
  4. Remove the front washer hose grommet from the grille panel pinch weld.
  5. Disconnect the front washer hose from the wiper motor bracket.
  6. Disconnect the front washer hose from the washer solvent container.

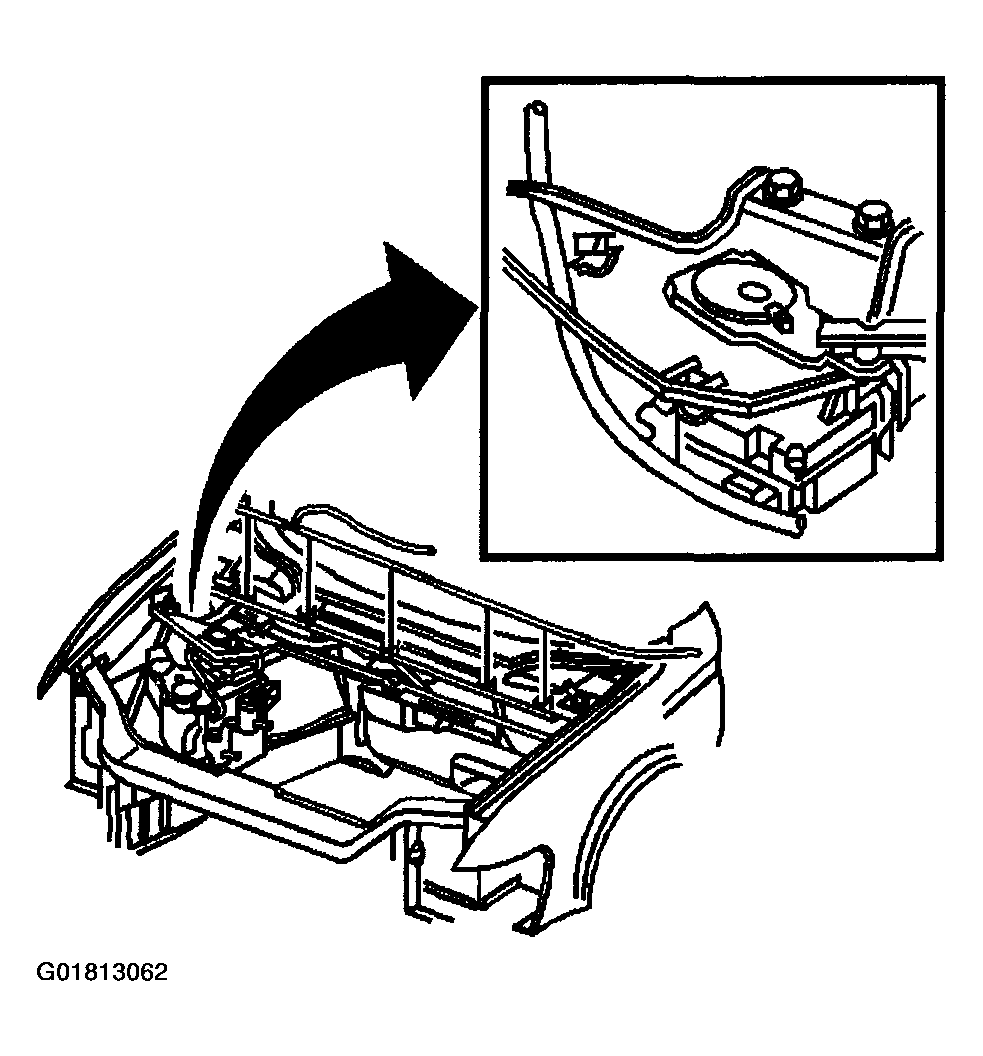

    Fig 1: Removing Front Washer Hose Grommet & Grille Panel Pinch Weld
    G01813062Courtesy of GENERAL MOTORS CORP.
  7. Disconnect the front washer hose from the front washer pump.
  8. Remove the front washer hose from the vehicle.

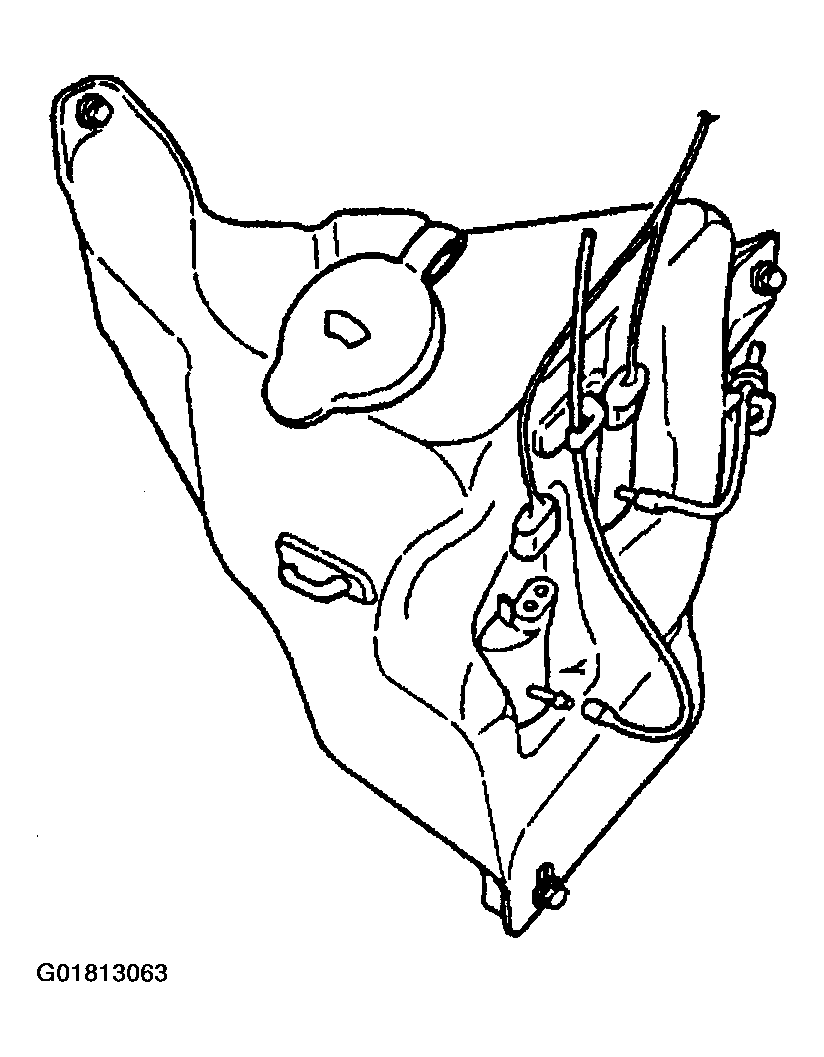

    Fig 2: Removing Front Washer Hose
    G01813063Courtesy of GENERAL MOTORS CORP.
