Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the front washer hose to the vehicle.
  2. Install the front washer hose to the washer pump.
  3. Connect the front washer hose to the washer solvent container.

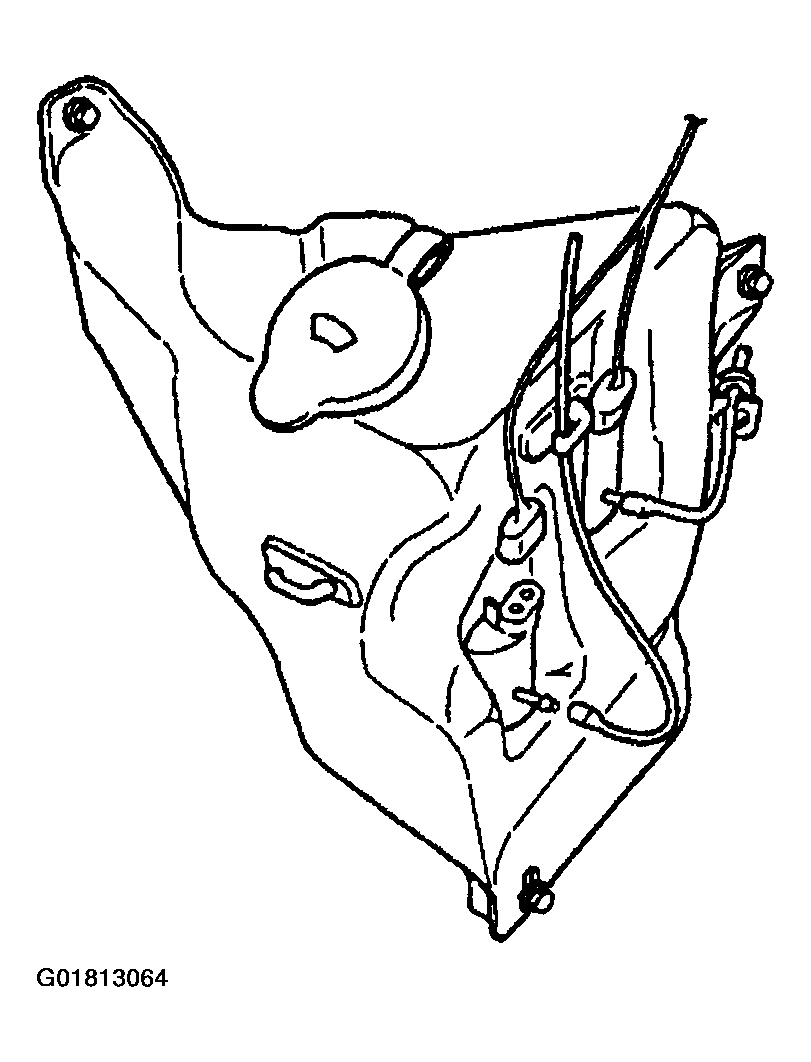

    Fig 1: Installing Front Washer Hose
    G01813064Courtesy of GENERAL MOTORS CORP.
  4. Connect the front washer hose to the wiper motor bracket.
  5. Install the front washer hose grommet into the grille panel pinch weld.
  6. Connect the front washer hose to the air inlet grille panel.
  7. Connect the front washer hose to the wiper arms.
  8. Install the wiper module cover. Refer to Wiper Module Cover Replacement .

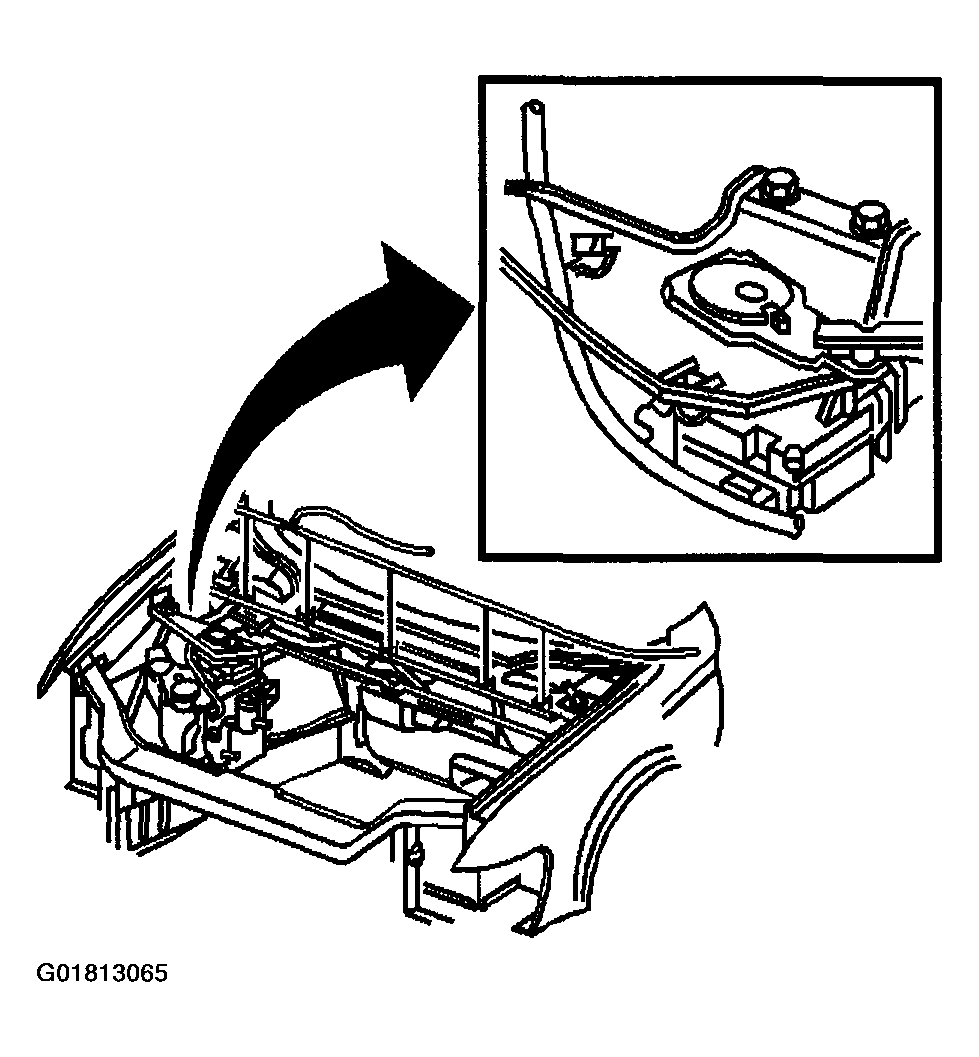

    Fig 2: Installing Front Washer Hose Grommet & Grille Panel Pinch Weld
    G01813065Courtesy of GENERAL MOTORS CORP.
