Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right cowl trim panel. Refer to TRIM PANEL REPLACEMENT - COWL SIDE .
  2. Remove the right lower pillar garnish molding. Refer to GARNISH MOLDING REPLACEMENT - LOWER PILLAR .
  3. Remove the right rear lower quarter trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER .
  4. Remove the liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE .
  5. Remove the wiper module cover. Refer to Wiper Module Cover Replacement .
  6. Disconnect the rear washer hose from the rear washer pump.
  7. Disconnect the rear washer hose from the washer solvent container.

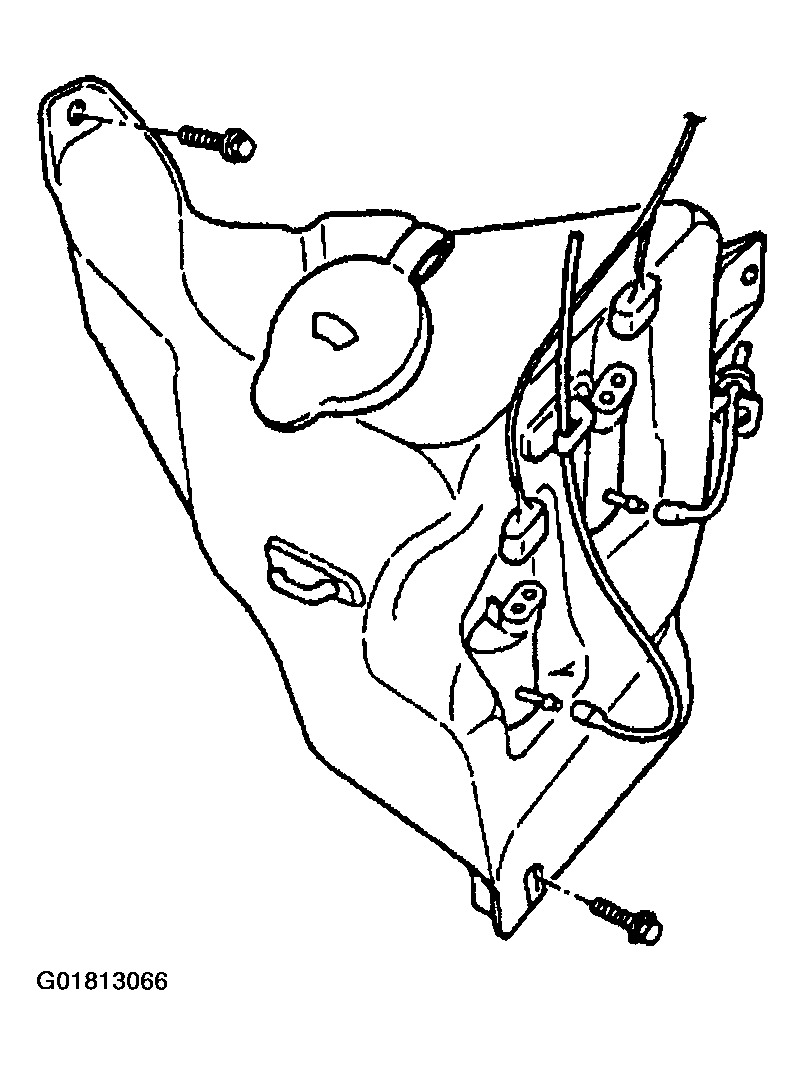

    Fig 1: Disconnecting Rear Washer Hose & Pump
    G01813066Courtesy of GENERAL MOTORS CORP.
  8. Using a small flat-bladed tool, remove the rear washer nozzle (2).
  9. Disconnect the rear washer hose (1) from the rear washer nozzle (2).
  10. Pull the rear washer hose end out through the rear liftgate conduit.

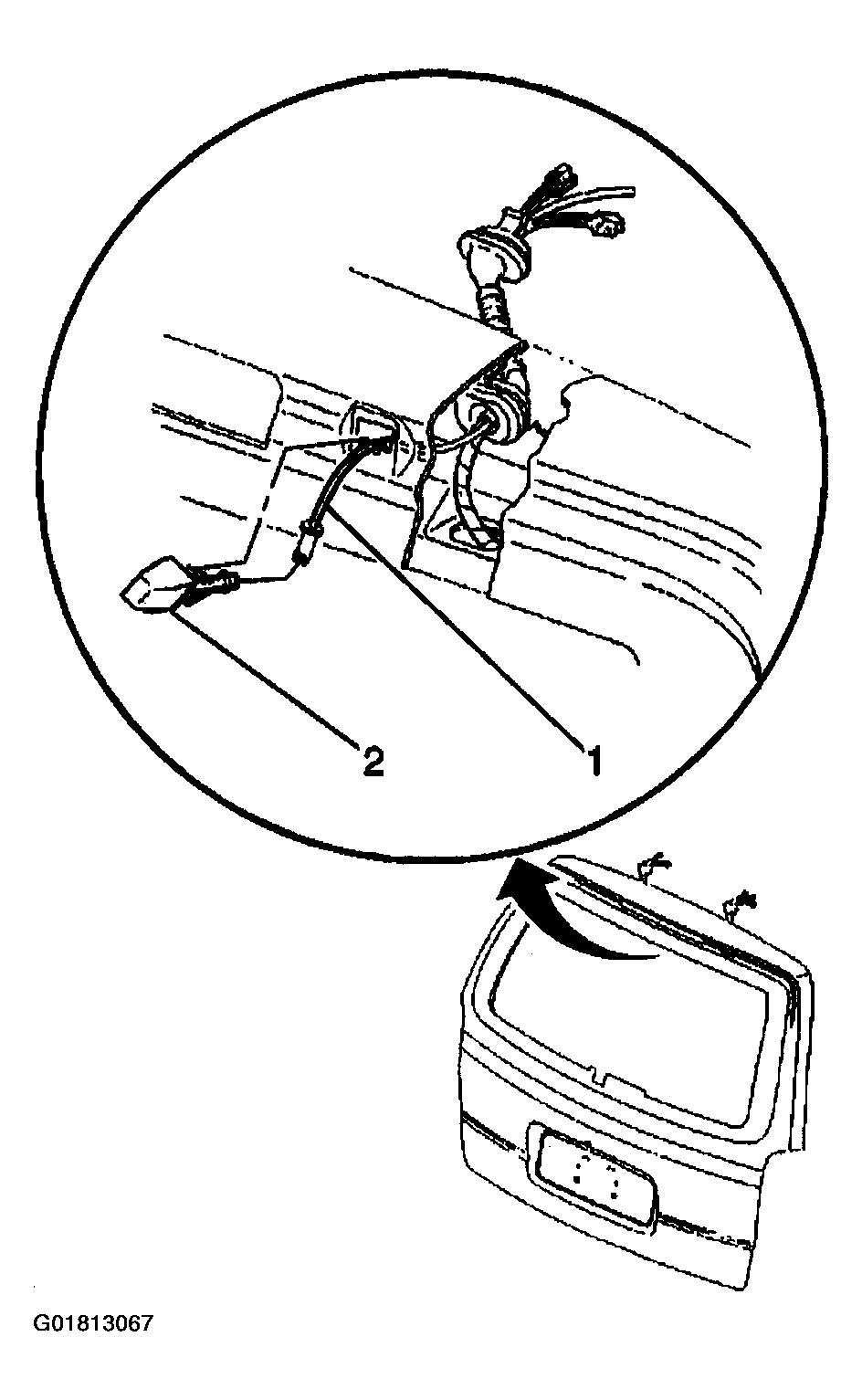

    Fig 2: Removing Rear Washer Hose & Rear Washer Nozzle
    G01813067Courtesy of GENERAL MOTORS CORP.
  11. Pull the rear washer hose end out through the opening in the dash panel.
  12. Remove the rear washer hose from the right side of the vehicle.

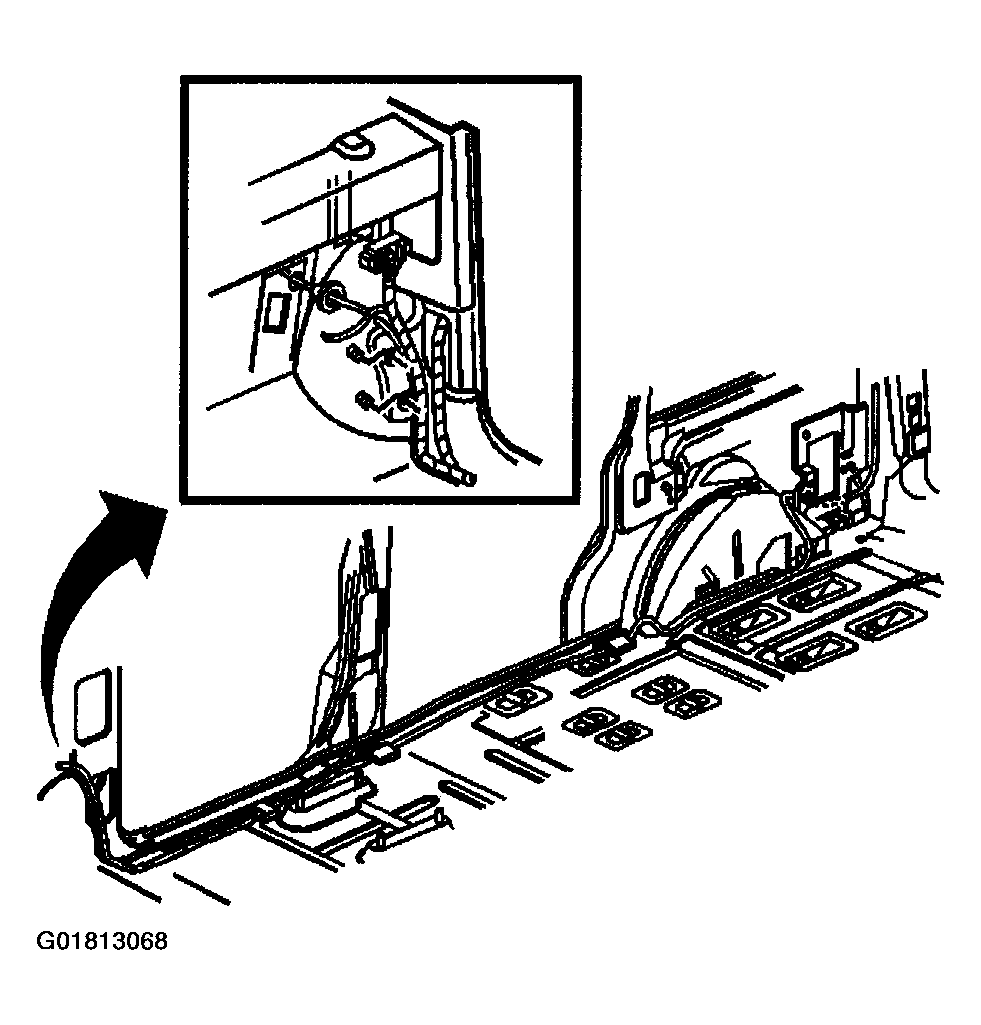

    Fig 3: Removing Rear Washer Hose From Right Side Of Vehicle
    G01813068Courtesy of GENERAL MOTORS CORP.
