Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wiper blade from the wiper arm. Refer to Wiper Arm Blade Replacement - Rear .
  2. Remove the rubber wiper element from the element vertebra.

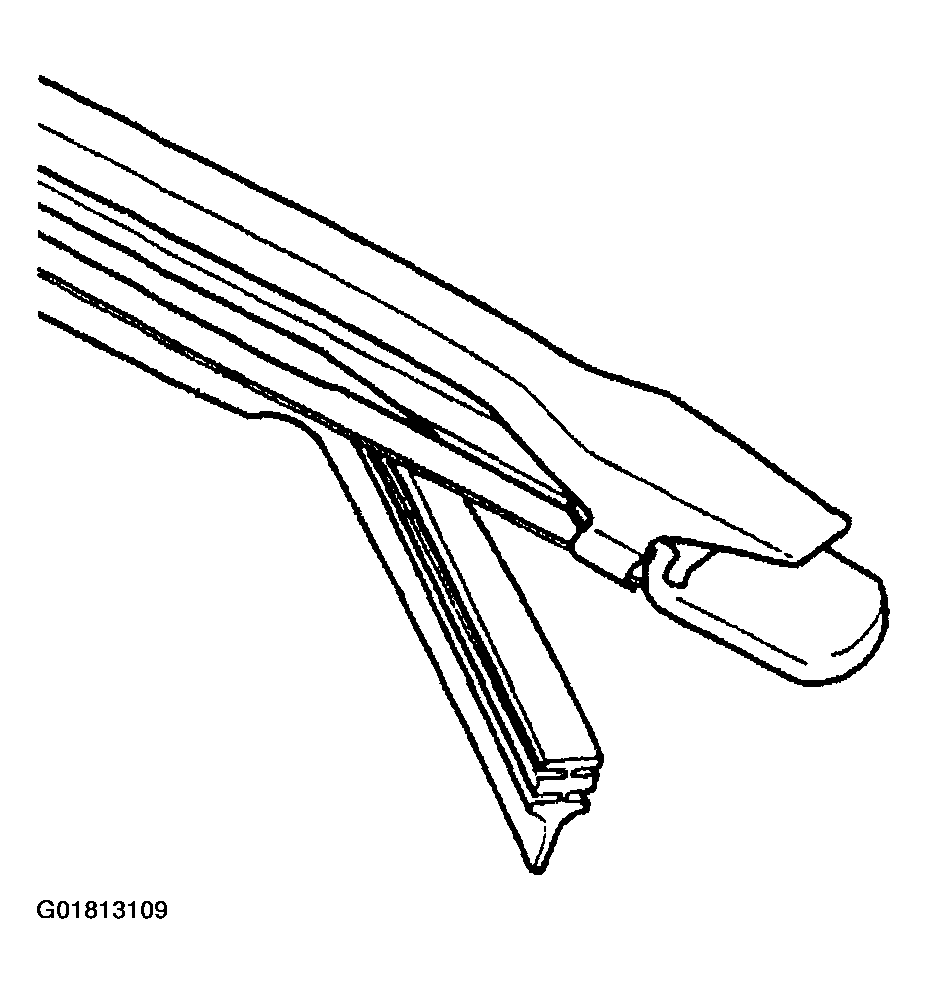

    Fig 1: Rubber Wiper Element (Rear)
    G01813109Courtesy of GENERAL MOTORS CORP.
  3. Remove the element vertebra and end cap from the wiper blade.
    Fig 2: Removing Element Vertebra & End Cap (Rear)
    G01813110Courtesy of GENERAL MOTORS CORP.
