Interior Lights Schematics (Door Locks, Sliding Door Jamb Switches and Liftgate Door Lock)

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Interior Lights Schematics (Door Locks, Sliding Door Jamb Switches & Liftgate Door Lock)

Courtesy of GENERAL MOTORS CORP.

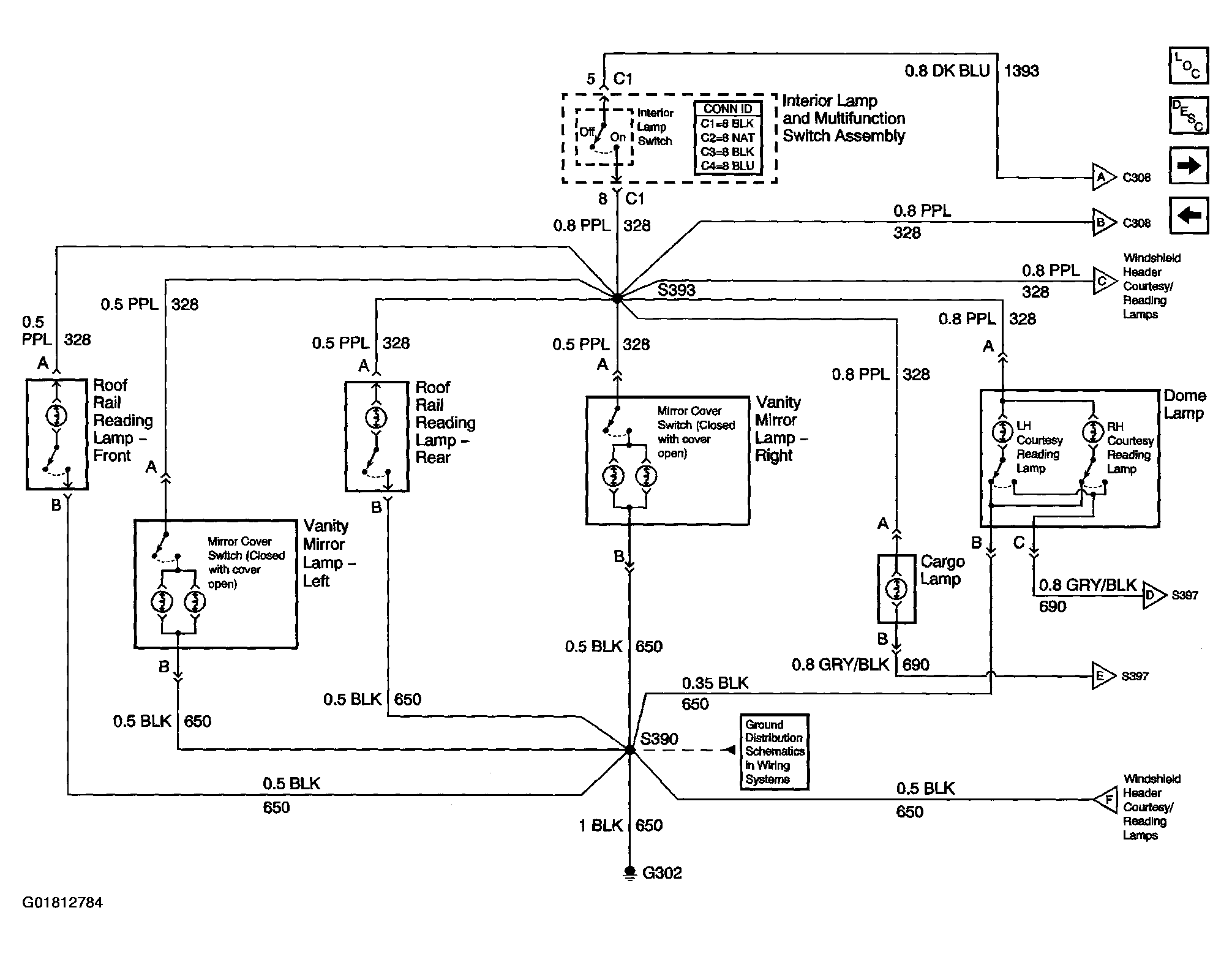

Fig 2: Interior Lights Schematics (Interior Lamp & Multifunction Switch & Sunshade Lighted Vanity Mirror)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Interior Lights Schematics (Windshield Header/Courtesy Reading Lamps)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Interior Lights Schematics (BCM, Headlamp & IP Lamp Dimmer Switch)

Courtesy of GENERAL MOTORS CORP.
