Interior Lights Dimming Schematics (Headlamp and IP Lamp Dimmer Switch)

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

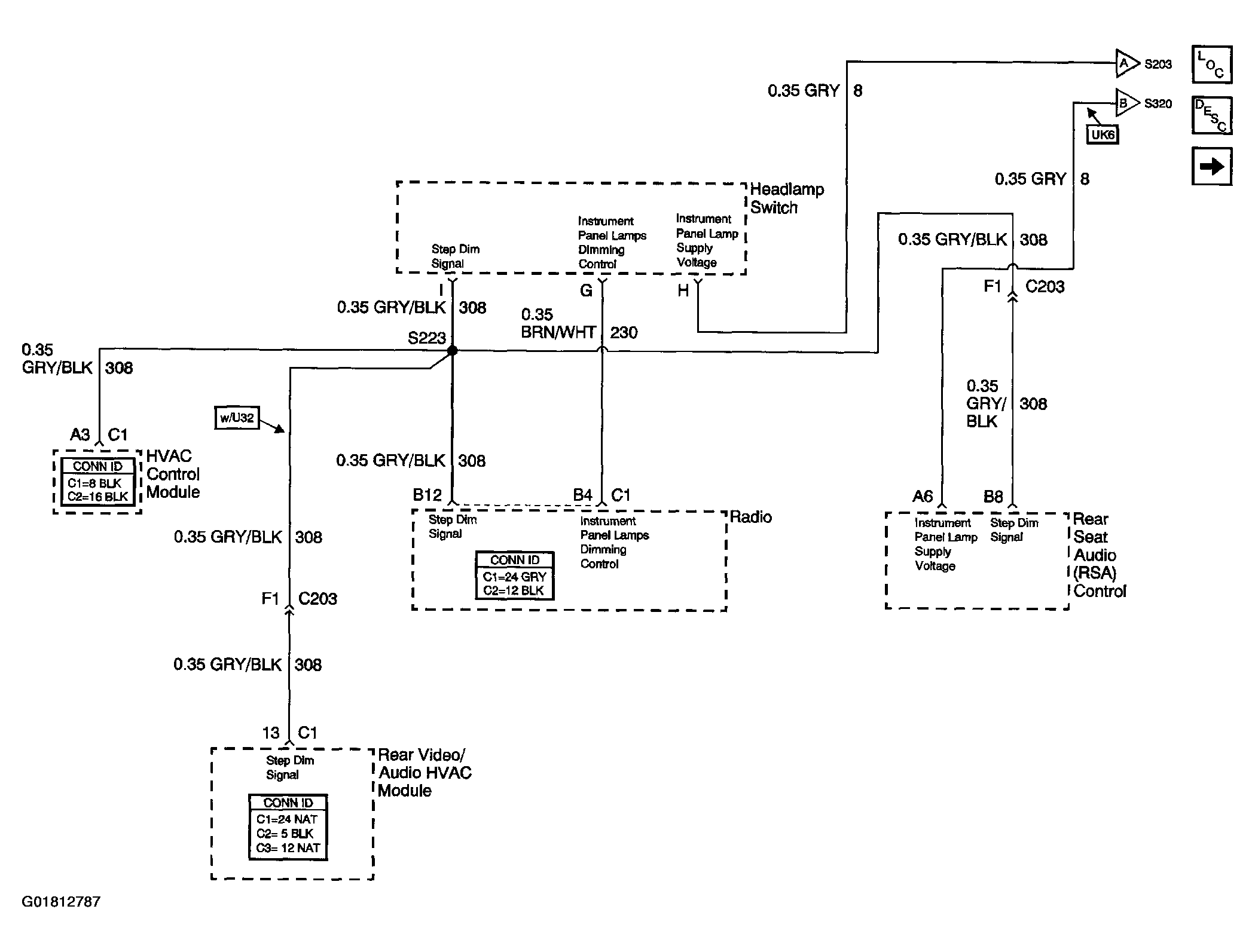

Fig 1: Interior Lights Dimming Schematics (Headlamp & IP Lamp Dimmer Switch)

Courtesy of GENERAL MOTORS CORP.

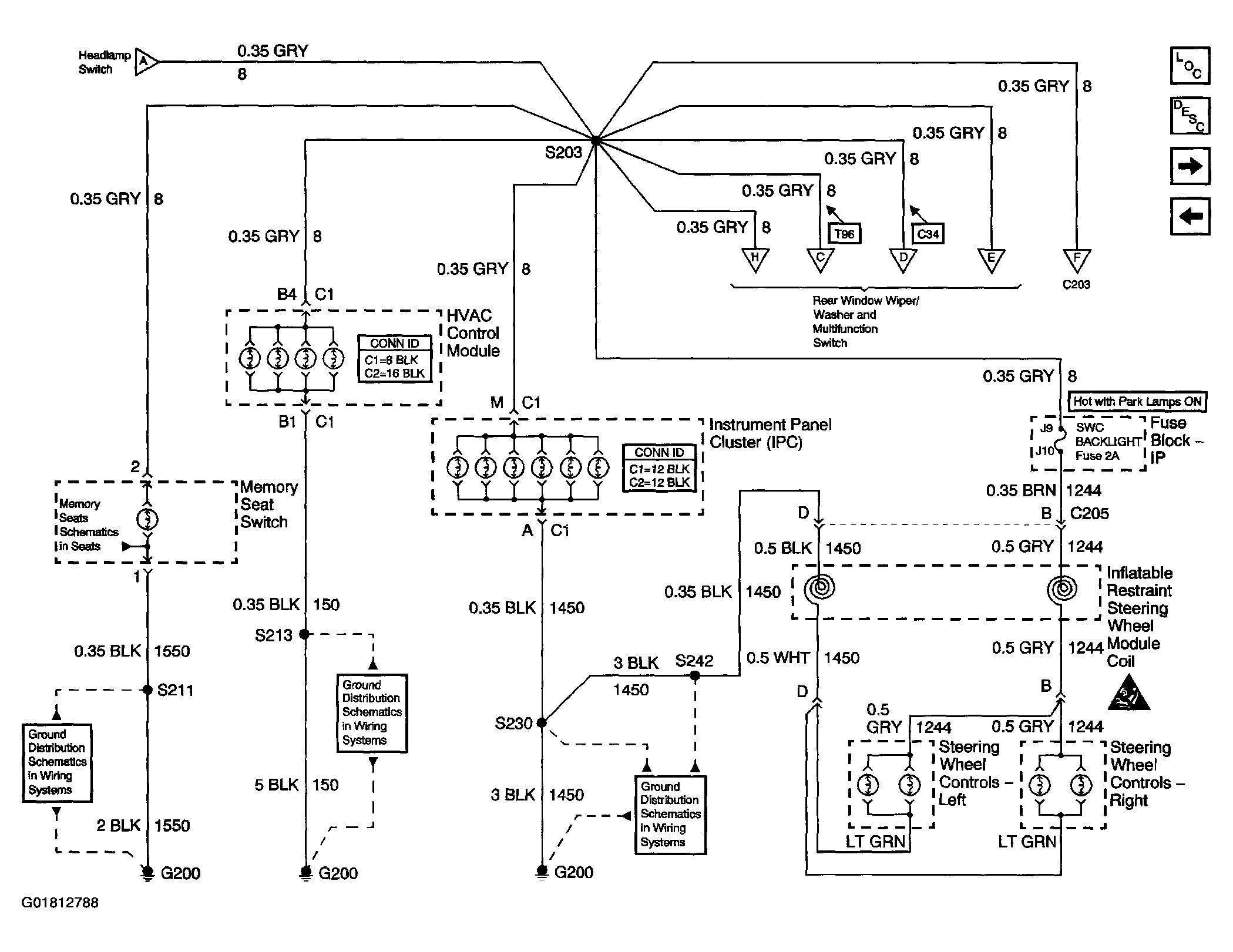

Fig 2: Interior Lights Dimming Schematics (Heater-A/C Control Switches & Instrument Panel Cluster (IPC))

Courtesy of GENERAL MOTORS CORP.

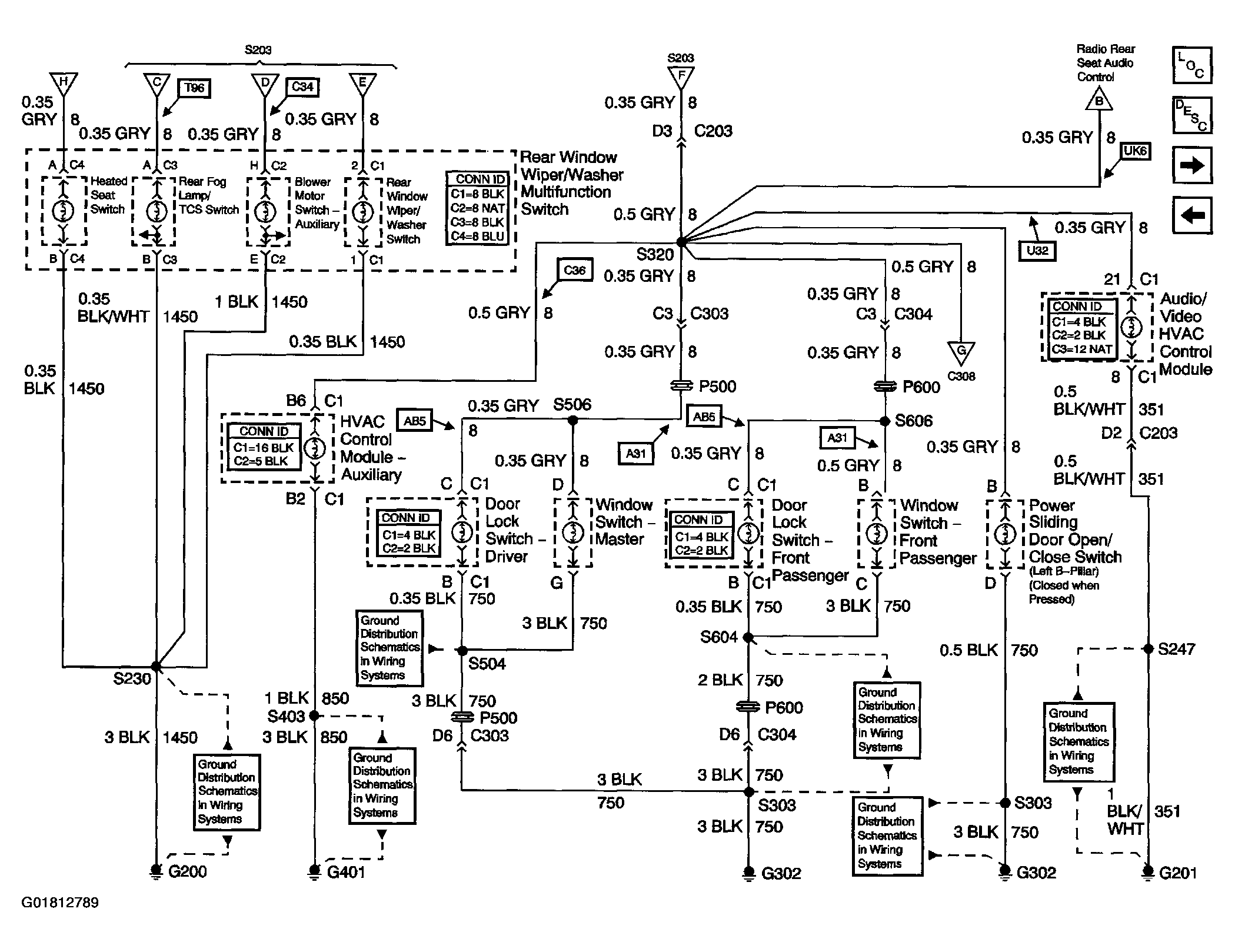

Fig 3: Interior Lights Dimming Schematics (Rear Window Wiper/Washer & Multifunction Switch, Window & Door Lock Switches)

Courtesy of GENERAL MOTORS CORP.

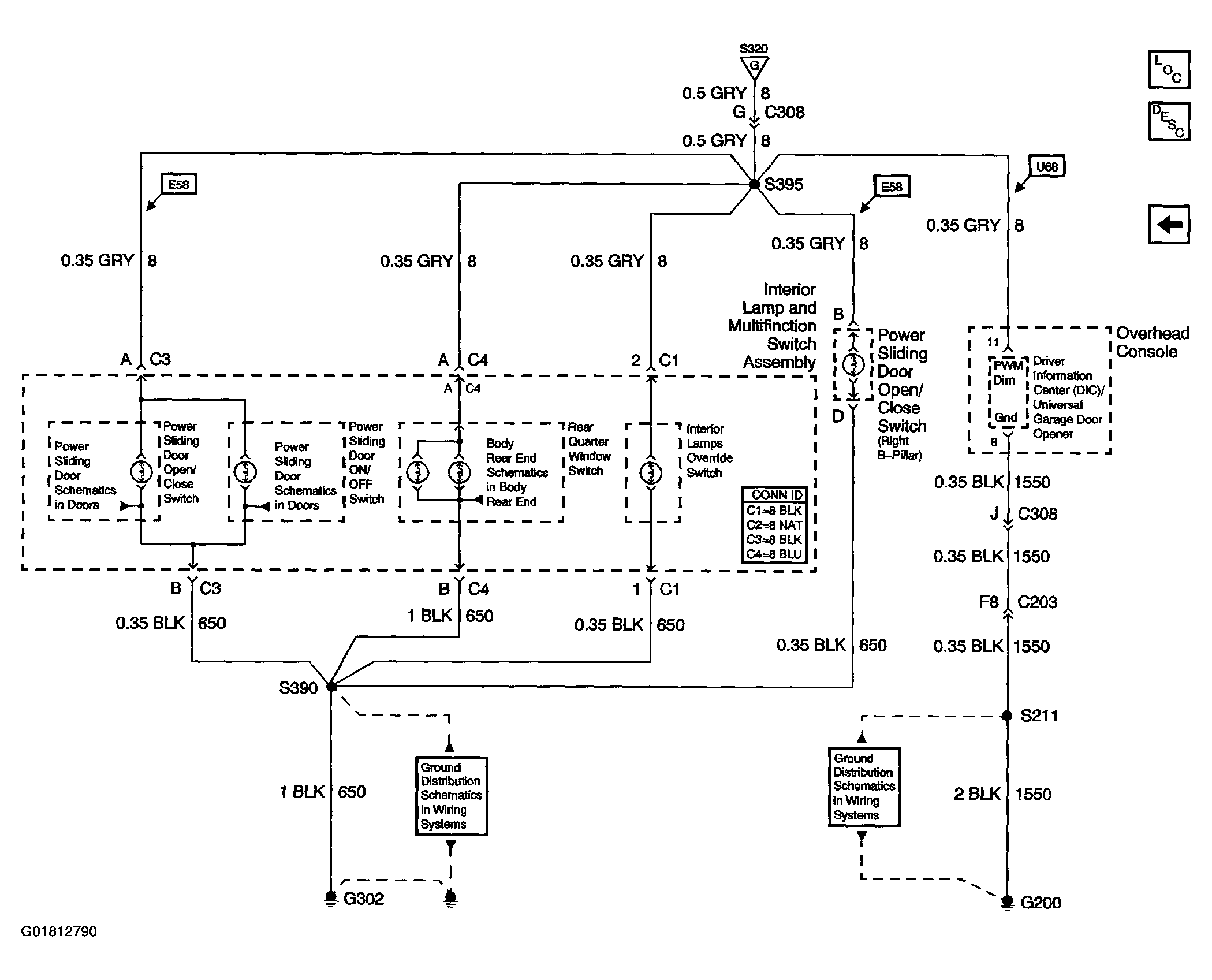

Fig 4: Interior Lights Dimming Schematics (Interior Lamp & Multifunction Switch, Driver Information Center (DIC) & Release Actuator Switch)

Courtesy of GENERAL MOTORS CORP.
