Headlights/Daytime Running Lights (DRL) Schematics (Domestic) (Park Brake Indicator Switch and DRL Ambient Light Sensor)

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

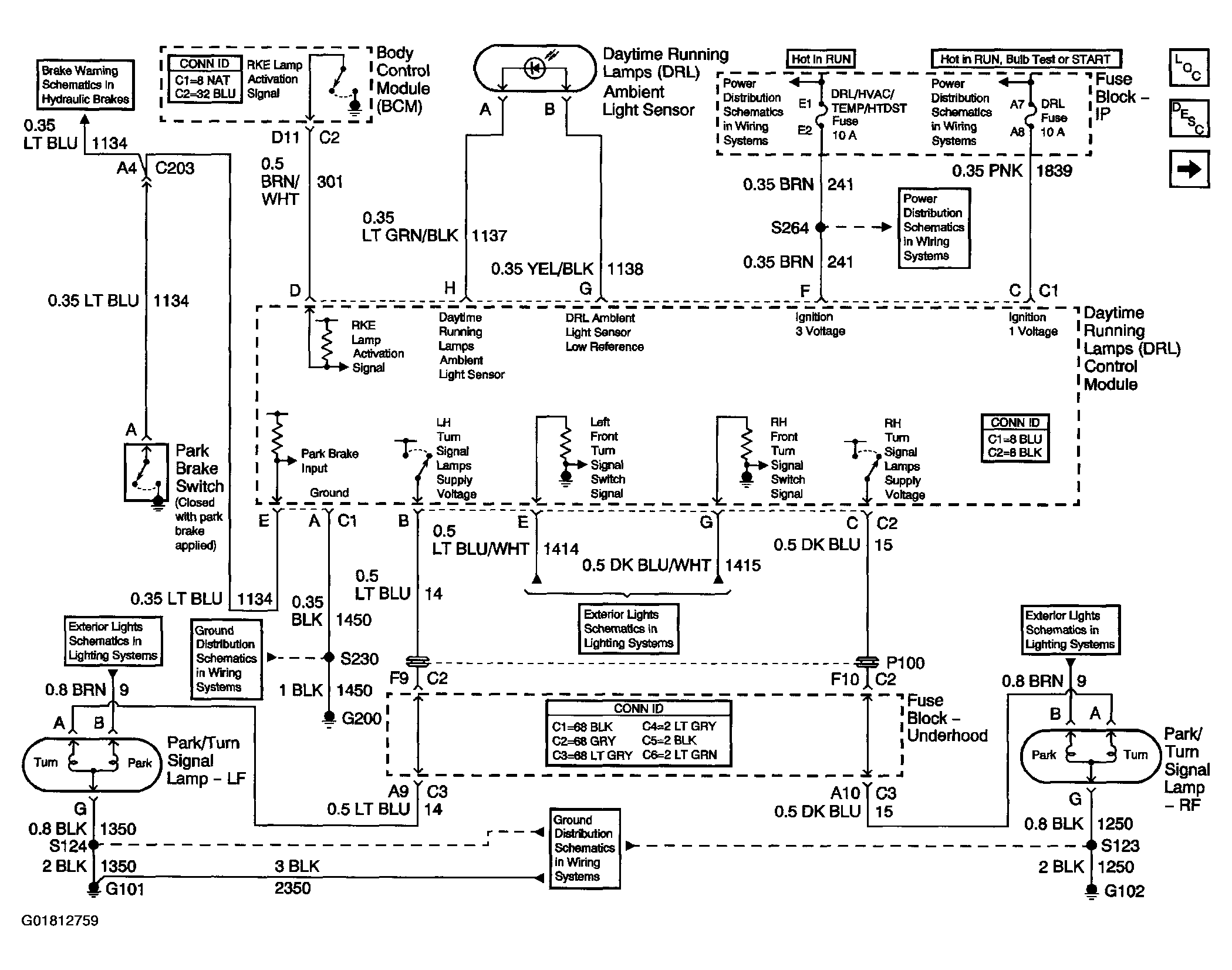

Fig 1: Headlights/Daytime Running Lights (DRL) Schematics (Domestic) (Park Brake Indicator Switch & DRL Ambient Light Sensor)
G01812759Courtesy of GENERAL MOTORS CORP.

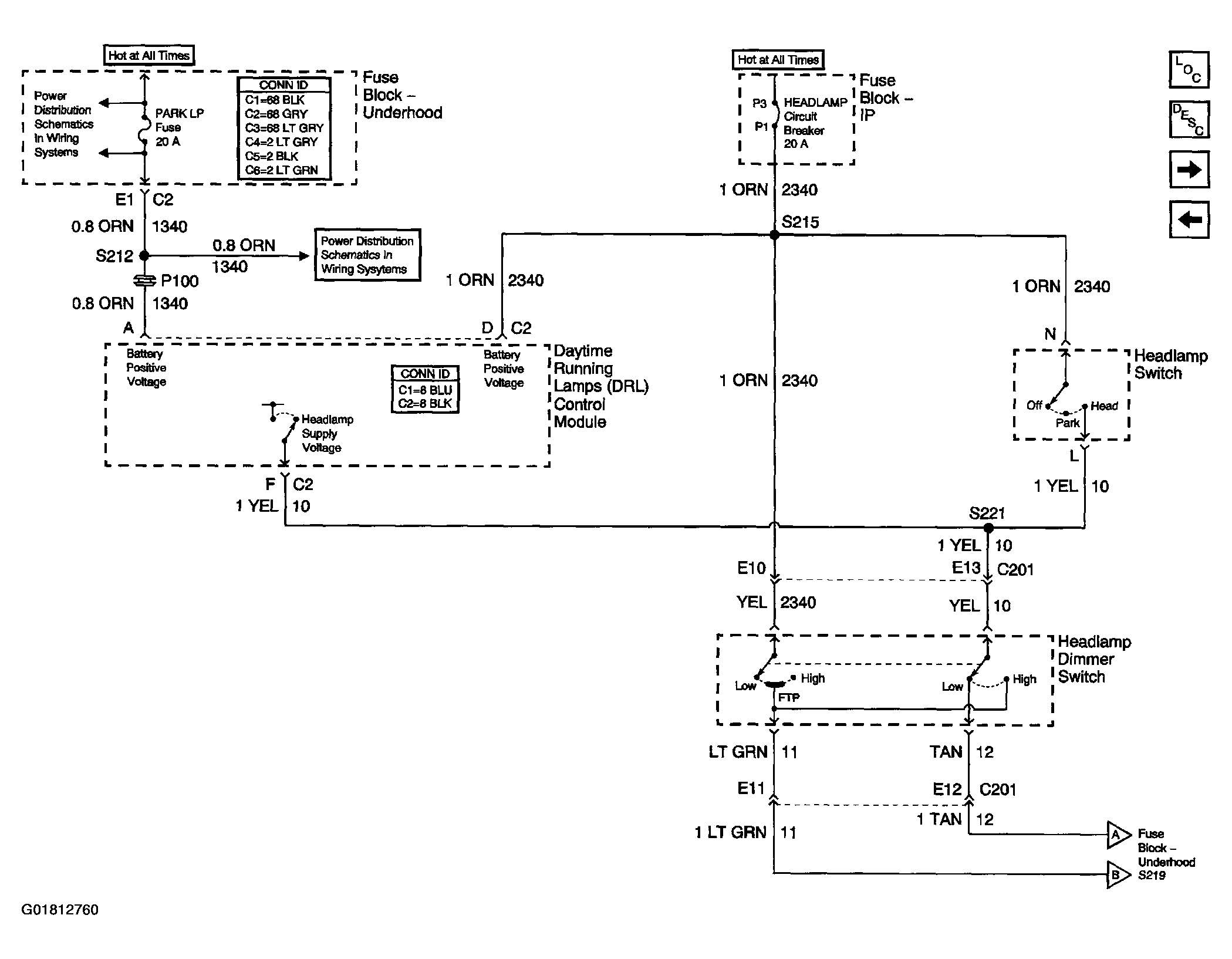

Fig 2: Headlights/Daytime Running (DRL) Schematic (Domestic) (Headlamp & IP Lamp Dimmer Switch)
G01812760Courtesy of GENERAL MOTORS CORP.

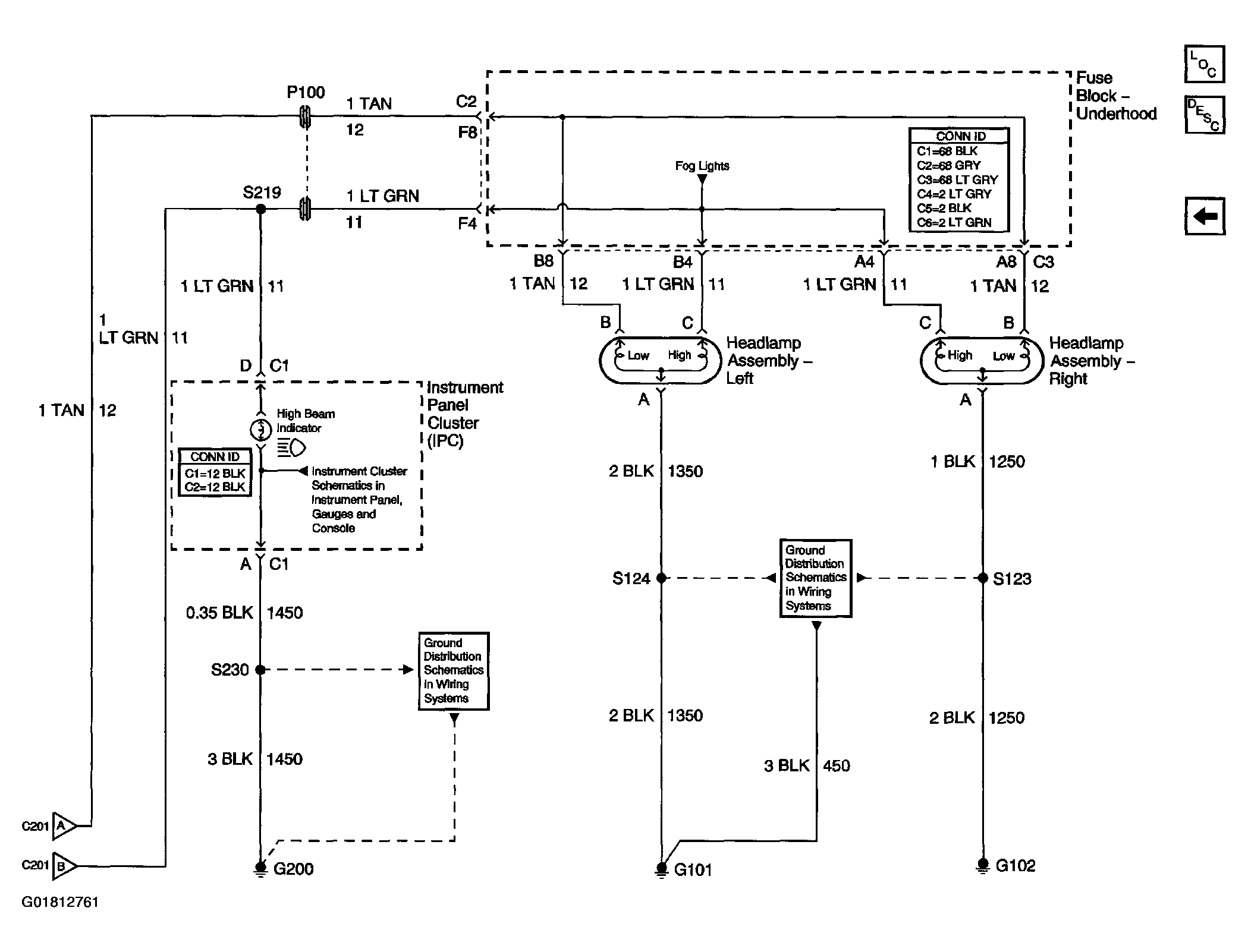

Fig 3: Headlights/Daytime Running Lights (DRL) Schematics (Domestic) (Headlamps)
G01812761Courtesy of GENERAL MOTORS CORP.
