Headlights/Daytime Running Lights (DRL) Schematic (Export) (DRL/Headlamp and IP Lamp Dimmer Switch)

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

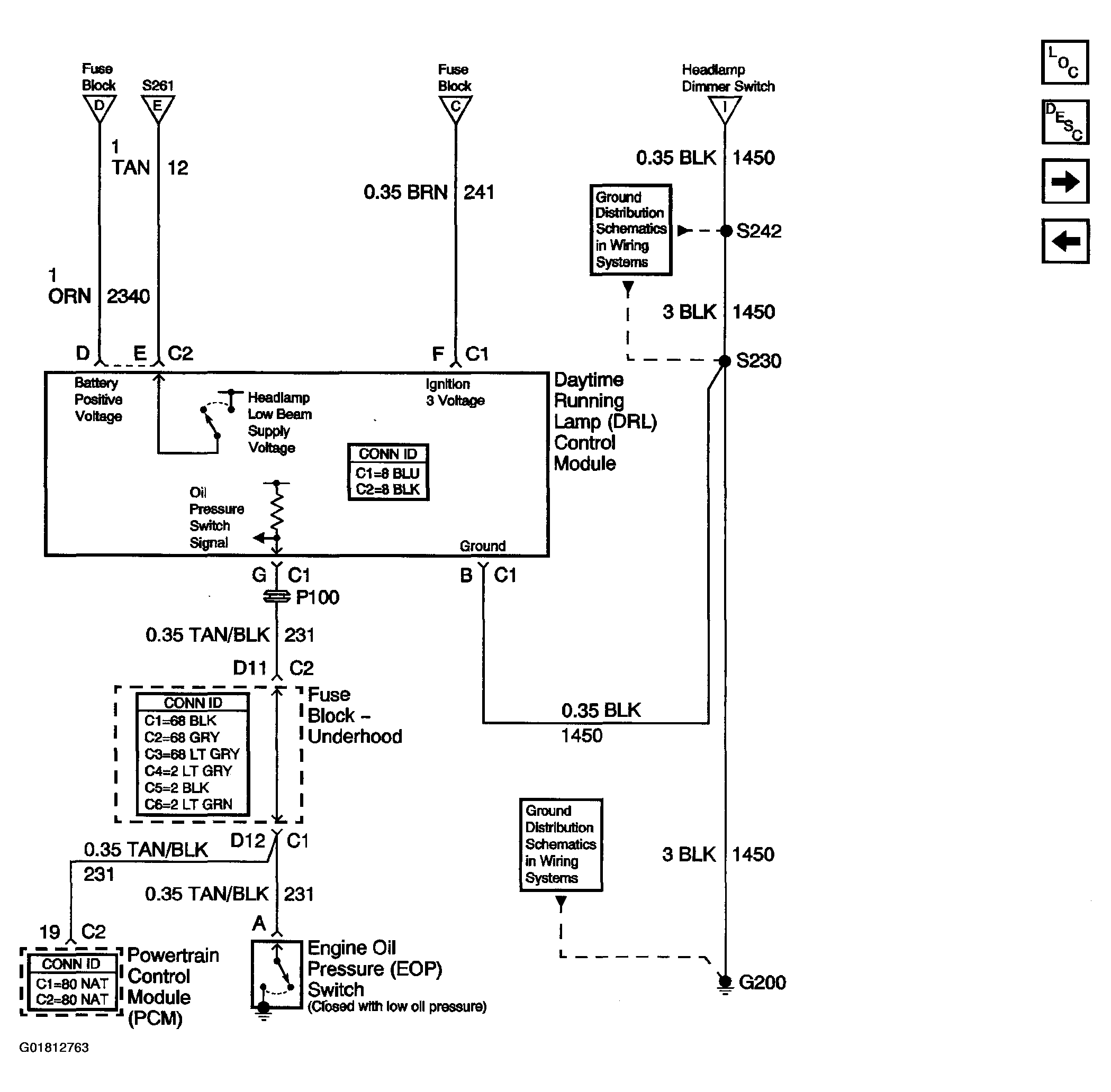

Fig 1: Headlights/Daytime Running Lights (DRL) Schematic (Export) (DRL/Headlamp & IP Lamp Dimmer Switch)

Courtesy of GENERAL MOTORS CORP.

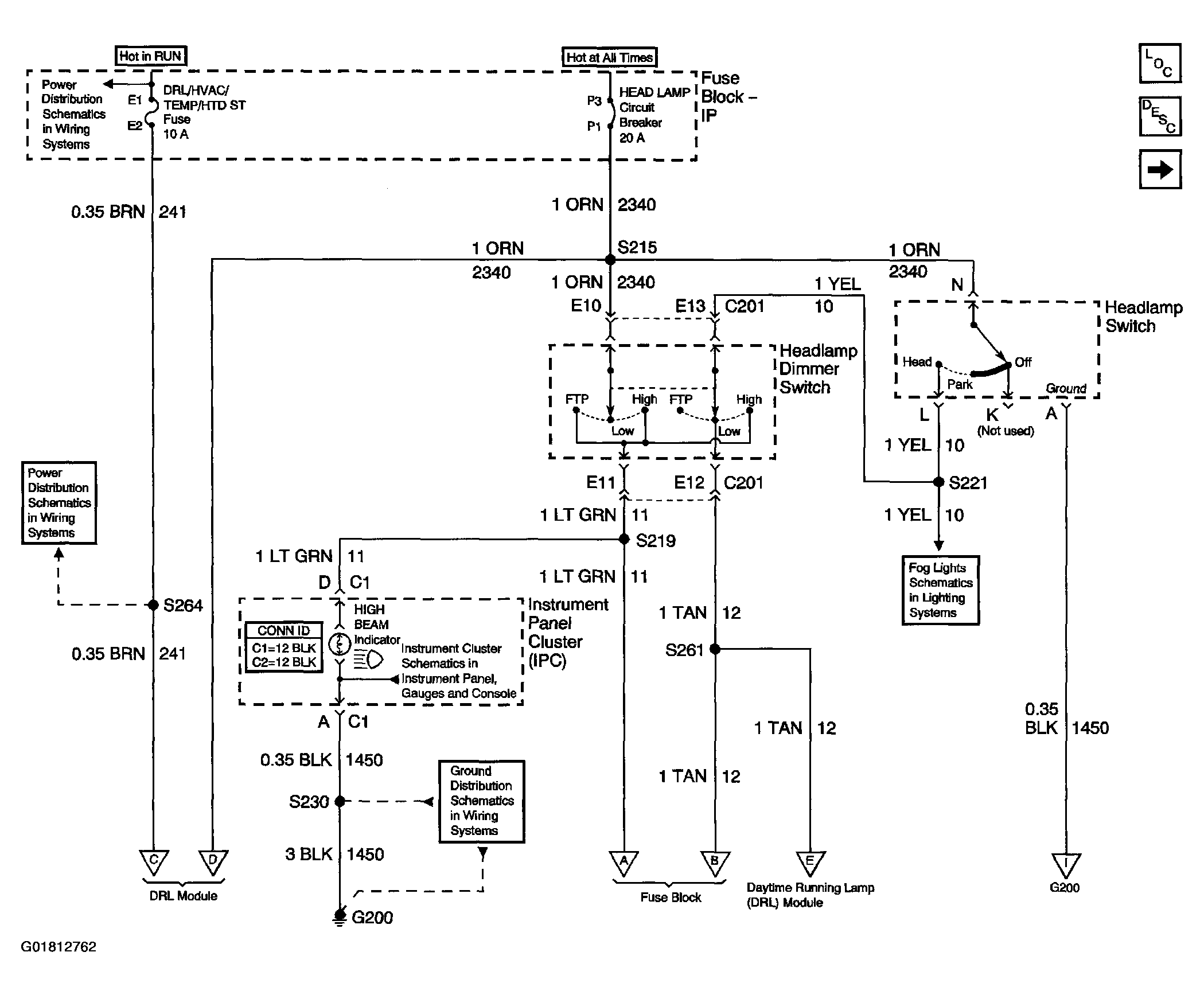

Fig 2: Headlights/Daytime Running Lights (DRL) Schematic (Export) (Daytime Running Lamp Control Module)

Courtesy of GENERAL MOTORS CORP.

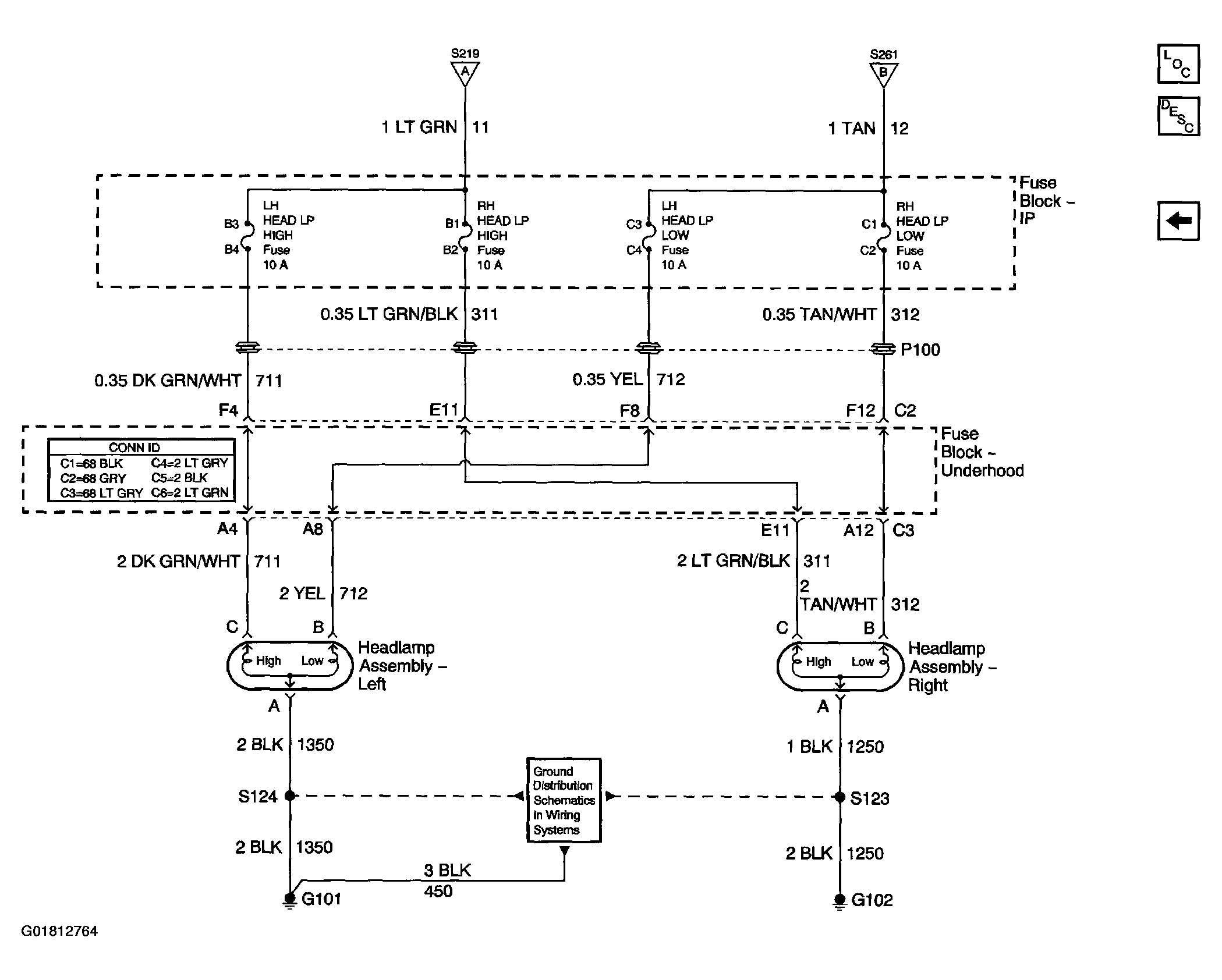

Fig 3: Headlights/Daytime Running Lights (DRL) Schematics (Export) (Headlights)

Courtesy of GENERAL MOTORS CORP.
