Fog Lights Schematics (Export) (Rear Fog Lights)

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

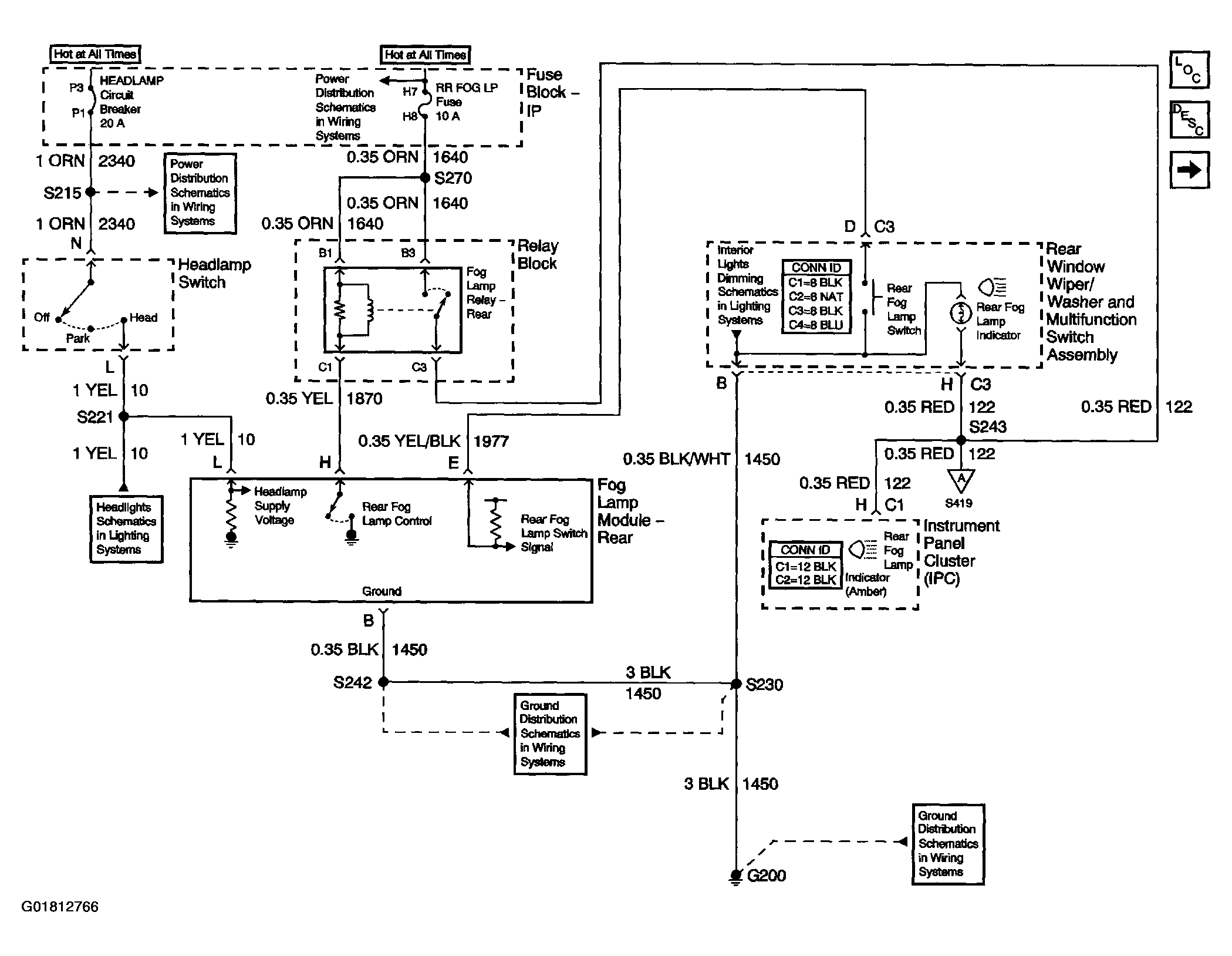

Fig 1: Fog Lights Schematics (Export) (Rear Fog Lights) (1 Of 2)
G01812766Courtesy of GENERAL MOTORS CORP.

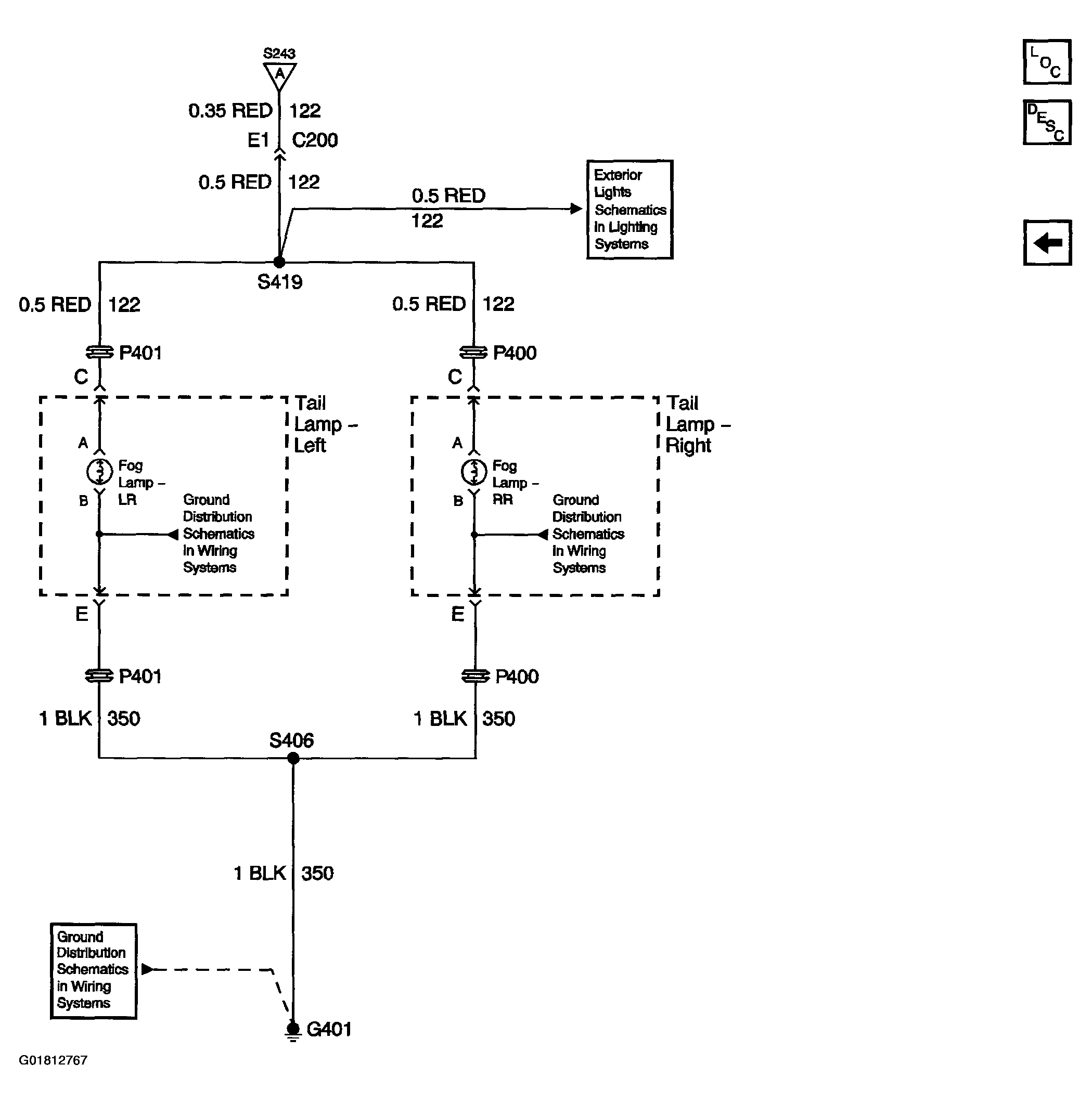

Fig 2: Fog Lights Schematics (Export) (Rear Fog Lights) (2 Of 2)
G01812767Courtesy of GENERAL MOTORS CORP.
