Exterior Lights Schematics (Export) (Hazard Lamp/Turn Signal Flasher and Turn Signal Switch)

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

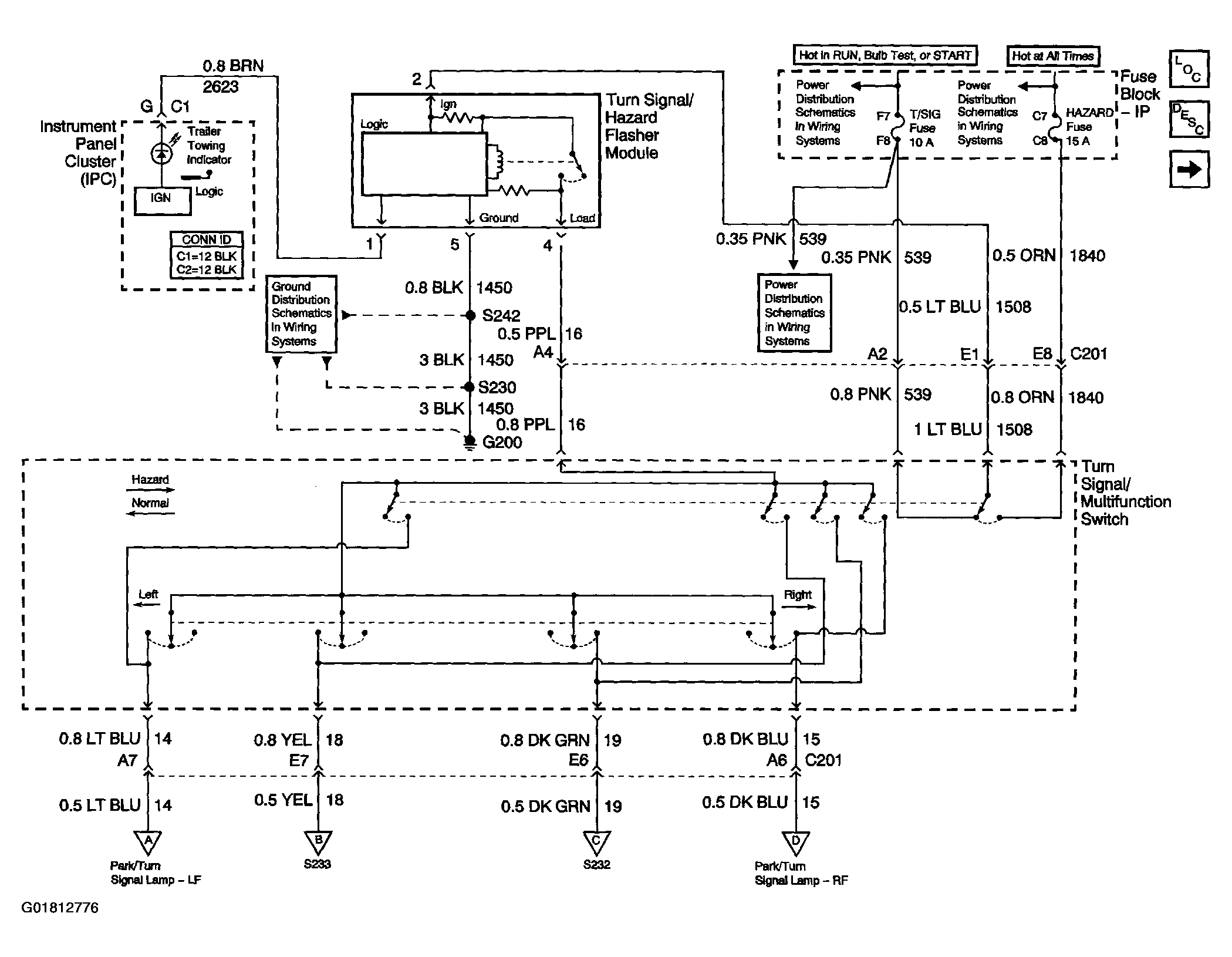

Fig 1: Exterior Lights Schematics (Export) (Hazard Lamp/Turn Signal Flasher & Turn Signal Switch)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Exterior Lights Schematics (Export) (Turn & Side Marker Lamps)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Exterior Lights Schematics (Export) (Headlamp Position Lamps/License Lamps)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Exterior Lights Schematics (Export) (Tail Lamps)

Courtesy of GENERAL MOTORS CORP.

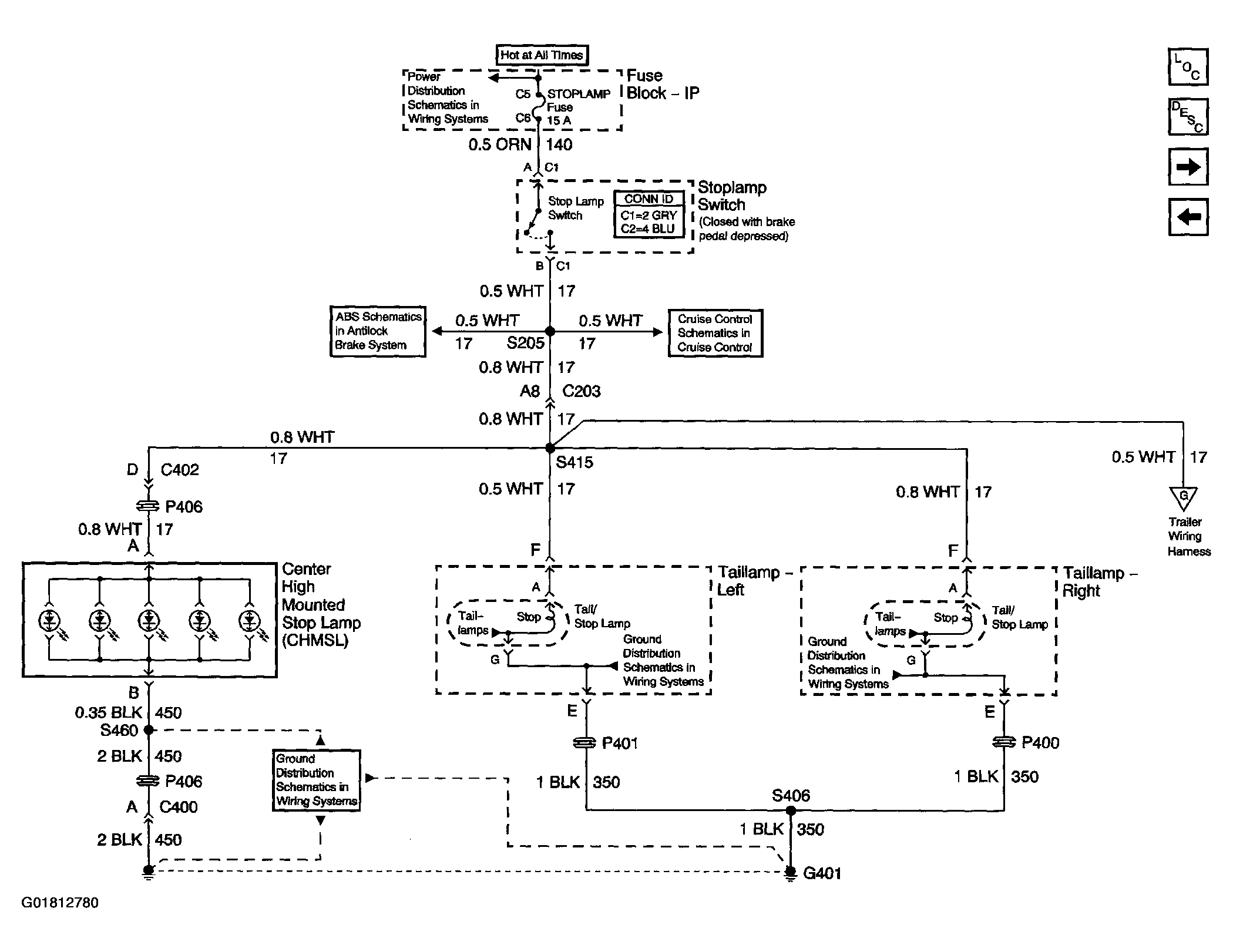

Fig 5: Exterior Lights Schematics (Export) (Stop Lamps & CHMSL)

Courtesy of GENERAL MOTORS CORP.

Fig 6: Exterior Lights Schematics (Export) (Trailer Wiring, Power & Ground)

Courtesy of GENERAL MOTORS CORP.

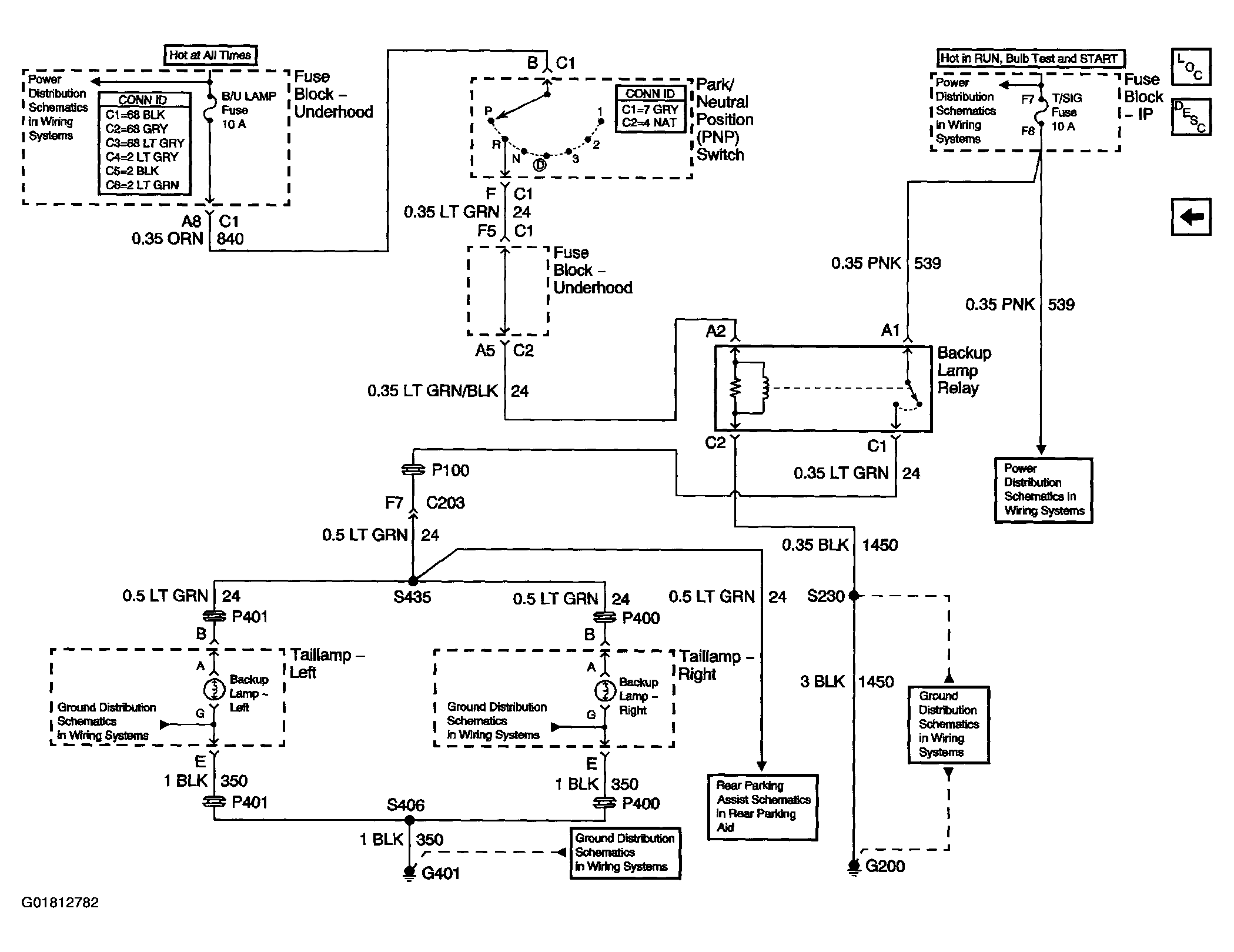

Fig 7: Exterior Lights Schematics (Export) (Backup Lights)

Courtesy of GENERAL MOTORS CORP.
