Exterior Lights Schematics (Domestic) (Hazard Lamp/Turn Signal Flasher and Turn Signal Switch)

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

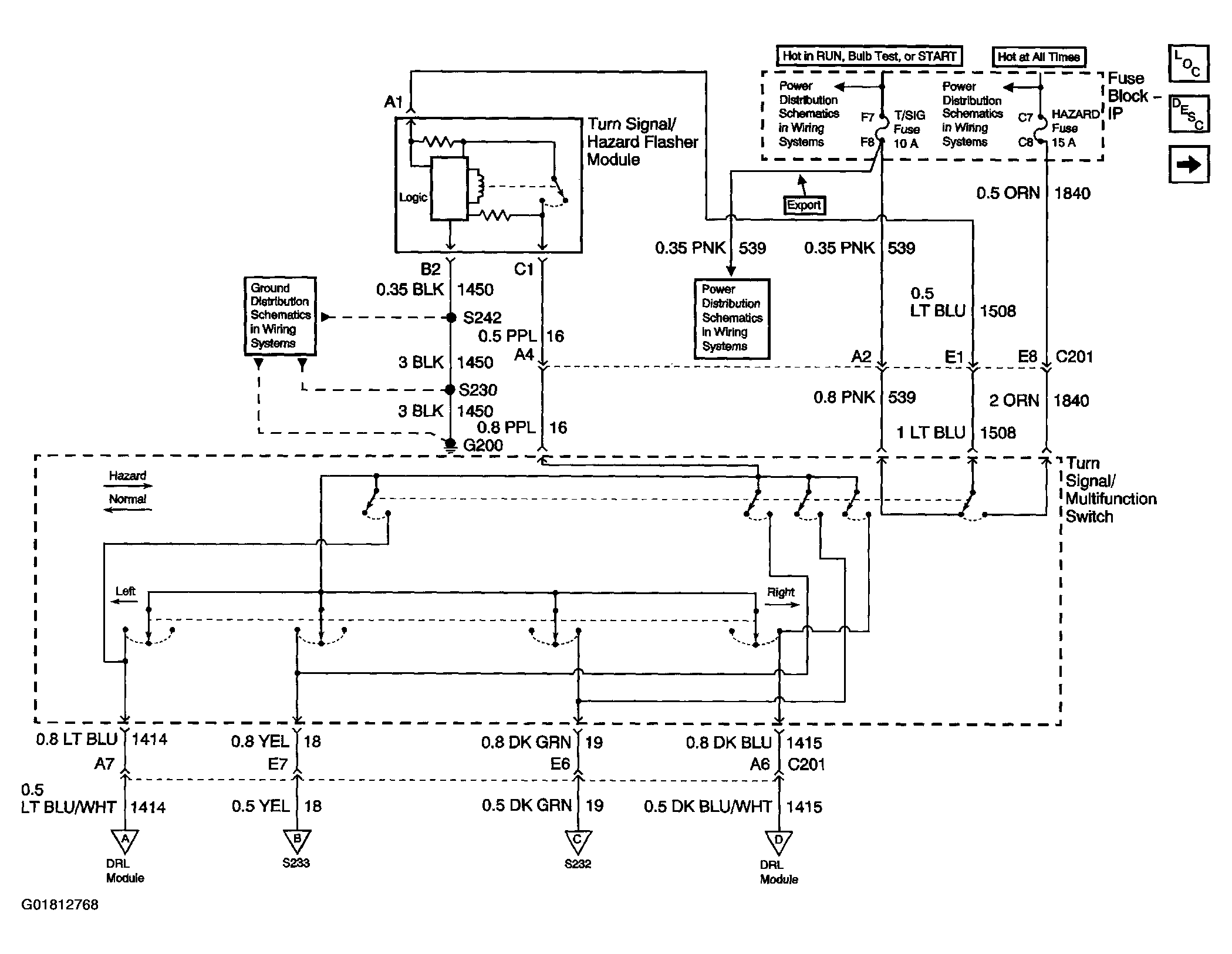

Fig 1: Exterior Lights Schematics (Domestic) (Hazard Lamp/Turn Signal Flasher & Turn Signal Switch)

Courtesy of GENERAL MOTORS CORP.

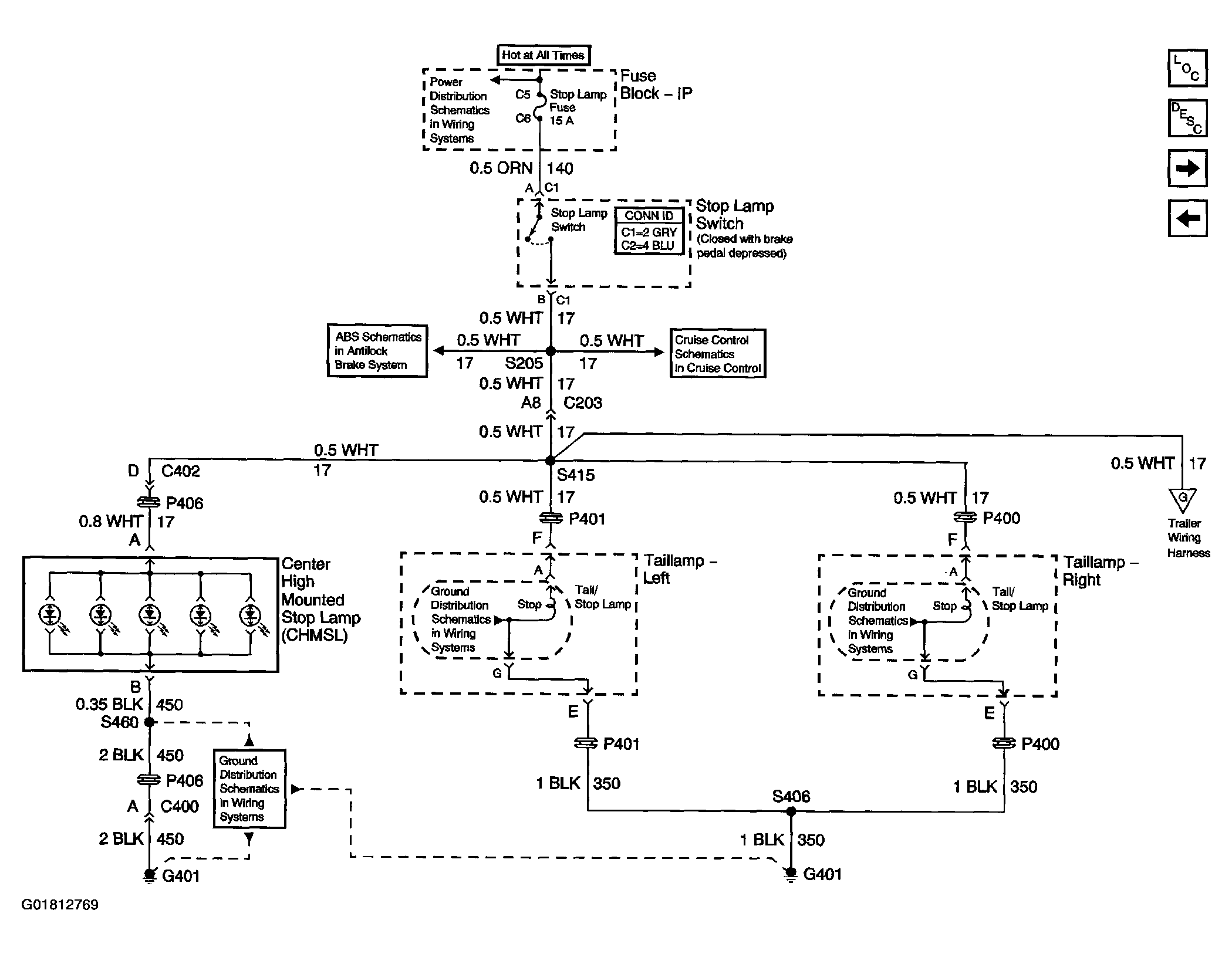

Fig 2: Exterior Lights Schematics (Domestic) (Stop Lamp Switch & Center High Mounted Stop Lamp)

Courtesy of GENERAL MOTORS CORP.

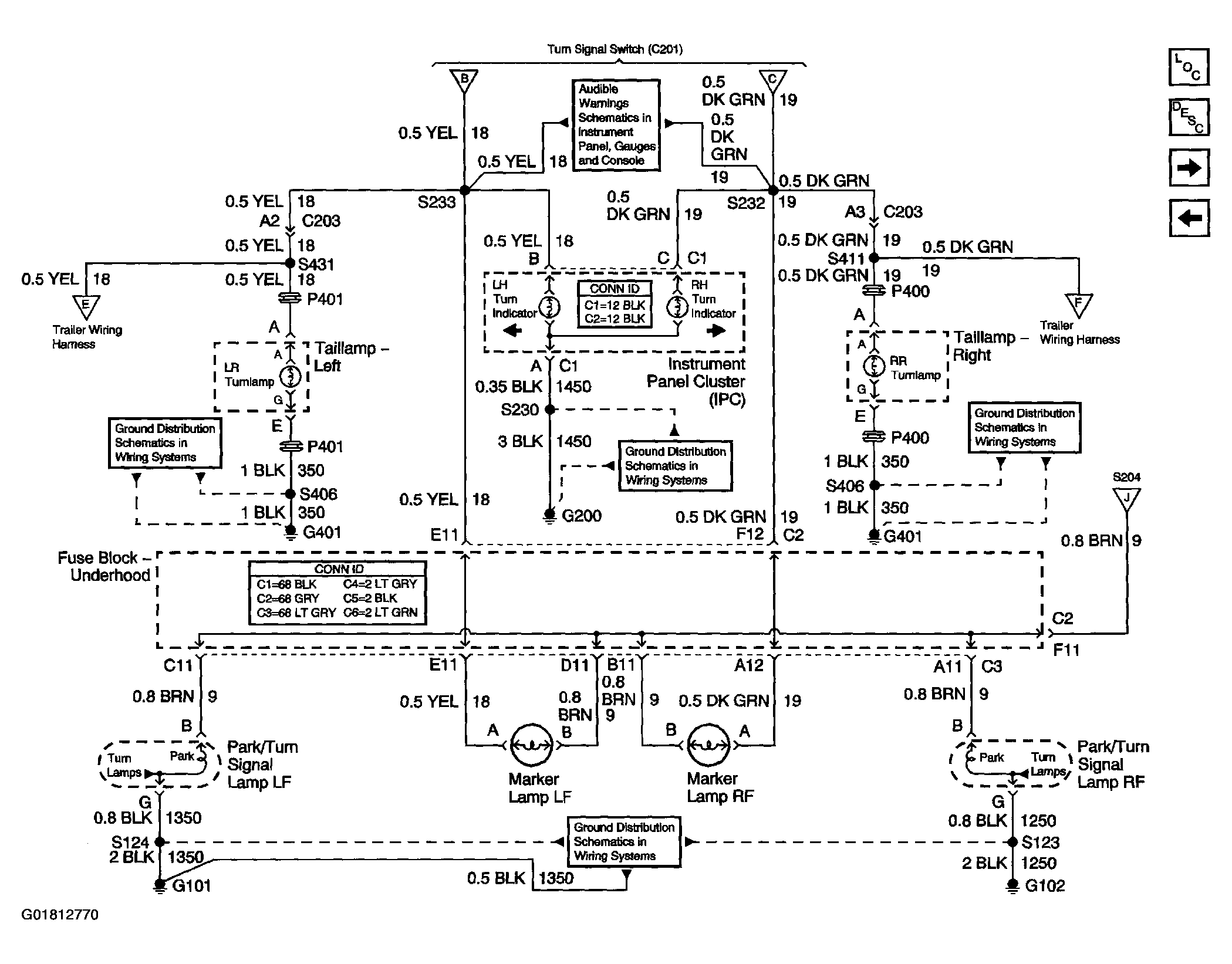

Fig 3: Exterior Lights Schematics (Domestic) (Tail Lamps, Side Markers & Park/Turn Lamps)

Courtesy of GENERAL MOTORS CORP.

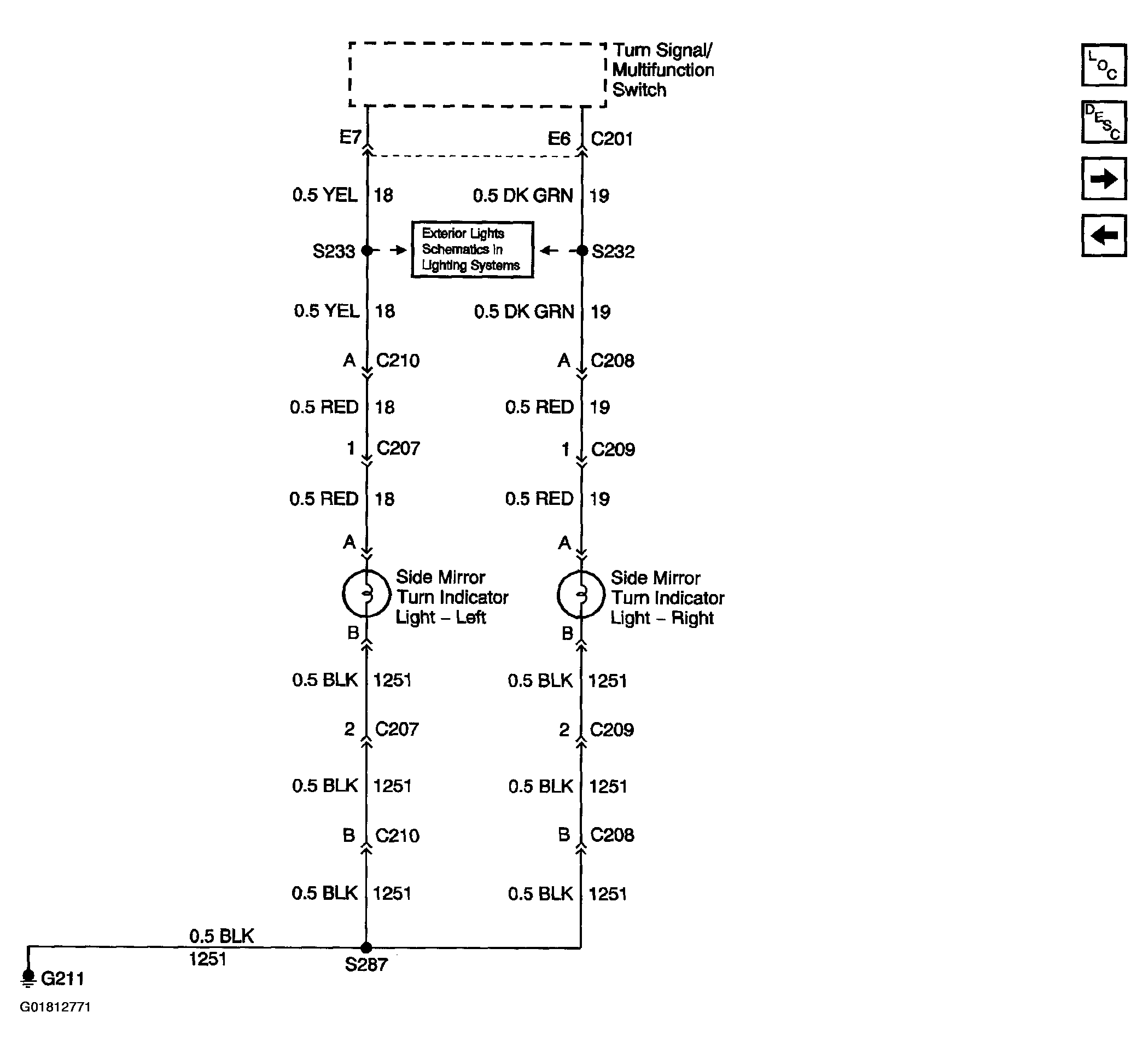

Fig 4: Exterior Lights Schematics (Domestic) (Sid Mirror Turn Indicator Lights)

Courtesy of GENERAL MOTORS CORP.

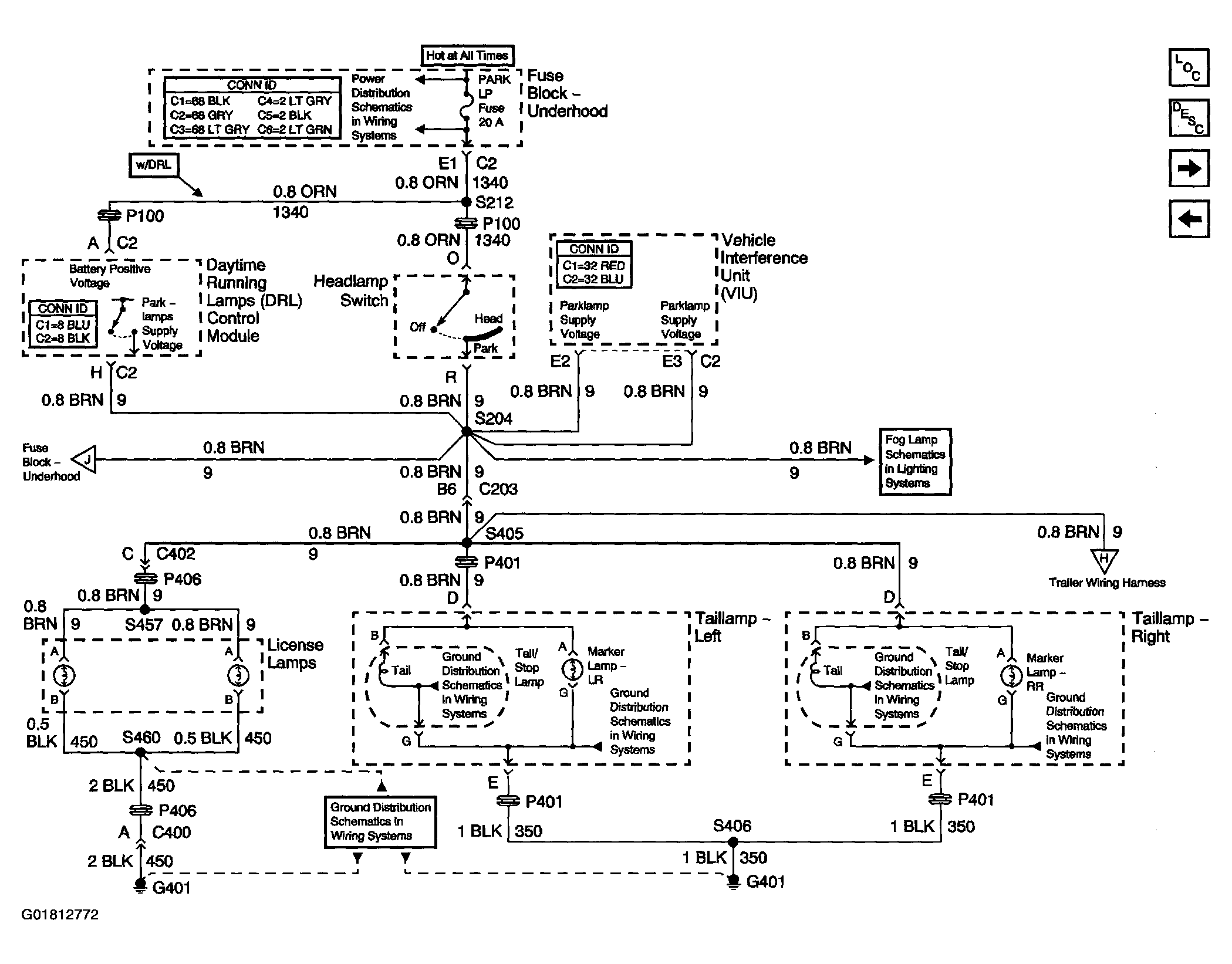

Fig 5: Exterior Lights Schematics (Domestic) (License Lamps & Relay Center)

Courtesy of GENERAL MOTORS CORP.

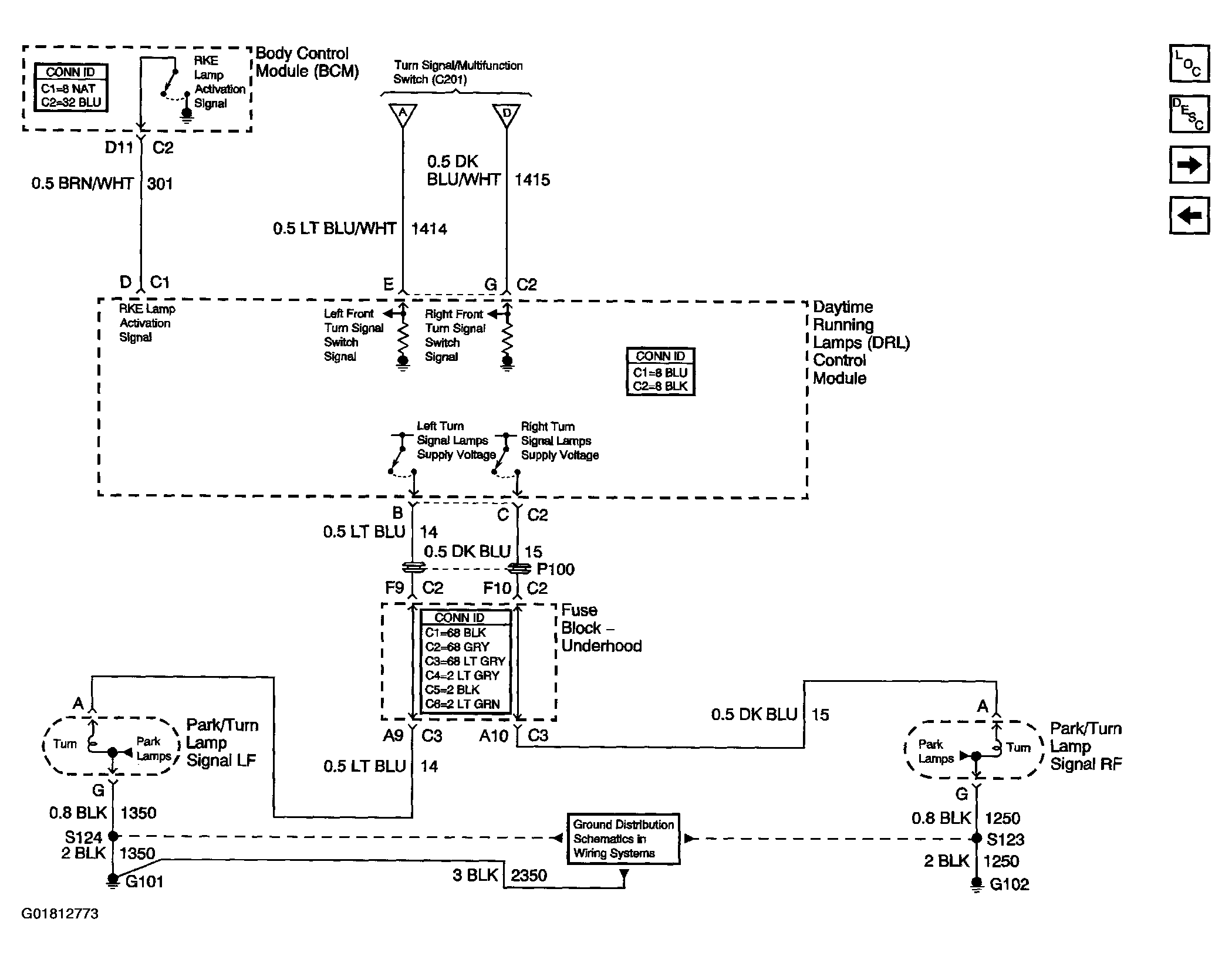

Fig 6: Exterior Lights Schematics (Domestic) (DRL Ambient Light Sensor & DRL Control Module)

Courtesy of GENERAL MOTORS CORP.

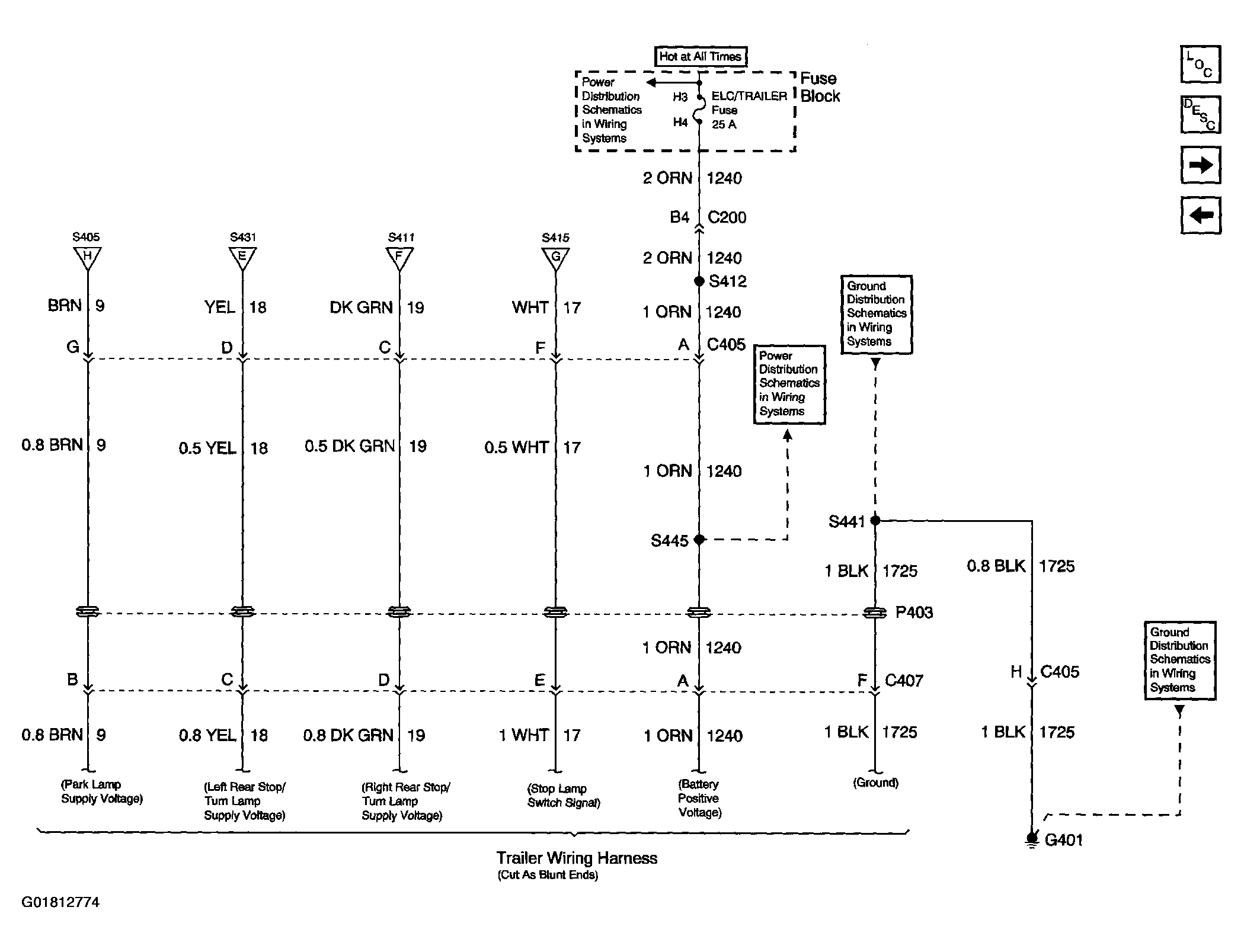

Fig 7: Exterior Lights Schematics (Domestic) (Trailer Wiring, Power & Ground)

Courtesy of GENERAL MOTORS CORP.

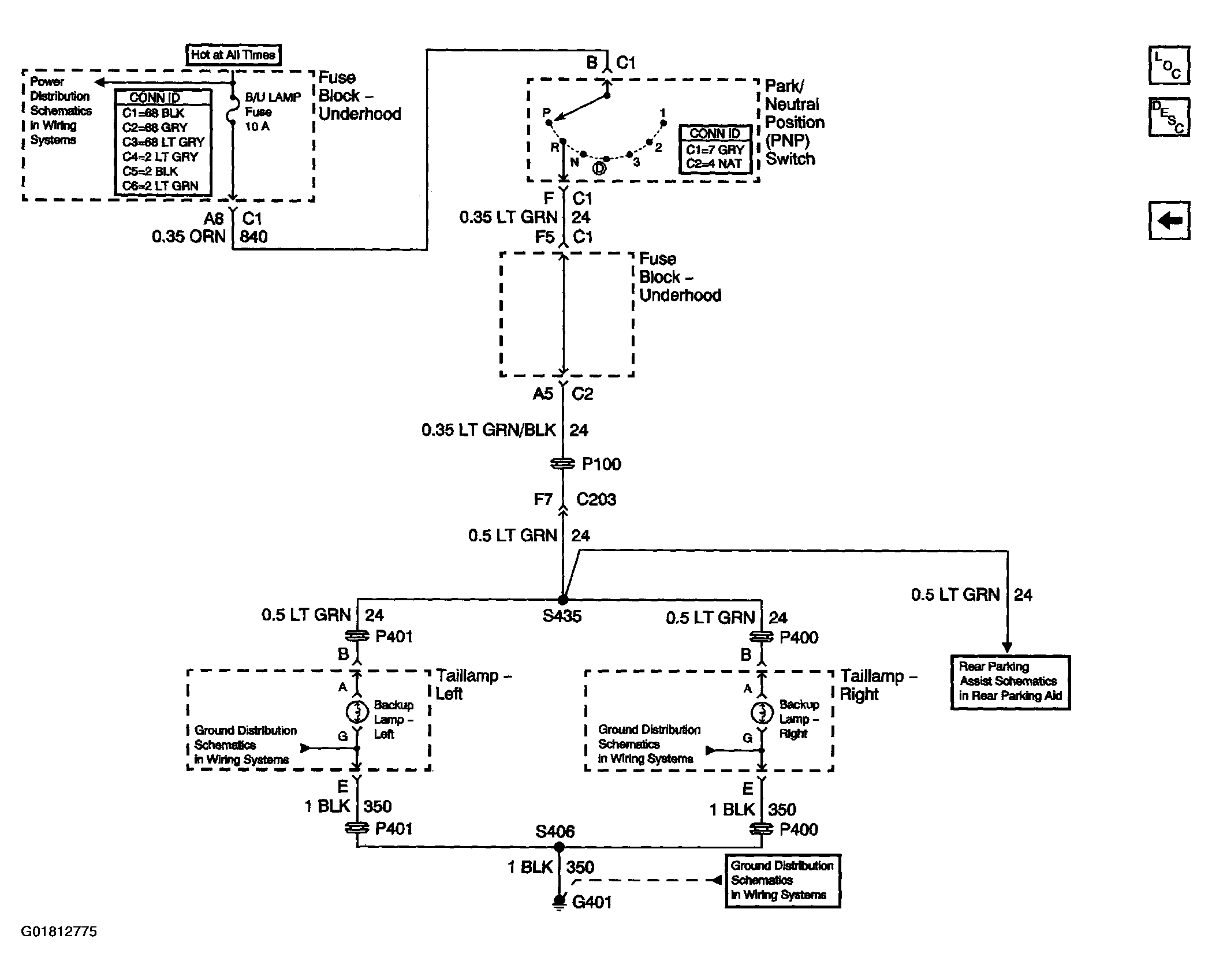

Fig 8: Exterior Lights Schematics (Domestic) (Backup Lights)

Courtesy of GENERAL MOTORS CORP.
