Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use a small, flat-bladed tool in order to remove the lens carefully from the bottom of the lens.
  2. Use a small, flat-bladed tool in order to remove the bulb from the socket.

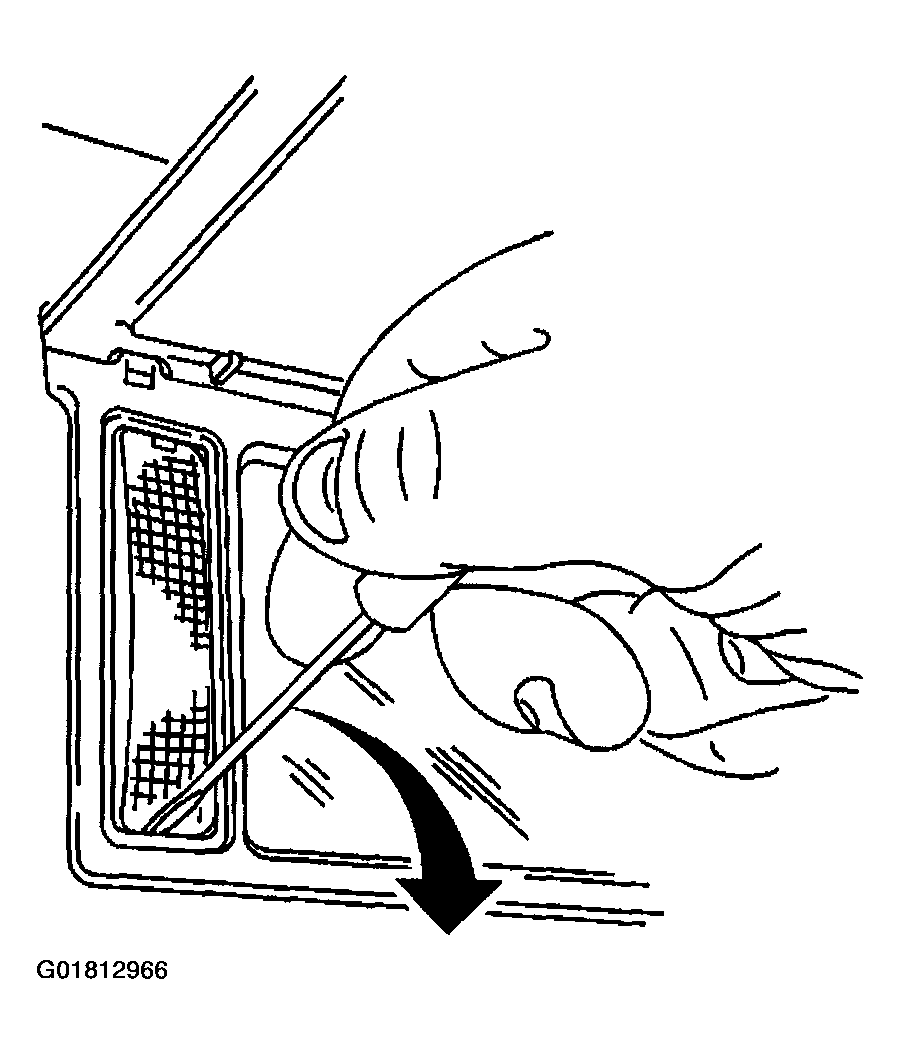

    Fig 1: Removing Vanity Mirror Lamp Bulb
    G01812966Courtesy of GENERAL MOTORS CORP.
