Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

The back-up lamp and rear fog lamp (Export vehicle only) are part of the tail lamp assembly. Use this replacement procedure for both.

  1. Open the liftgate.
  2. Remove the screws from the tail lamp.
  3. Pull the tail lamp from the body.
  4. Disconnect the electrical connector.

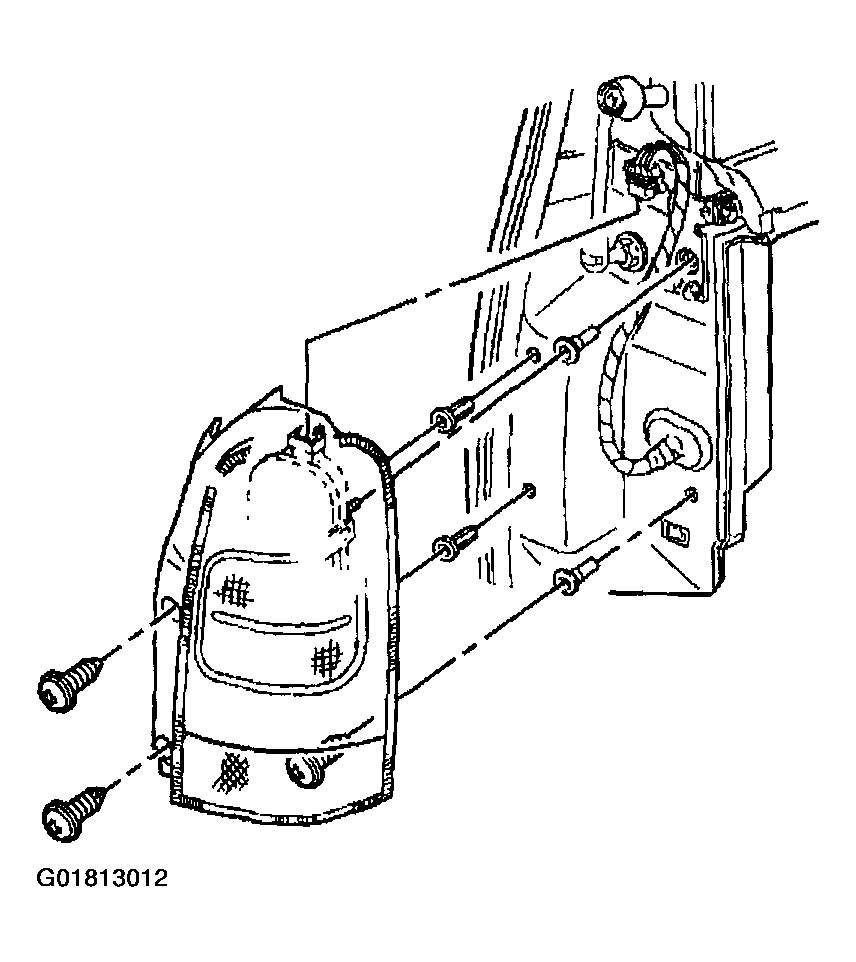

    Fig 1: Removing Screws & Tail Lamp
    G01813012Courtesy of GENERAL MOTORS CORP.
