Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert a small, flat-bladed tool between repeater lamp and vehicle front fender.
  2. Use the small, flat-bladed tool to compress the repeater lamp retaining tab.
  3. Remove the repeater lamp from the front fender.
  4. Disconnect the electrical connector.
  5. Remove the repeater lamp from the vehicle.

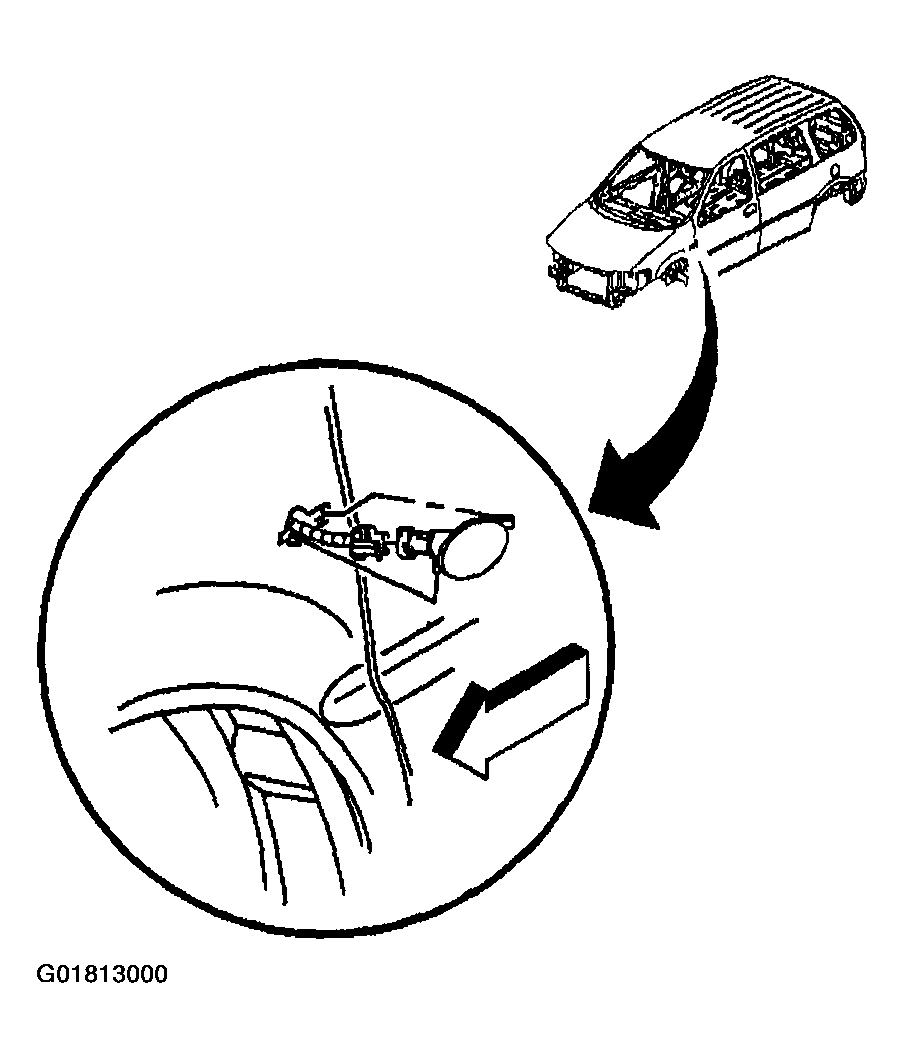

    Fig 1: Removing Repeater Lamp From Vehicle
    G01813000Courtesy of GENERAL MOTORS CORP.
