Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert a small, flat-bladed tool between the switch block/reading lamp housing and the overhead console.
  2. Press inward and down in order to release the switch block/reading lamp housing from the overhead console.

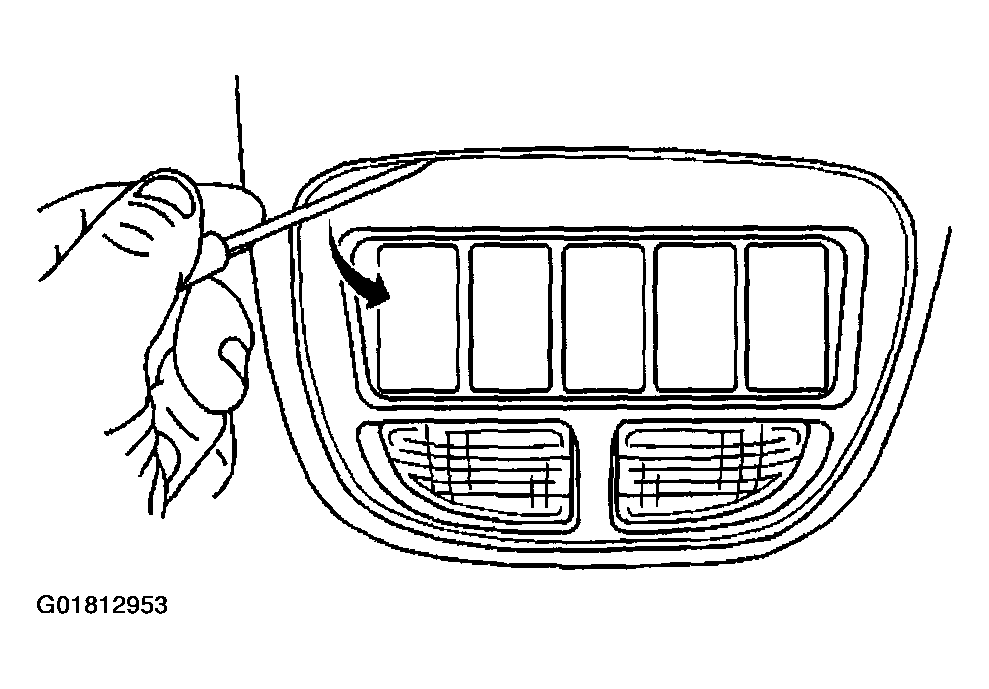

    Fig 1: Releasing Switch Block/Reading Lamp Housing & Overhead Console
    G01812953Courtesy of GENERAL MOTORS CORP.
  3. Use a small, flat-bladed tool to push one of the tabs on the reading lamp socket to release the socket from the housing.

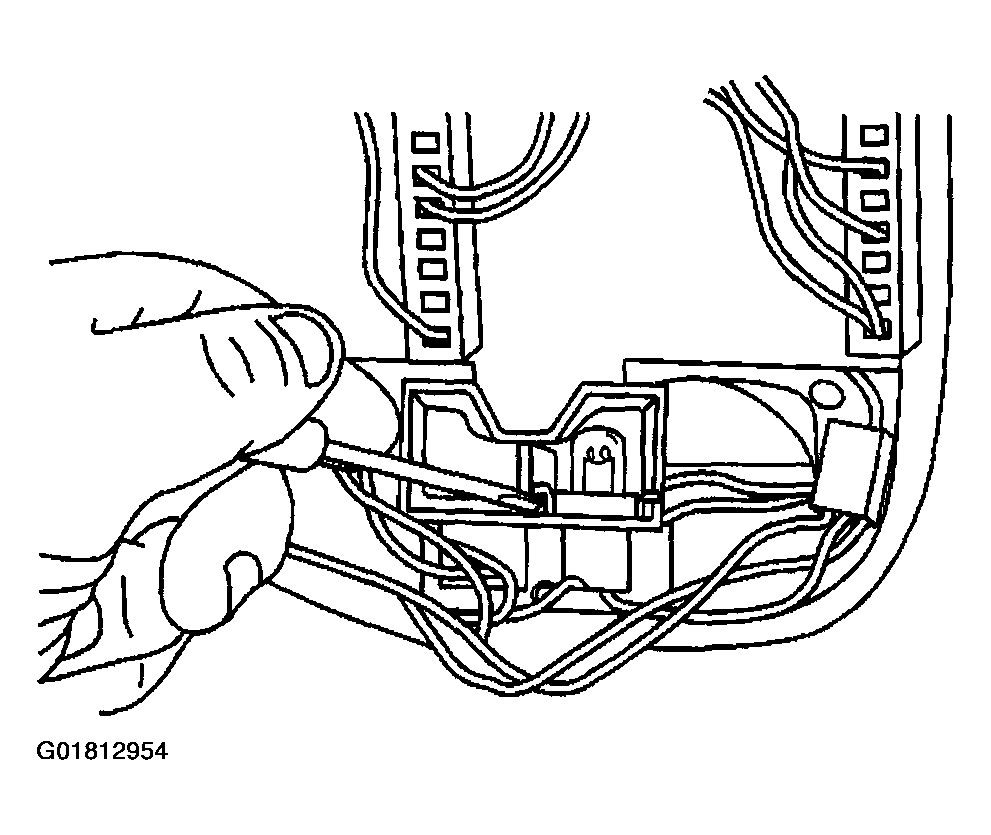

    Fig 2: Push One Of Tabs On Reading Lamp Socket Using A Flat-Bladed Tool
    G01812954Courtesy of GENERAL MOTORS CORP.
  4. Remove the reading lamp socket from the housing.

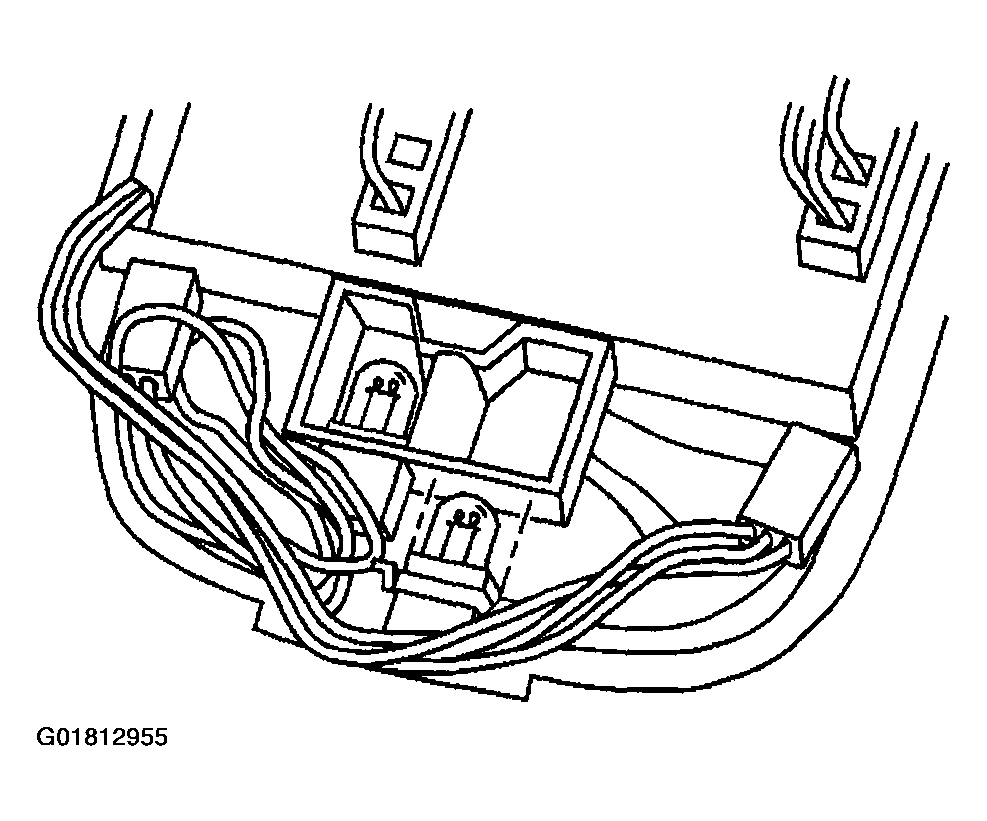

    Fig 3: Removing Reading Lamp Socket
    G01812955Courtesy of GENERAL MOTORS CORP.
  5. Pull the bulb from the socket.

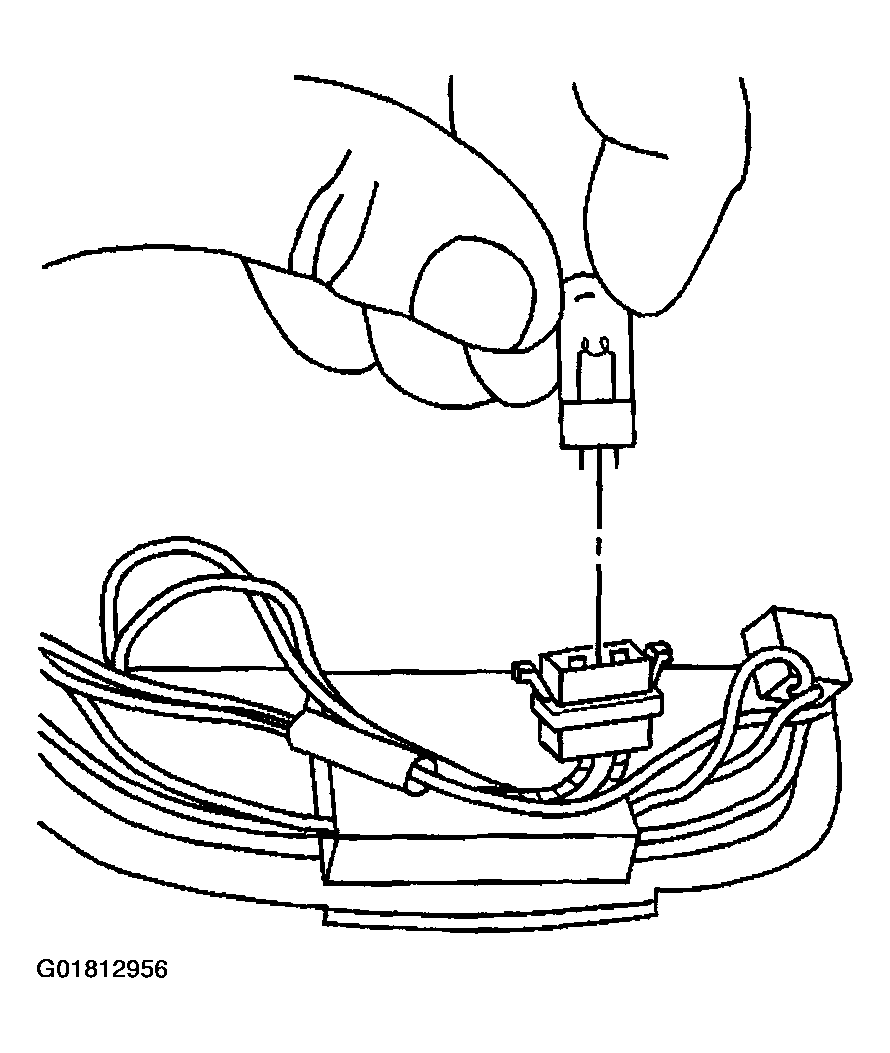

Fig 4: Pull Bulb From Socket
G01812956Courtesy of GENERAL MOTORS CORP.
