Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press the bulb into the bulb socket.
  2. Push the lamp socket into the housing.

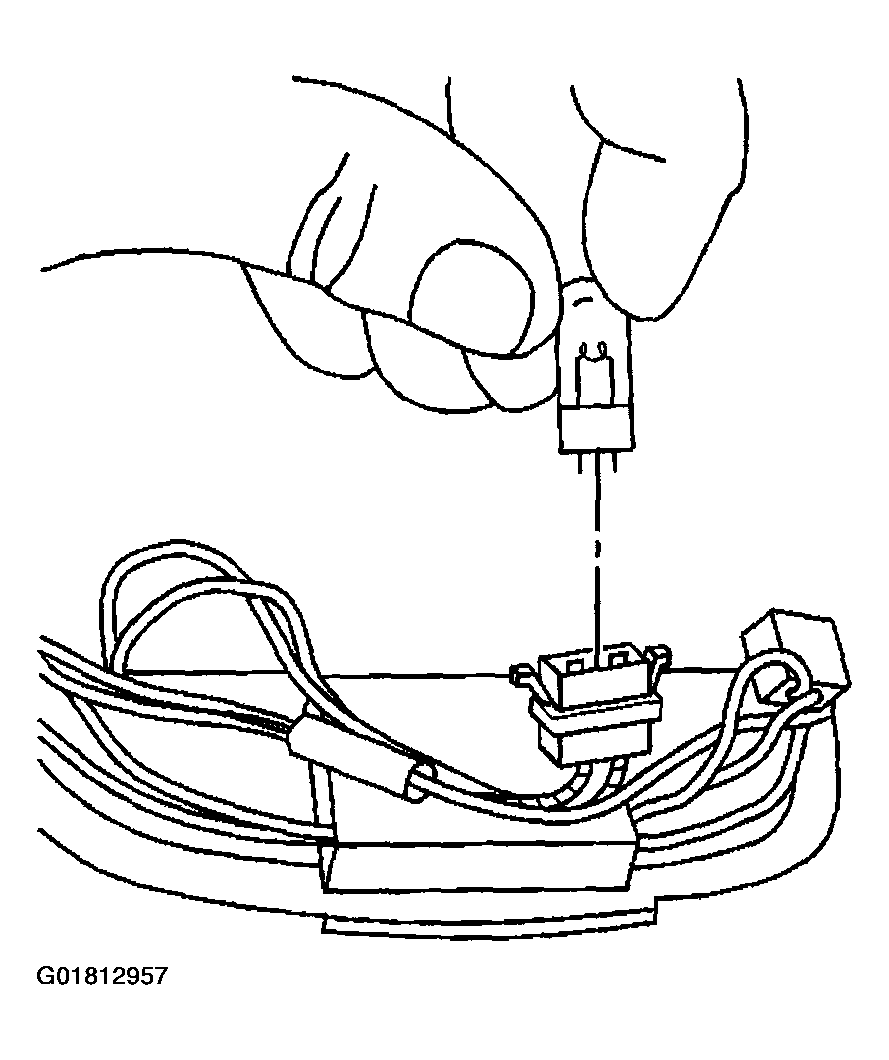

    Fig 1: Installing Reading Lamp Socket
    G01812957Courtesy of GENERAL MOTORS CORP.
  3. Align the forward tab on the switch block/reading lamp housing into the slot in the front of the overhead console.
  4. Align the rear locking tabs to the overhead console.
  5. Press up on the switch block/reading lamp housing in order to snap them into the trim ring.

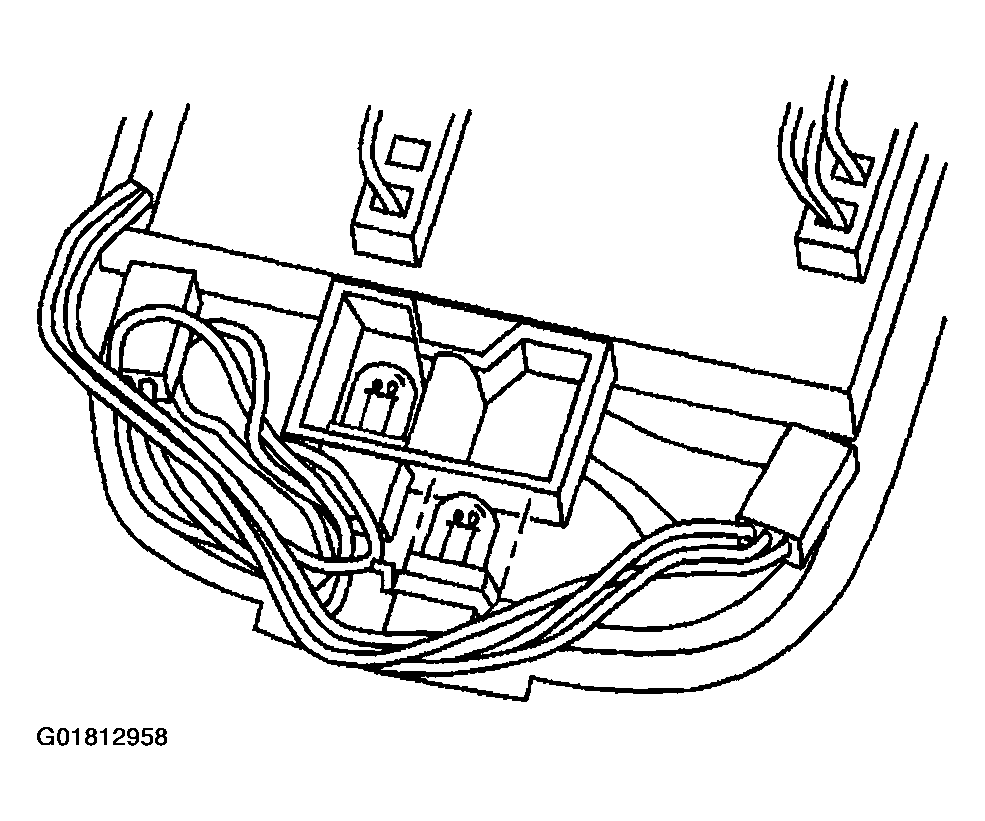

    Fig 2: Press Bulb Into Bulb Socket
    G01812958Courtesy of GENERAL MOTORS CORP.
