Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open and support the hood.
  2. Remove the wing nut from the headlamp bracket.
  3. Remove the front park/turn signal/sidemarker lamp from the fender.
  4. Press the tab while turning counterclockwise to remove the bulb socket from the front park/turn signal/sidemarker lamp.
  5. Pull the bulb from the socket.

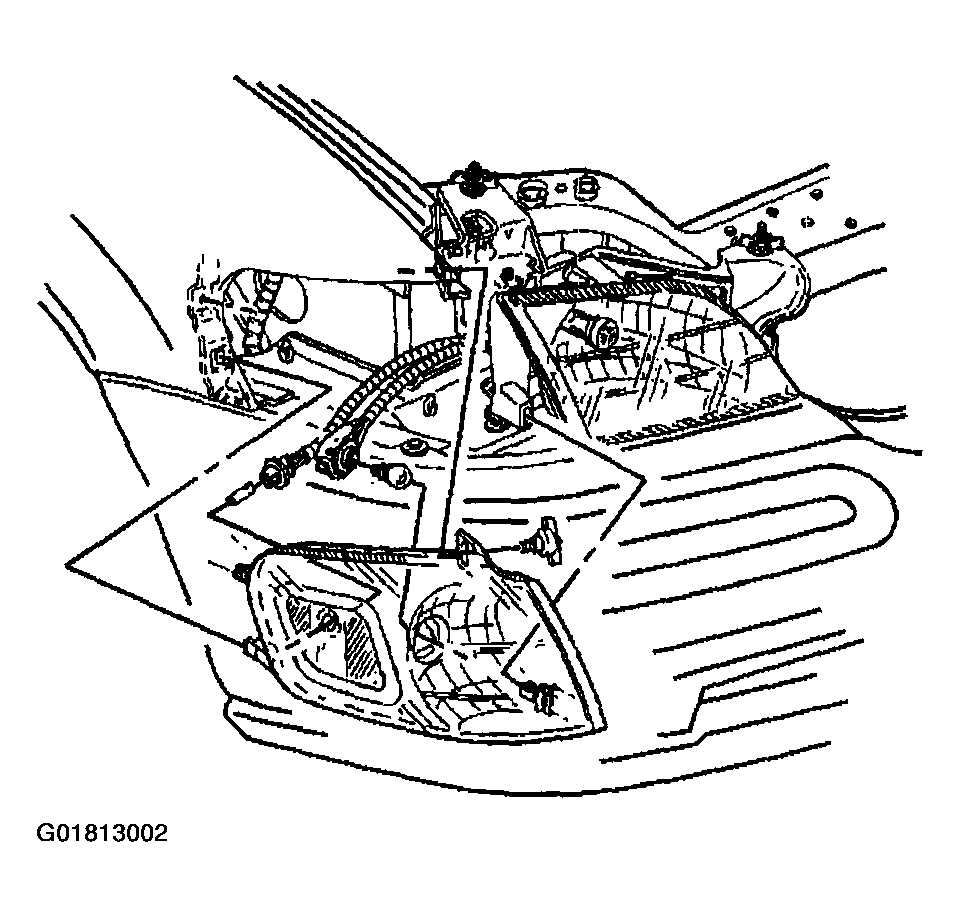

    Fig 1: Removing Wing Nut & Headlamp Bracket
    G01813002Courtesy of GENERAL MOTORS CORP.
