Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press the bulb into the socket.
  2. Install the socket to the front park/turn signal/sidemarker lamp.
  3. Position the front park/turn signal/sidemarker lamp to the fender:
    1. 3.1. Locate the tabs into the fender.
    2. 3.2. Install the tab into the headlamp bracket.
  4. Install the wing nut to headlamp bracket and hand tighten.
  5. Close the hood.

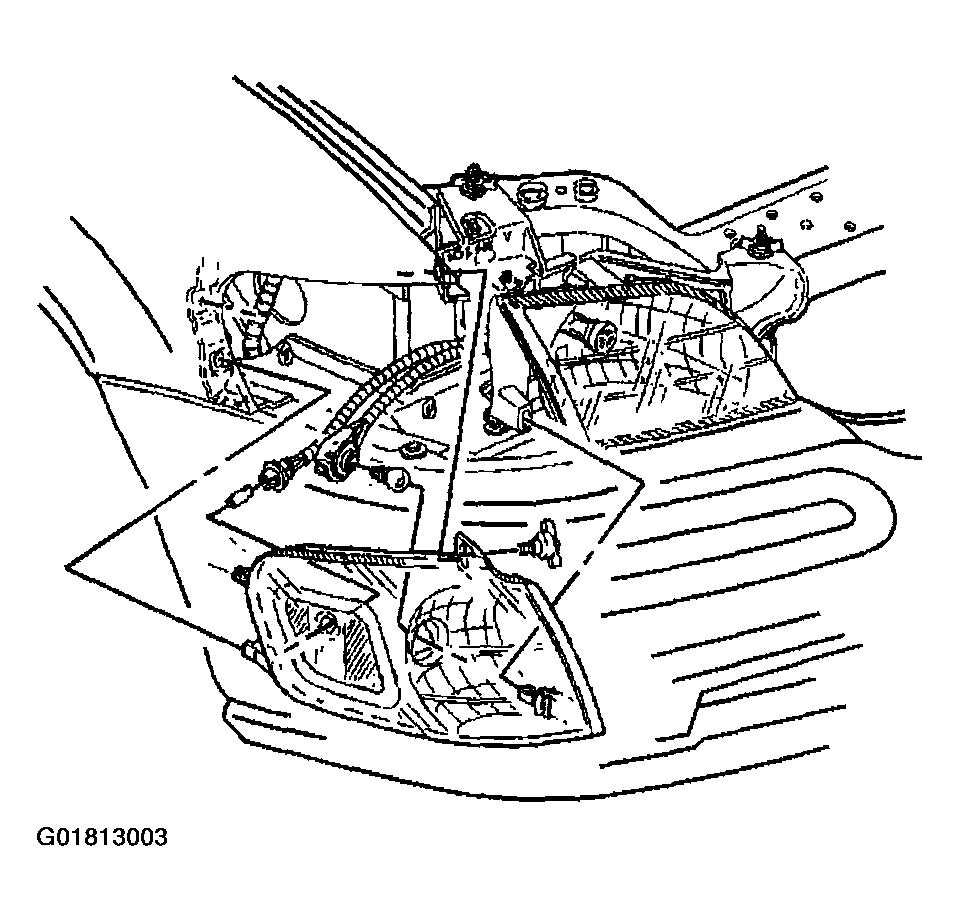

    Fig 1: Installing Wing Nut & Headlamp Bracket
    G01813003Courtesy of GENERAL MOTORS CORP.
