Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws from the license lamp lens.
  2. Remove the license lamp lens from the liftgate.
  3. Pull the bulb from the license lamp socket.

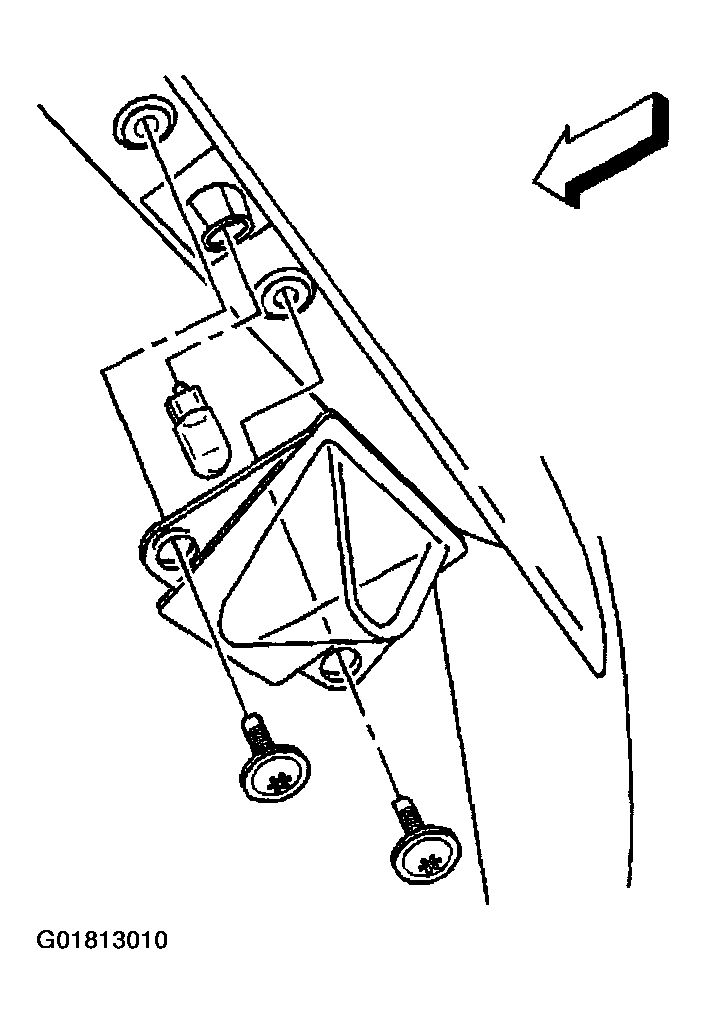

    Fig 1: Removing Screws & License Lamp Lens
    G01813010Courtesy of GENERAL MOTORS CORP.
