Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the compartment door.
  2. Pry the compartment lamp outward in order to remove the compartment lamp.
  3. Remove the bulb from the socket.
  4. Disconnect the electrical connector.

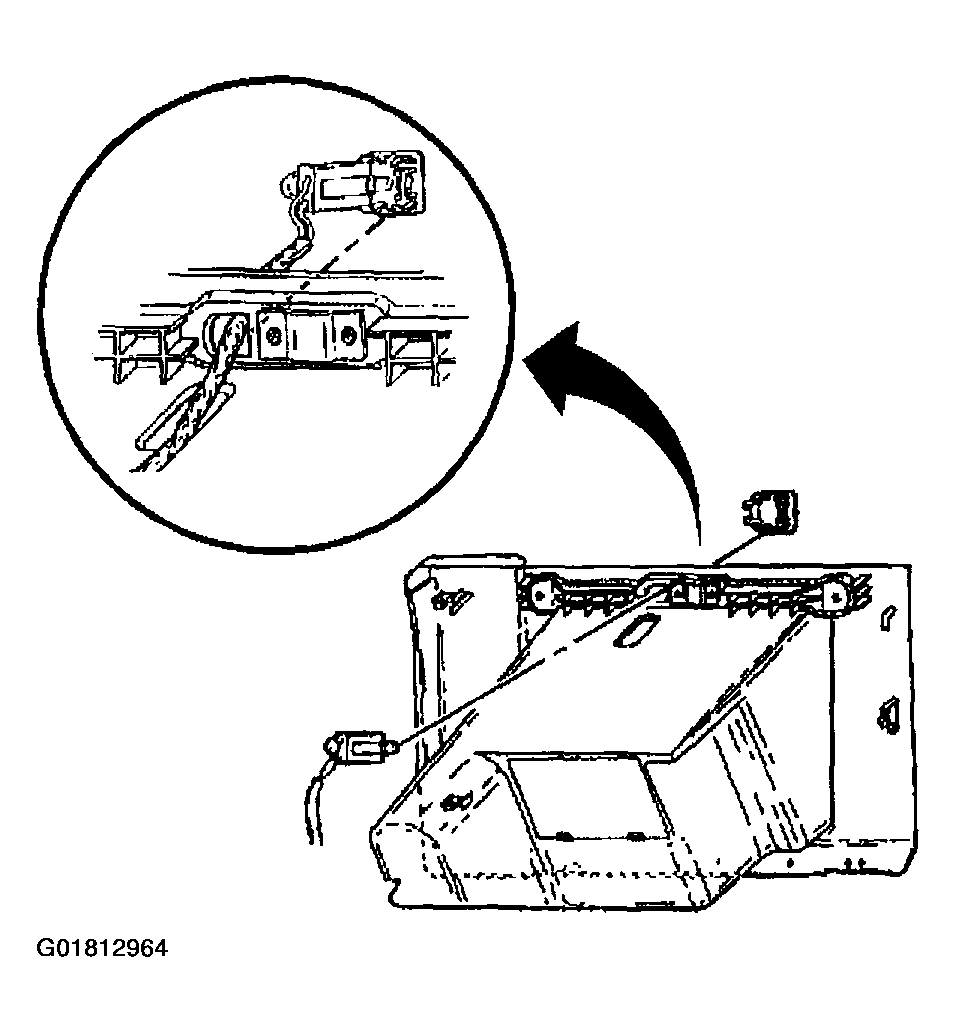

    Fig 1: Removing Bulb From Socket
    G01812964Courtesy of GENERAL MOTORS CORP.
