Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Important:  The high-mounted stop lamp has a LED circuit board which is not serviced as a separate part. The entire high-mounted stoplamp must be replaced if the LED circuit board fails.

  1. Remove the screws from the high-mounted stop lamp.
  2. Remove the high-mounted stoplamp from the body.
  3. Disconnect the electrical connector.

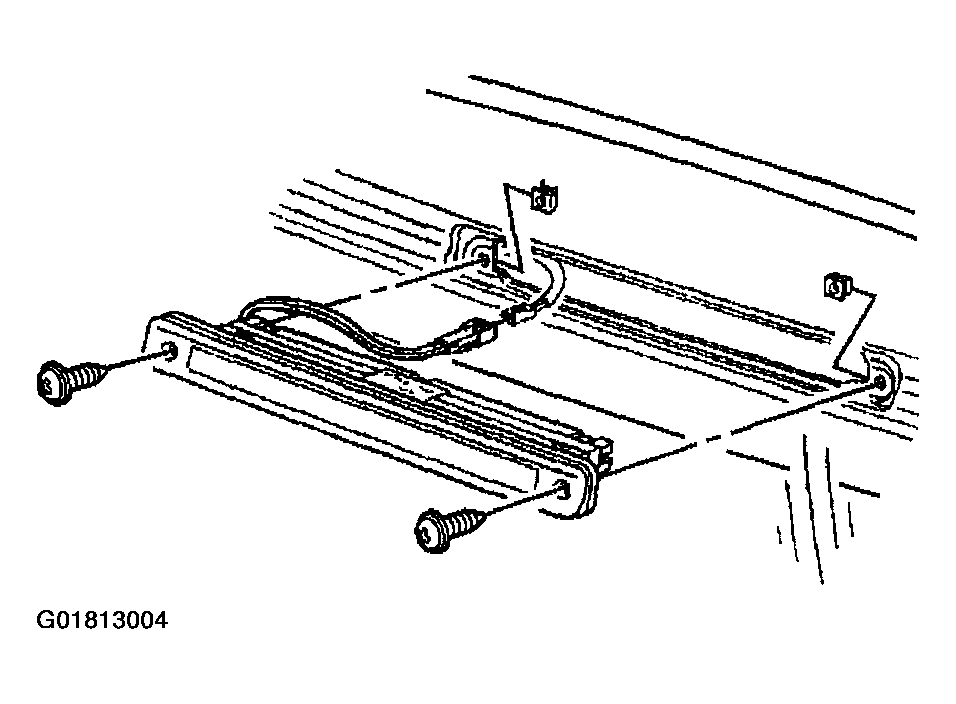

    Fig 1: Removing Screws & High-Mounted Stop Lamp
    G01813004Courtesy of GENERAL MOTORS CORP.
