Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the headlamp bulb/socket to the headlamp by rotating clockwise.
  2. Connect the electrical connector to the headlamp bulb/socket.
  3. Align the lower pins to the locating holes in the headlamp support bracket.
  4. Align the bracket to the studs in order to install the headlamp to the body.
  5. Install the wing nuts to the headlamp studs and hand tighten.
  6. Install the front park/turn signal/sidemarker lamp. Refer to Park/Turn Signal/Side Marker Lamp Replacement .
  7. Close the hood.

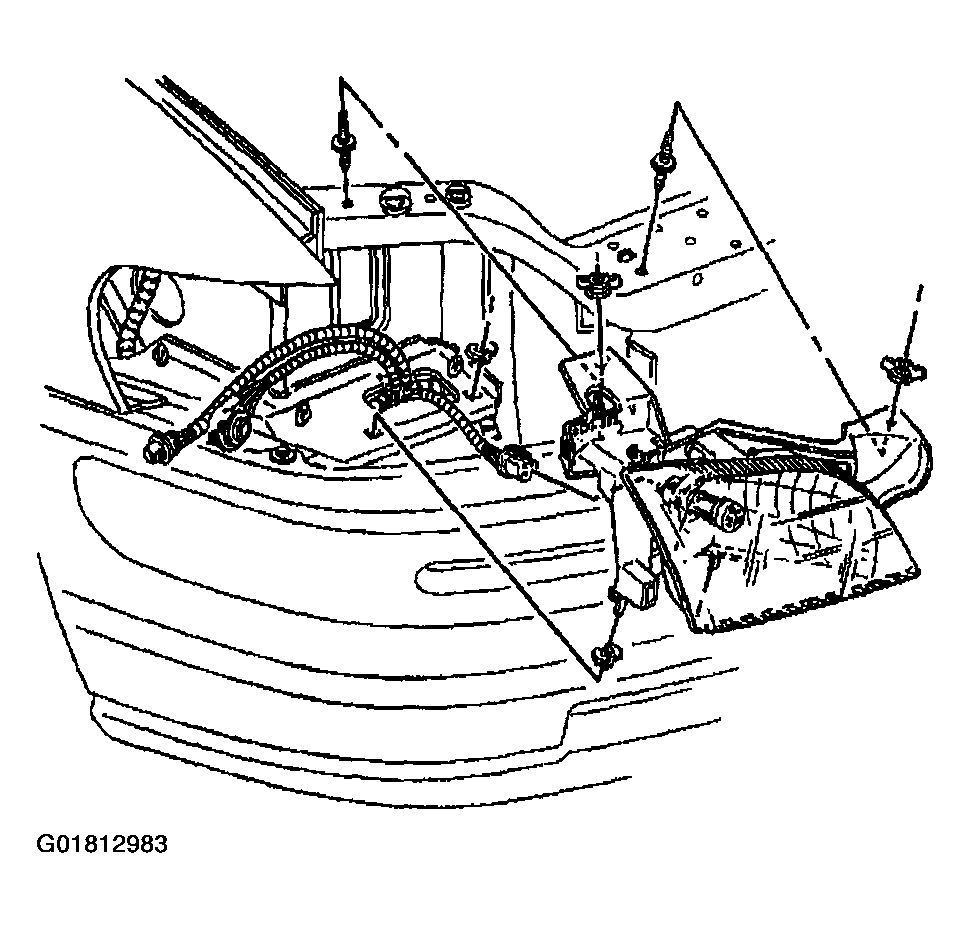

    Fig 1: Installing Headlamp Bulb/Socket & Bolts
    G01812983Courtesy of GENERAL MOTORS CORP.
