Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Partially remove the front fender liner. Refer to FENDER LINER REPLACEMENT .
CAUTION: Refer to HALOGEN BULB CAUTION .
Remove the fog lamp bulb/socket from the fog lamp by rotating counterclockwise.

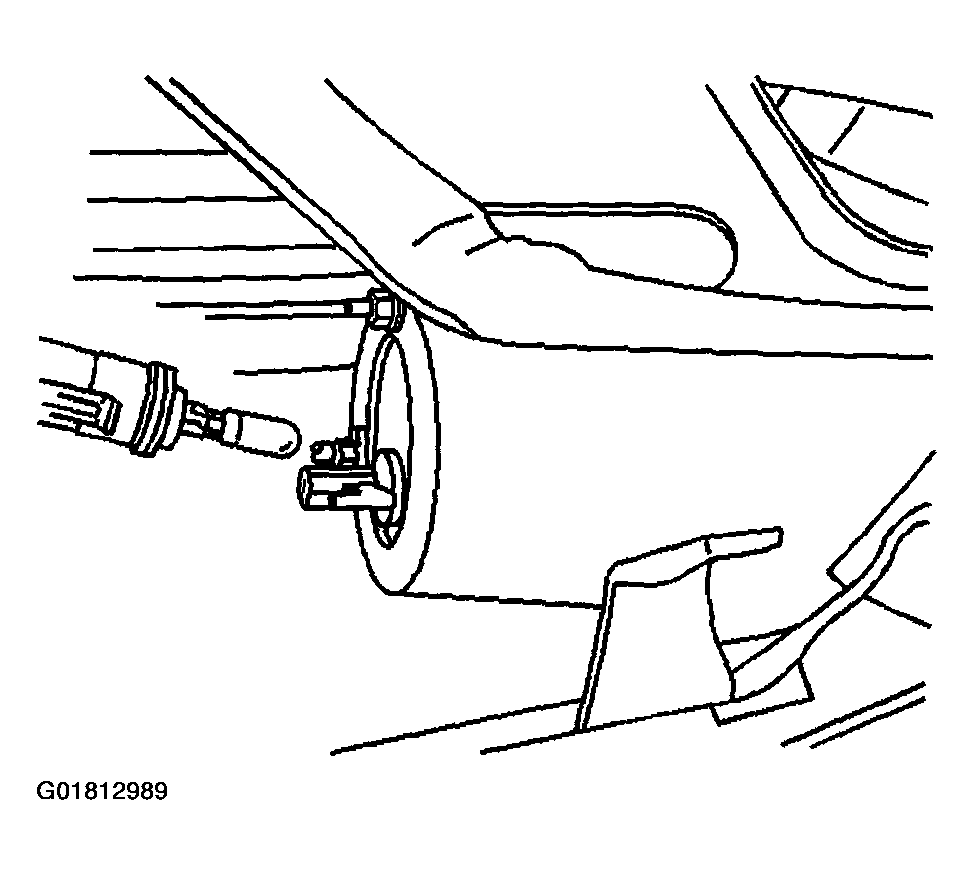

Fig 1: Removing Fog Lamp Bulb/Socket
Courtesy of GENERAL MOTORS CORP.
Remove the nuts from the fog lamp.

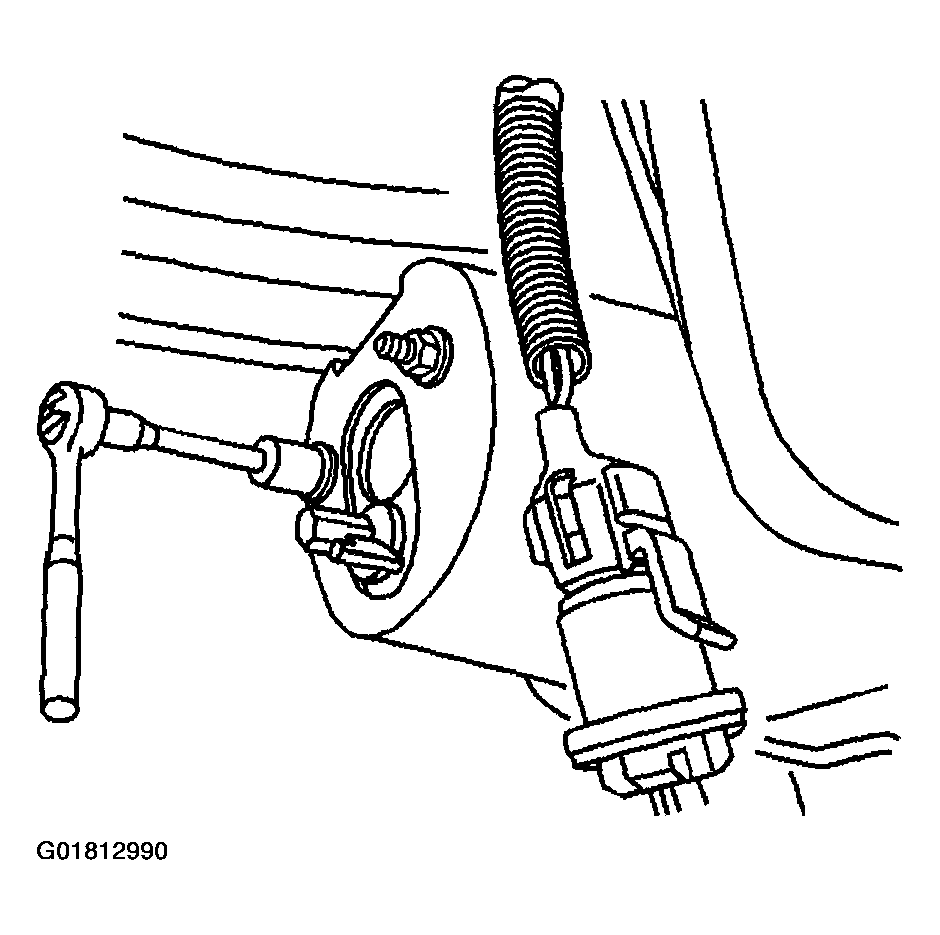

Fig 2: Removing Nuts & Fog Lamp
Courtesy of GENERAL MOTORS CORP.
Remove the fog lamp from the front bumper fascia.

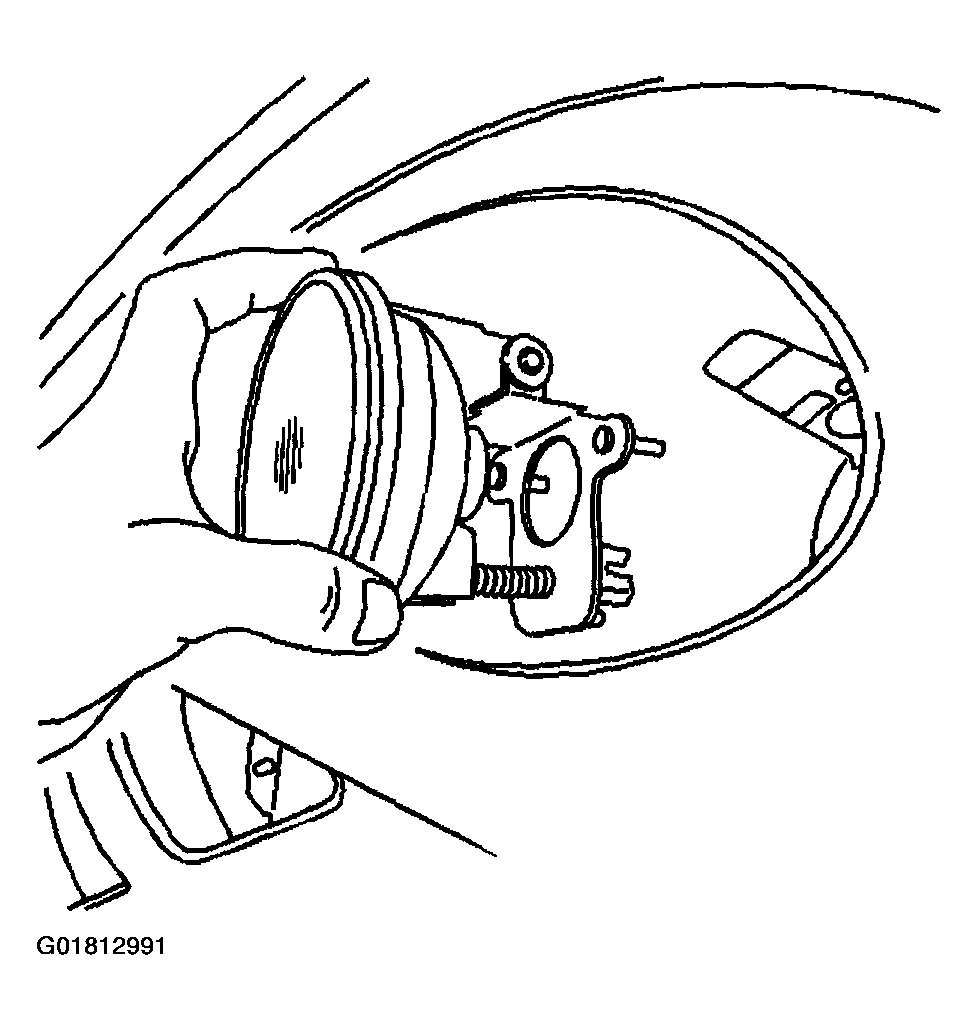

Fig 3: Removing Fog Lamp & Front Bumper Fascia

Courtesy of GENERAL MOTORS CORP.
