Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to HALOGEN BULB CAUTION .
  1. Partially remove the front fender liner to gain access to the fog lamp assembly. Refer to FENDER LINER REPLACEMENT .
  2. Remove the fog lamp bulb/socket from the fog lamp by rotating counterclockwise.

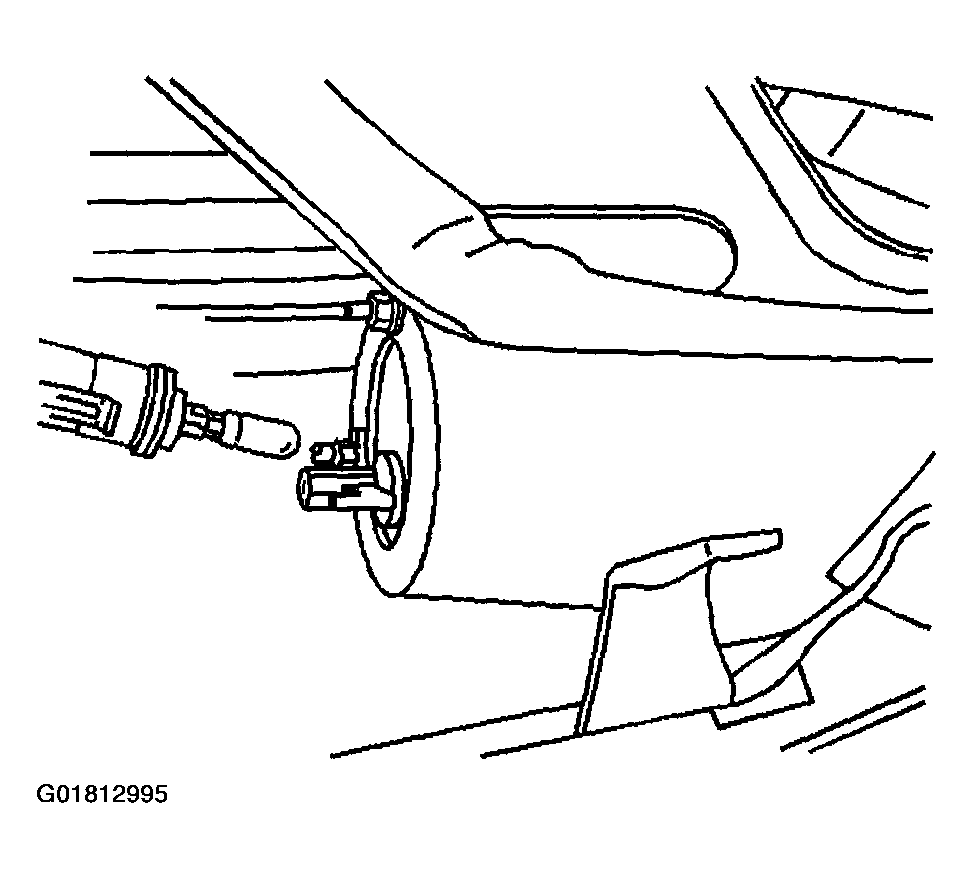

    Fig 1: Removing Fog Lamp Bulb/Socket & Fog Lamp
    G01812995Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connector from the fog lamp bulb/socket.

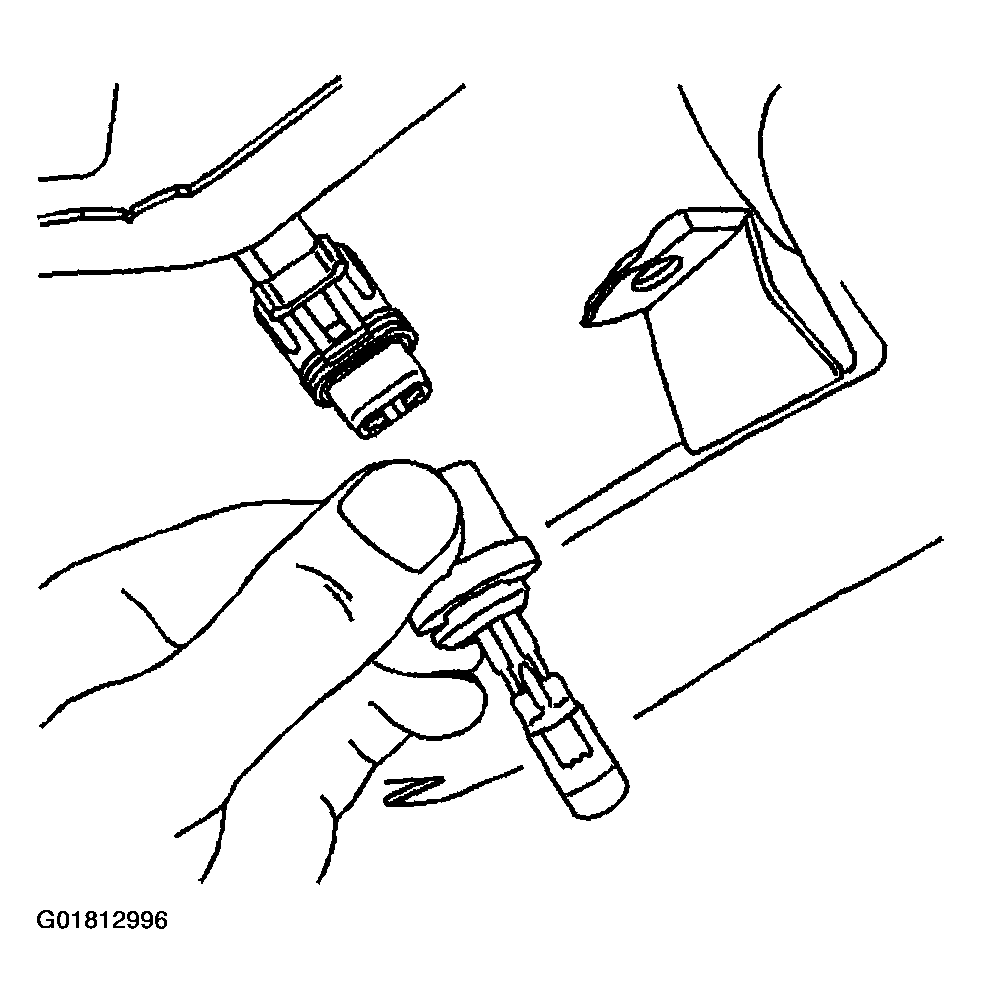

Fig 2: Disconnecting Electrical Connector & Fog Lamp Bulb/Socket
G01812996Courtesy of GENERAL MOTORS CORP.
