Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the fog lamp bulb/socket.
  2. Install the fog lamp bulb/socket to the fog lamp rotating clockwise until fully seated.
  3. Install the front fender liner. Refer to FENDER LINER REPLACEMENT .

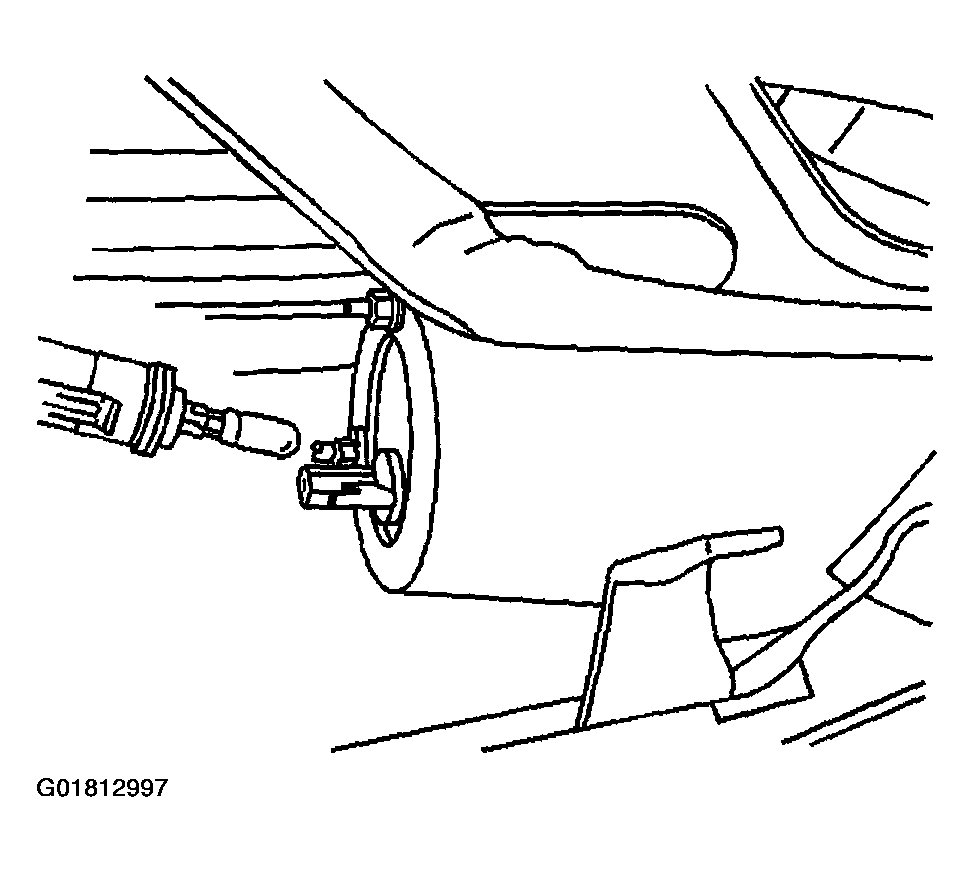

    Fig 1: Installing Fog Lamp Bulb/Socket & Fog Lamp
    G01812997Courtesy of GENERAL MOTORS CORP.
