Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use a small, flat-bladed tool in order to release the retainers and remove the dome lamp from the headliner.
  2. Disconnect the electrical connectors from the dome lamp.
  3. Remove the dome lamp from the headliner.

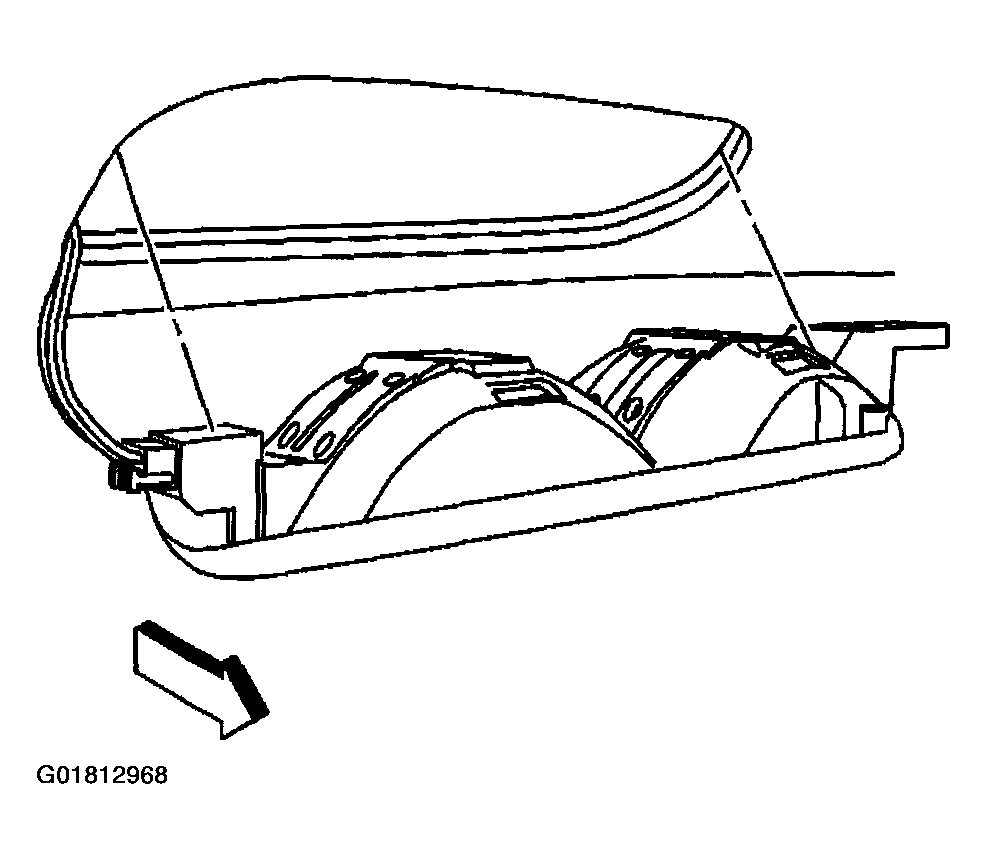

    Fig 1: Removing Dome Lamp
    G01812968Courtesy of GENERAL MOTORS CORP.
  4. Use a small, flat-bladed tool in order to remove the dome lamp lens from the dome lamp.
  5. Use a small, flat-bladed tool in order to remove the bulb from the socket.

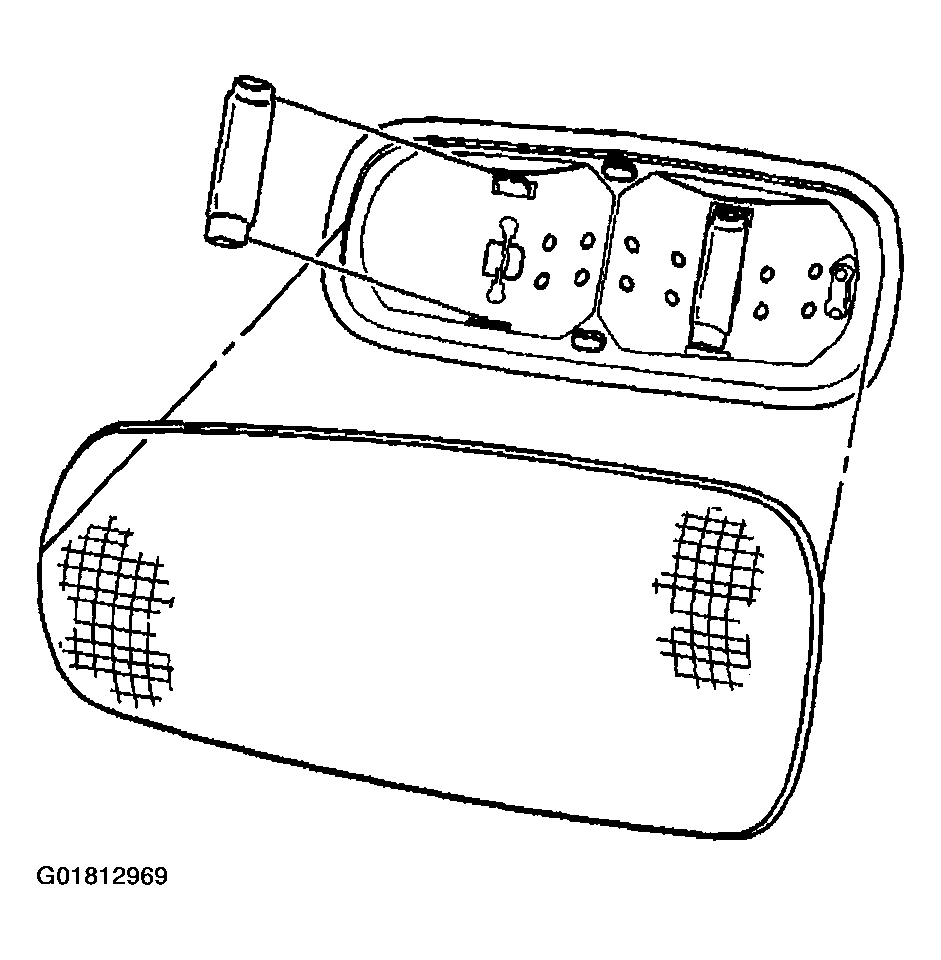

    Fig 2: Removing Bulb From Socket & Dome Lamp Lens
    G01812969Courtesy of GENERAL MOTORS CORP.
