Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press the bulb into the socket.
  2. Snap the dome lamp lens into the dome lamp.
  3. Connect the electrical connectors to the dome lamp.

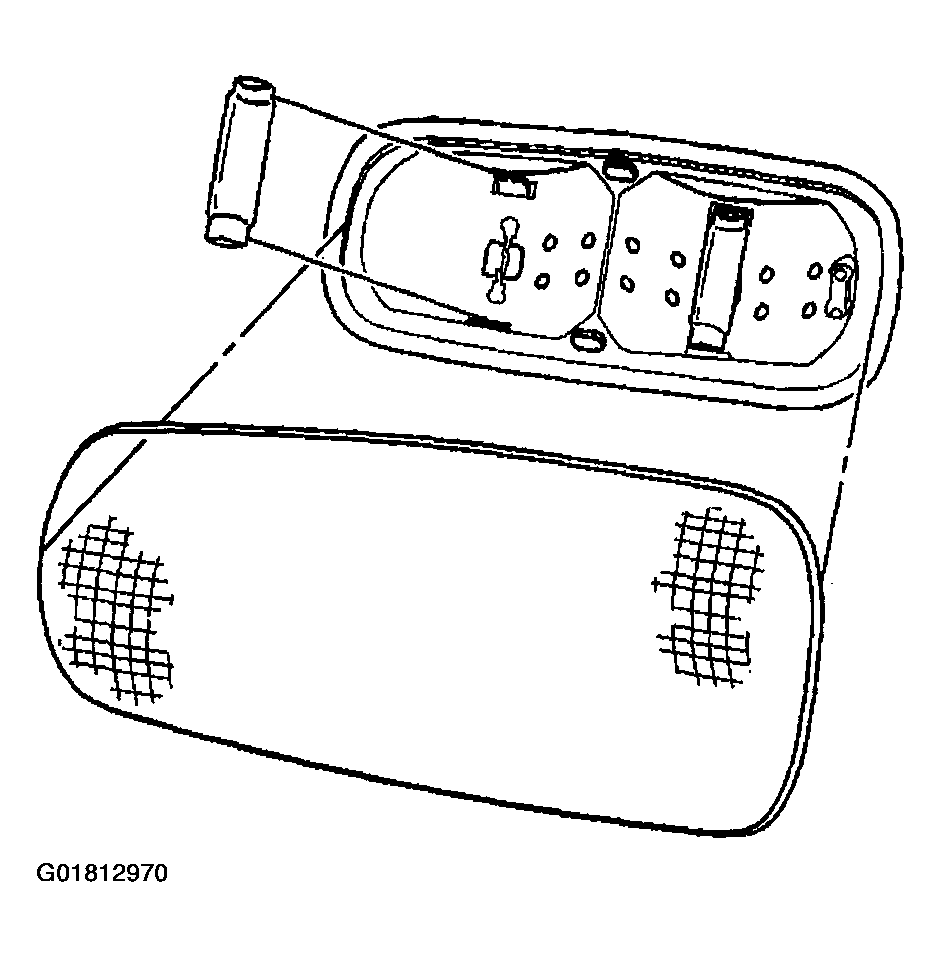

    Fig 1: Installing Bulb From Socket & Dome Lamp Lens
    G01812970Courtesy of GENERAL MOTORS CORP.
  4. Install the dome lamp to the headliner.
  5. Press the dome lamp into the hole in the headliner in order to snap-in the retainers.

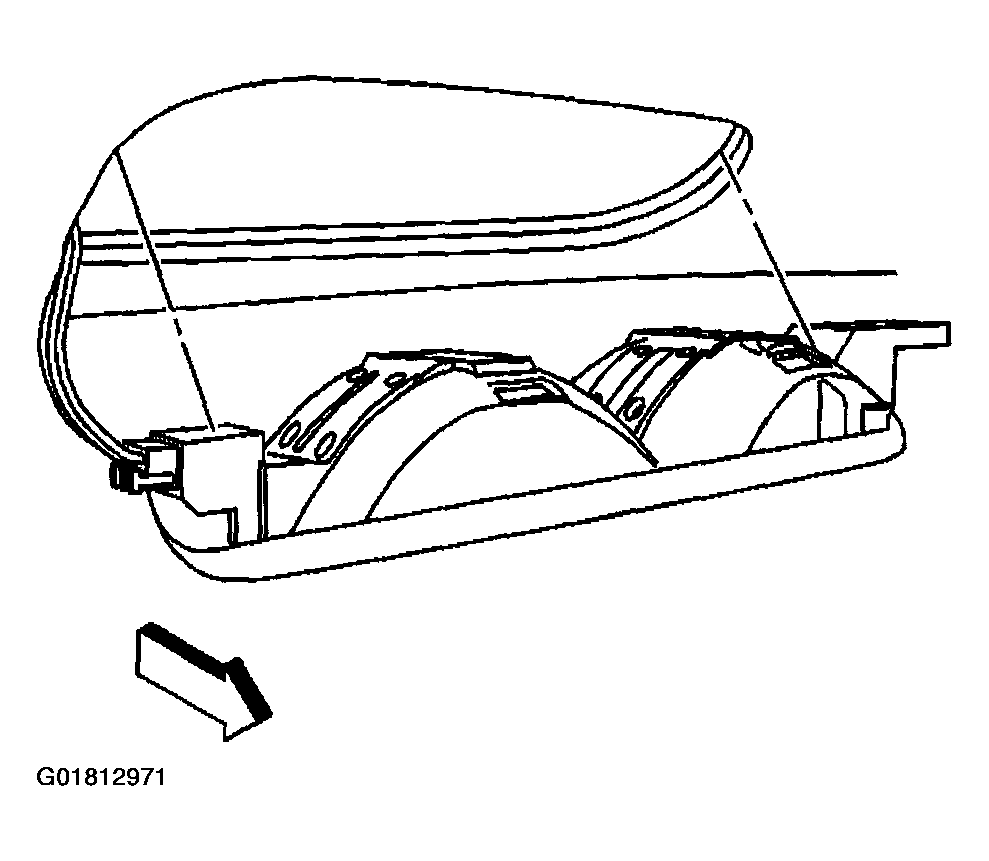

    Fig 2: Installing Dome Lamp
    G01812971Courtesy of GENERAL MOTORS CORP.
