Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the dome lamp lens cover.
  2. Remove the screws from the dome lamp.
  3. Disconnect the electrical connector from the dome lamp.
  4. Remove the dome lamp.

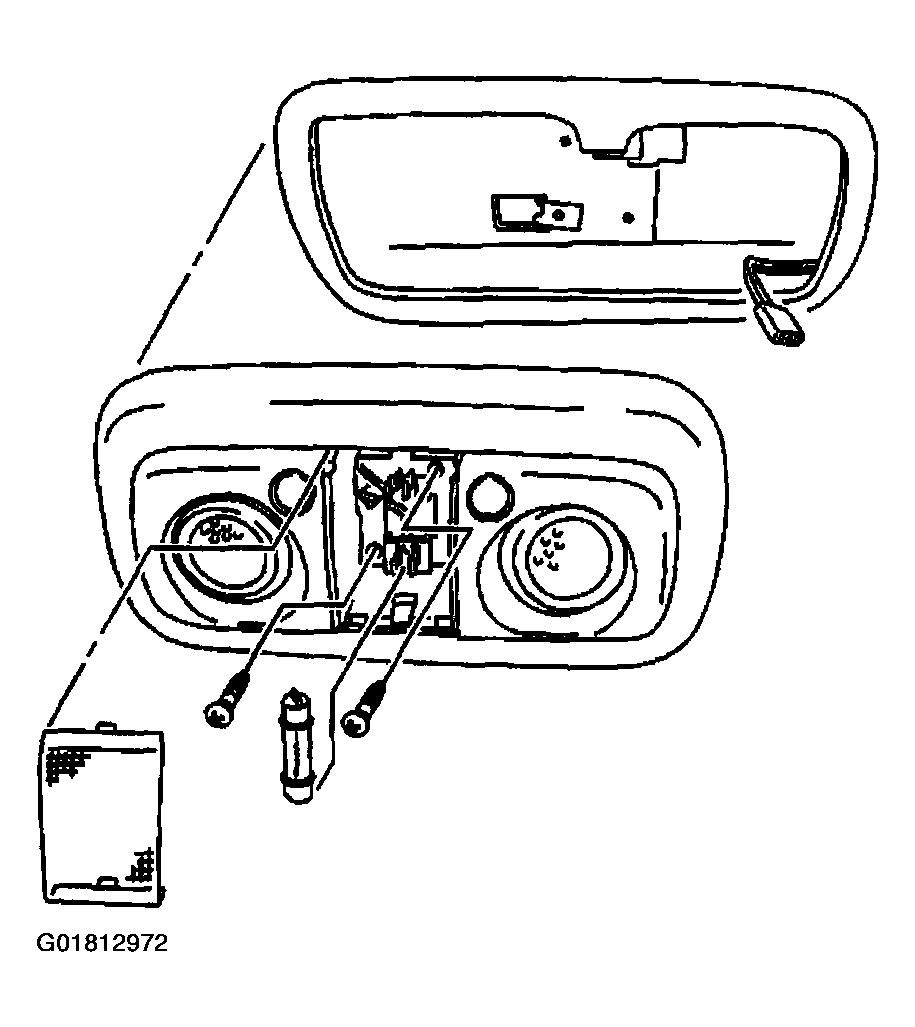

    Fig 1: Removing Screws, Dome Lamp & Cover
    G01812972Courtesy of GENERAL MOTORS CORP.
