Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the dome lamp.
  2. Align the dome lamp to the headliner.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the screws to the dome lamp.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  4. Install the dome lamp lens cover.

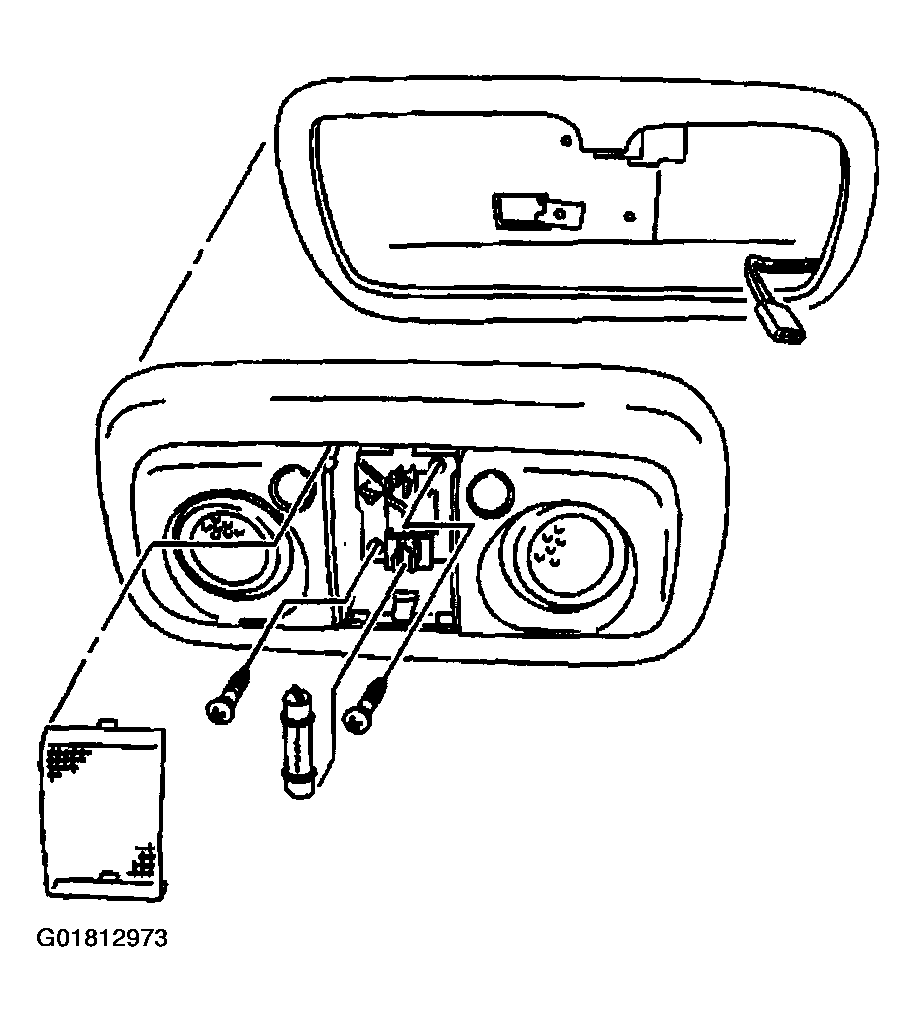

    Fig 1: Installing Screws, Dome Lamp & Cover
    G01812973Courtesy of GENERAL MOTORS CORP.
