Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Snap the dome lamp bracket assembly into the overhead console.
  2. Connect the electrical connectors to the dome lamp assembly.

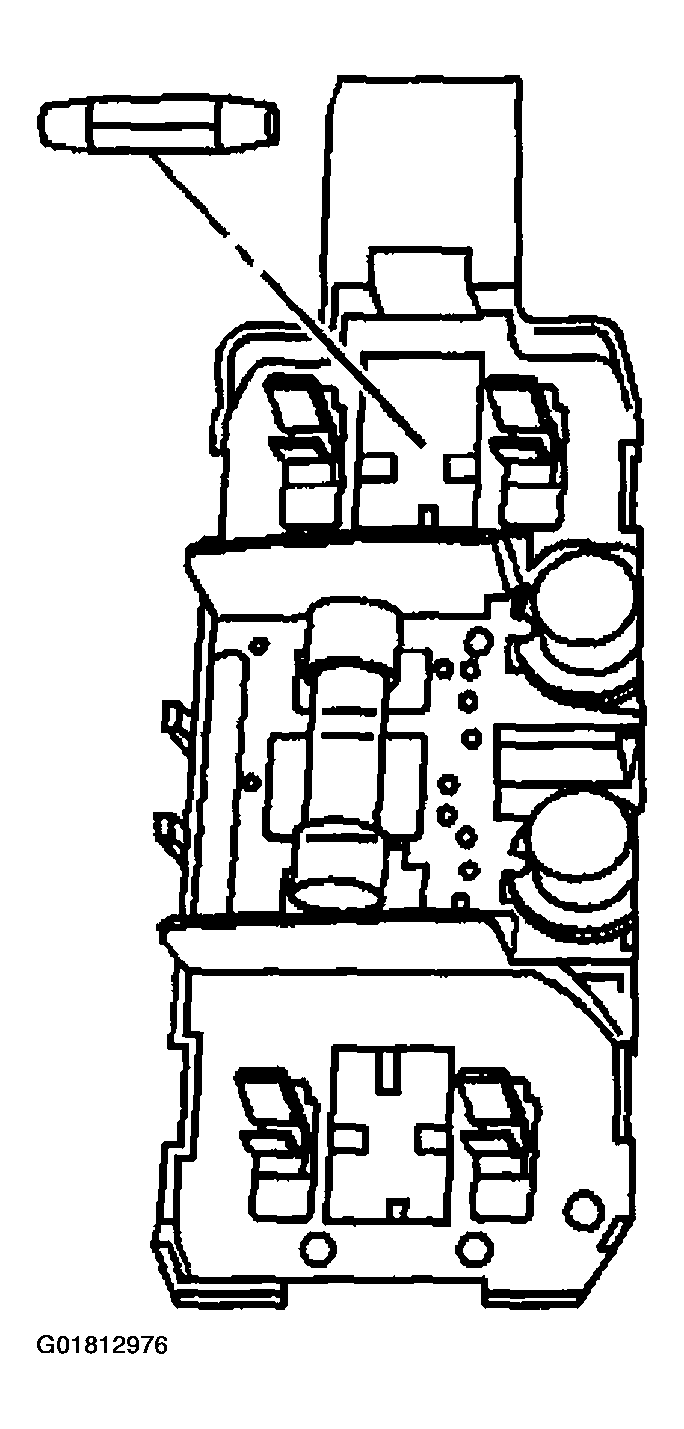

    Fig 1: Installing Dome Light Assembly
    G01812976Courtesy of GENERAL MOTORS CORP.
  3. Install the VES overhead console. Refer to OVERHEAD CONSOLE - VES REPLACEMENT .

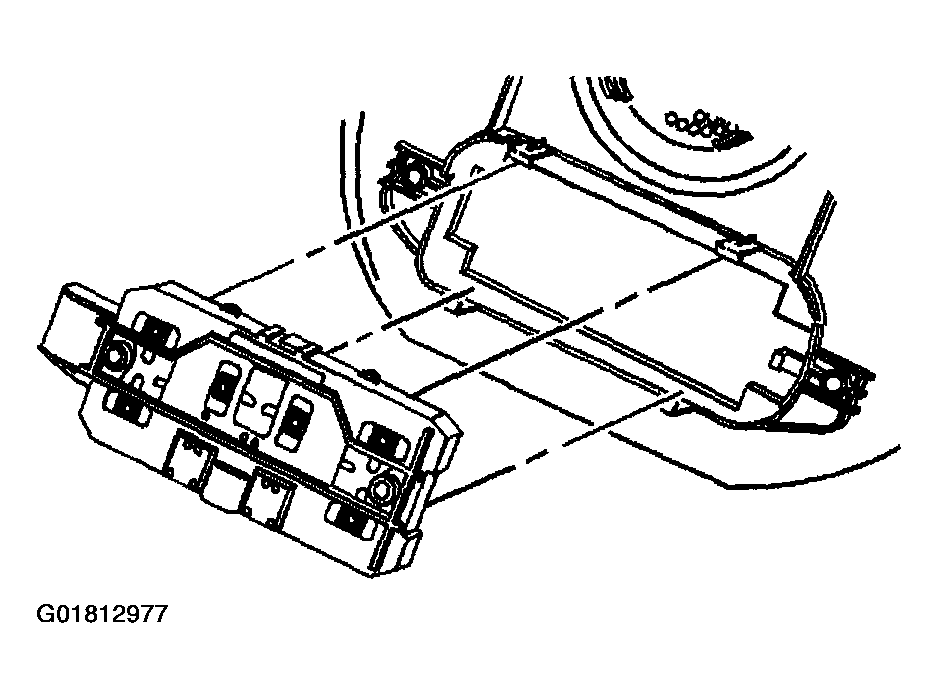

    Fig 2: Connecting Dome Light Electrical Connectors
    G01812977Courtesy of GENERAL MOTORS CORP.
