Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use a small flat-bladed tool, remove the dome lens cover by prying the left side of the cover loose.
  2. Remove the lens cover.

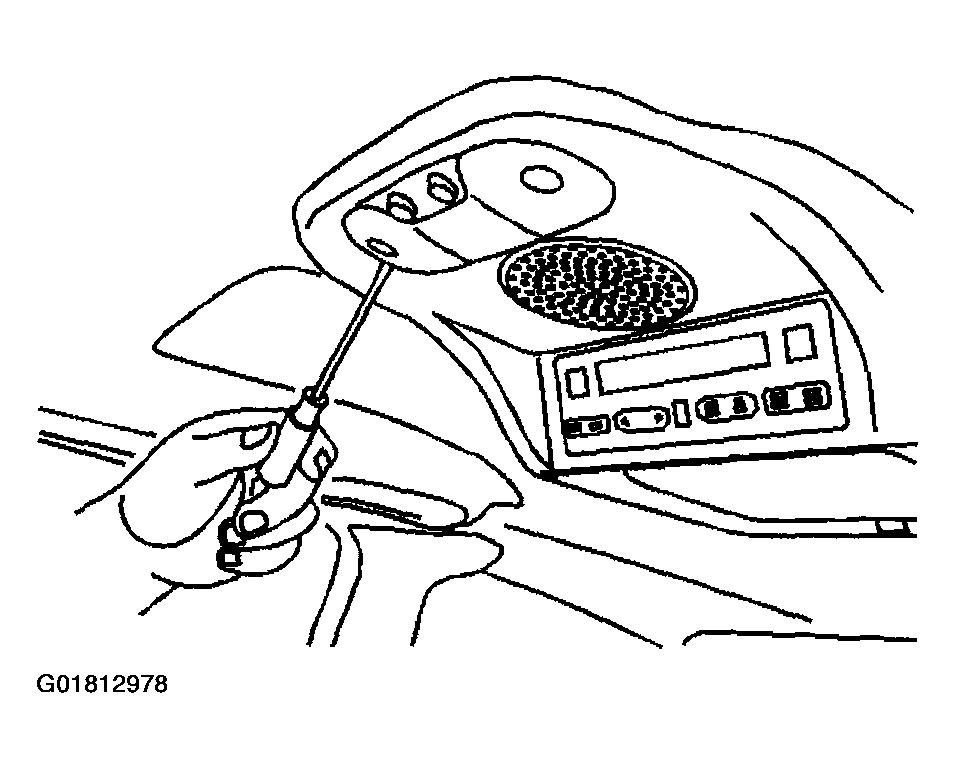

    Fig 1: Removing Dome Lens Cover Using A Flat-Bladed Tool
    G01812978Courtesy of GENERAL MOTORS CORP.
  3. Remove the dome light bulb.

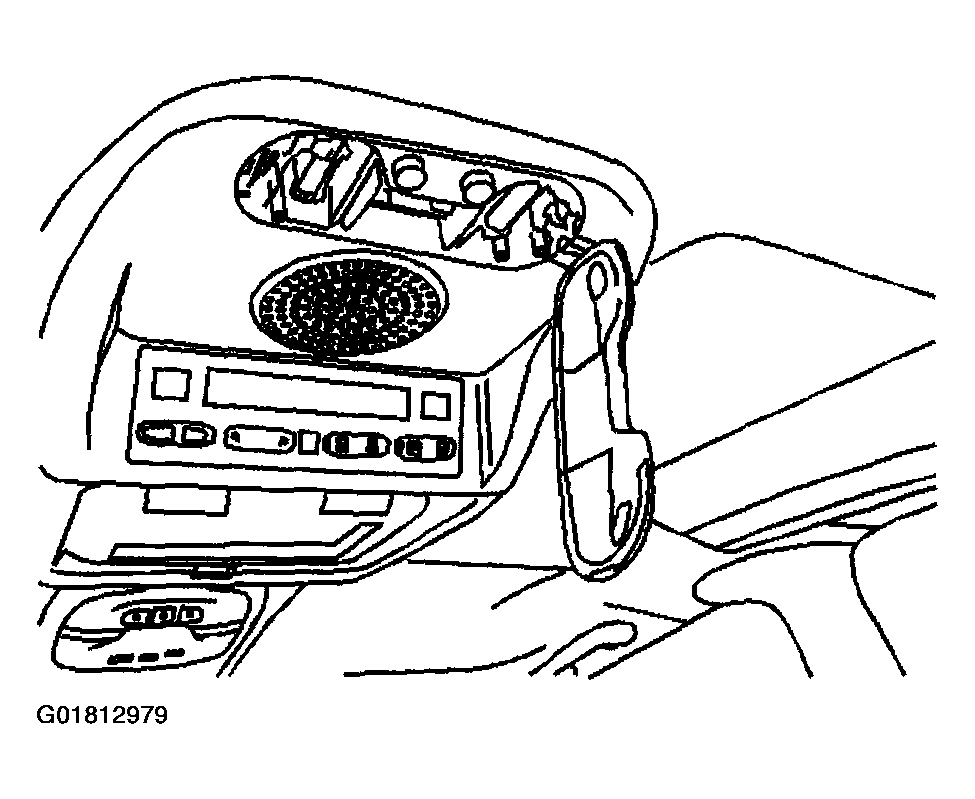

Fig 2: Removing Dome Light Bulb
G01812979Courtesy of GENERAL MOTORS CORP.
