Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel (IP) upper trim. Refer to TRIM PAD REPLACEMENT - IP UPPER .
  2. Remove the security system LED. Refer to LED INDICATOR REPLACEMENT - VEHICLE SECURITY .
  3. Twist the DRL sensor counterclockwise in order to remove the sensor from the IP upper trim.
  4. Remove the DRL sensor from the wiring harness.

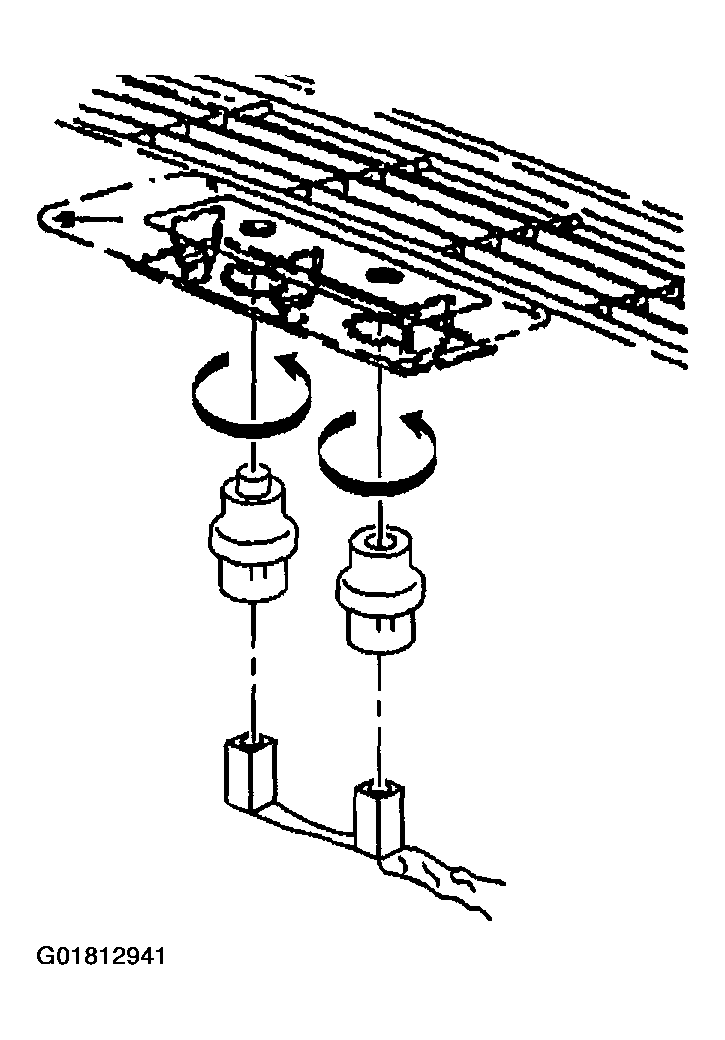

    Fig 1: Removing DRL Sensor & Wiring Harness
    G01812941Courtesy of GENERAL MOTORS CORP.
