Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the DRL sensor to the wiring harness.
  2. Position the DRL sensor in the IP upper trim and twist the sensor to secure.
  3. Install the security system LED. Refer to LED INDICATOR REPLACEMENT - VEHICLE SECURITY .
  4. Install the IP upper trim. Refer to TRIM PAD REPLACEMENT - IP UPPER .

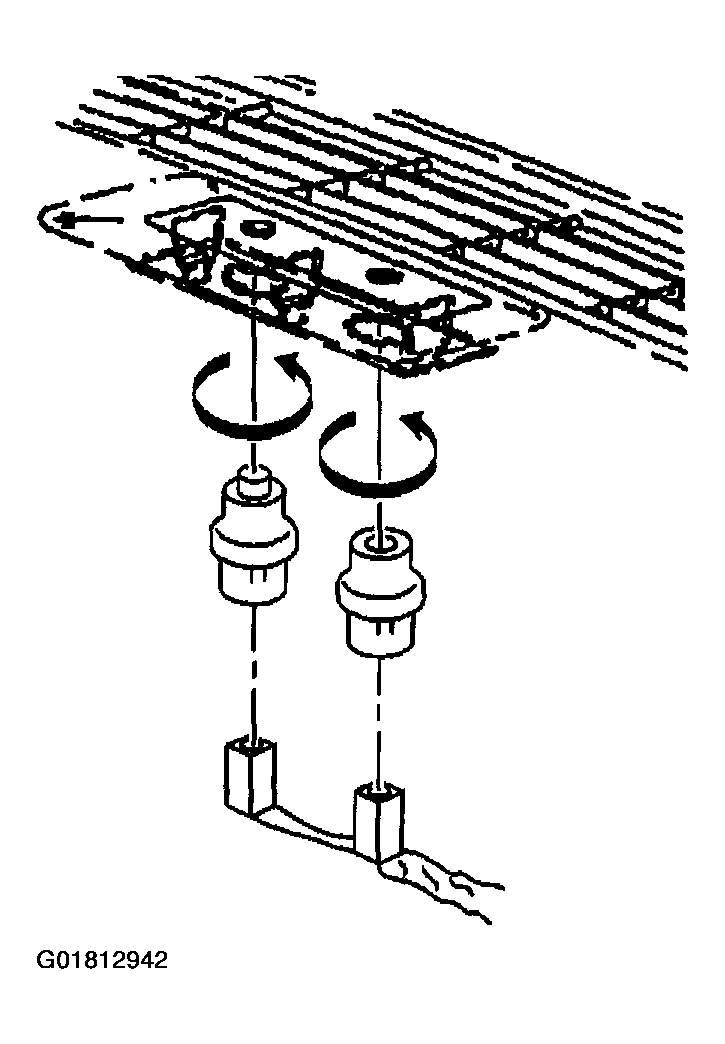

    Fig 1: Installing DRL Sensor & Wiring Harness
    G01812942Courtesy of GENERAL MOTORS CORP.
