Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT .
  2. Remove the right instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT .
  3. Remove the right instrument panel courtesy lamp from the instrument panel.

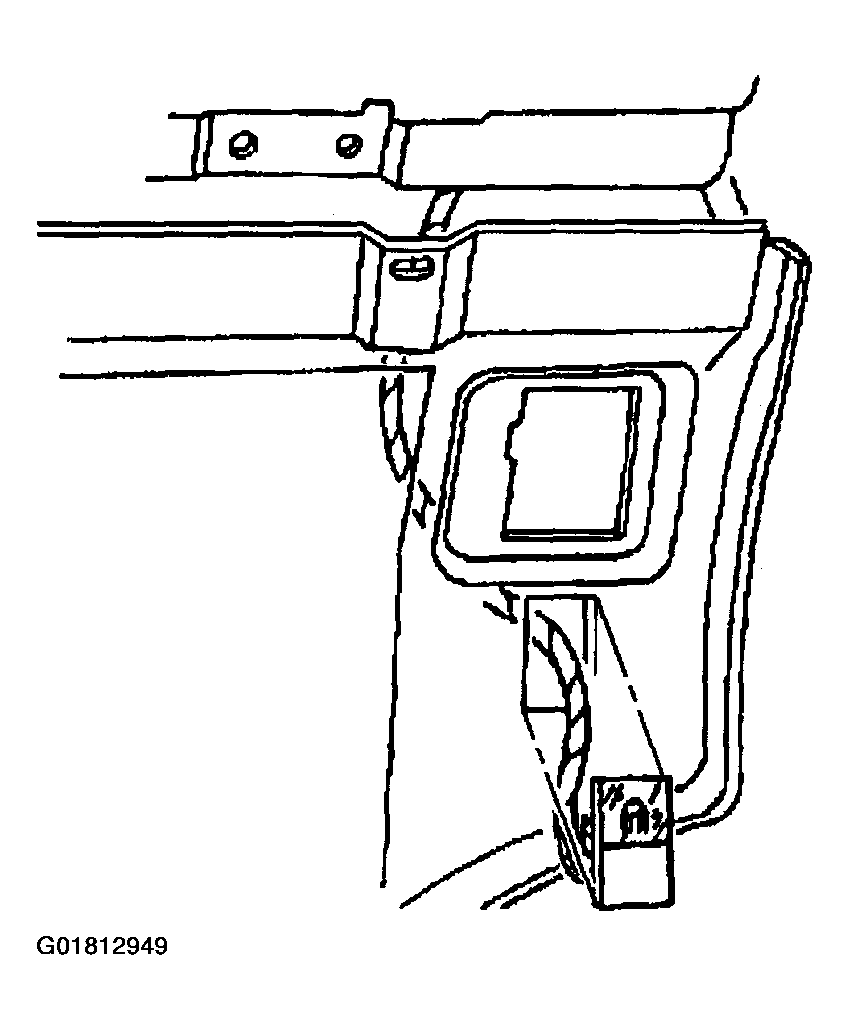

    Fig 1: Removing Right Instrument Panel Courtesy Lamp
    G01812949Courtesy of GENERAL MOTORS CORP.
  4. Remove the left instrument panel courtesy lamp from the instrument panel.

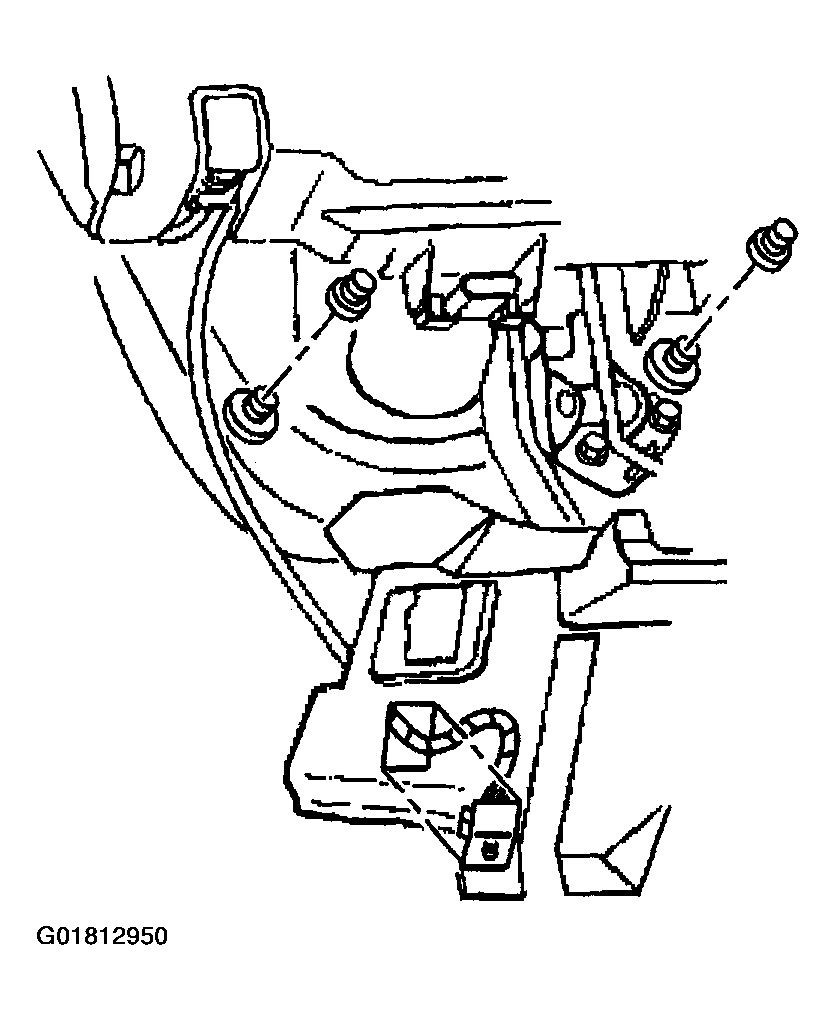

Fig 2: Removing Left Instrument Panel Courtesy Lamp
G01812950Courtesy of GENERAL MOTORS CORP.
