Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the right instrument panel courtesy lamp to the instrument panel insulator.
  2. Install the left instrument panel courtesy lamp to the instrument panel insulator.

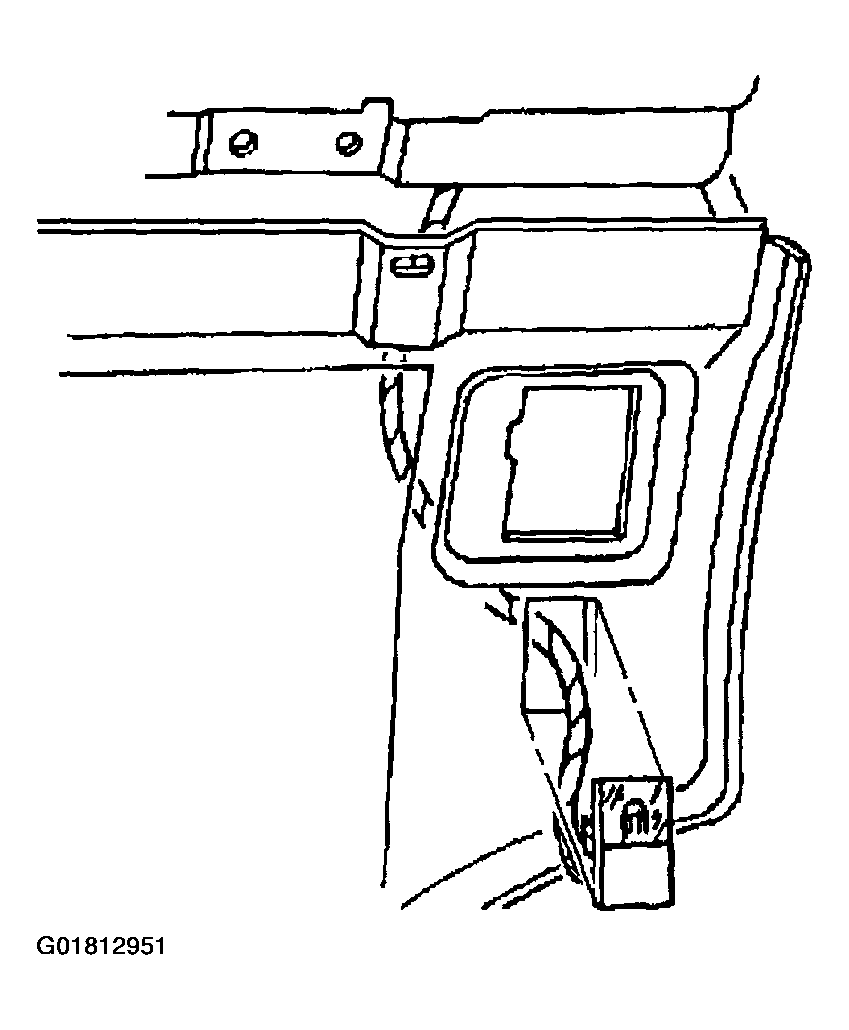

    Fig 1: Installing Right Instrument Panel Courtesy Lamp
    G01812951Courtesy of GENERAL MOTORS CORP.
  3. Install the left instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT .
  4. Install the right instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT .

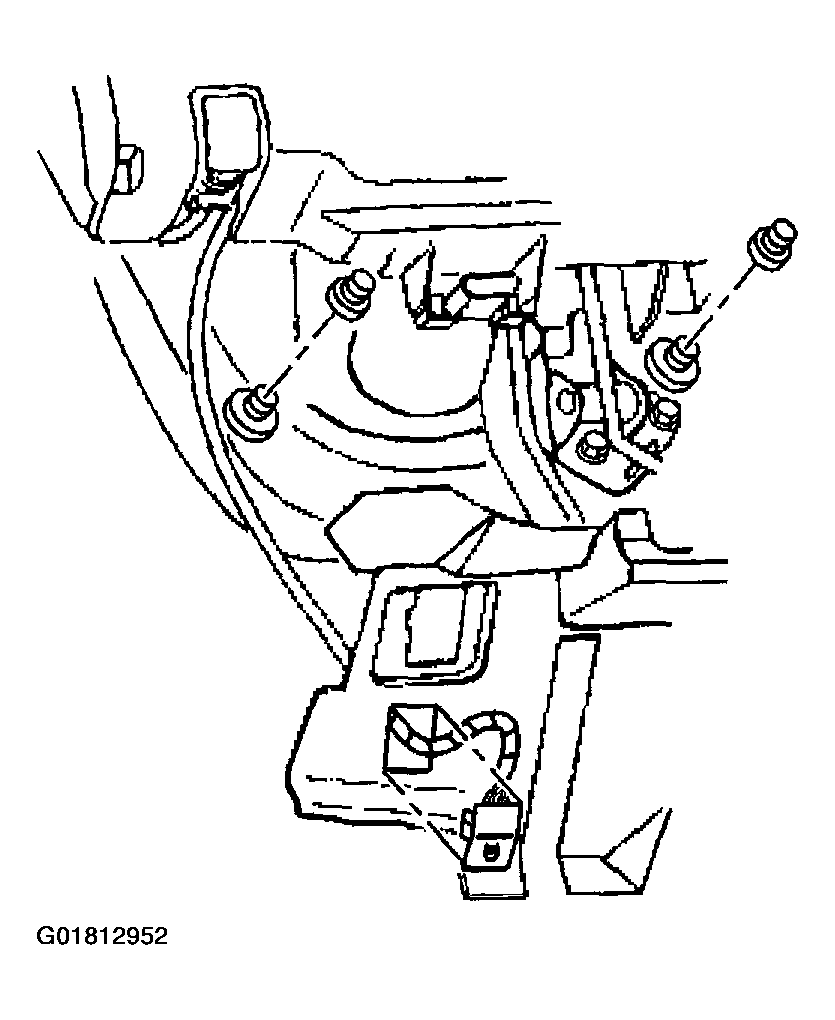

    Fig 2: Installing Left Instrument Panel Courtesy Lamp
    G01812952Courtesy of GENERAL MOTORS CORP.
