Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use a small, flat-bladed tool in order to remove the cargo lamp from the headliner.
  2. Disconnect the electrical connectors from the cargo lamp.
  3. Remove the cargo lamp from the headliner.
  4. Use a small, flat-bladed tool in order to remove the cargo lamp lens from the cargo lamp.

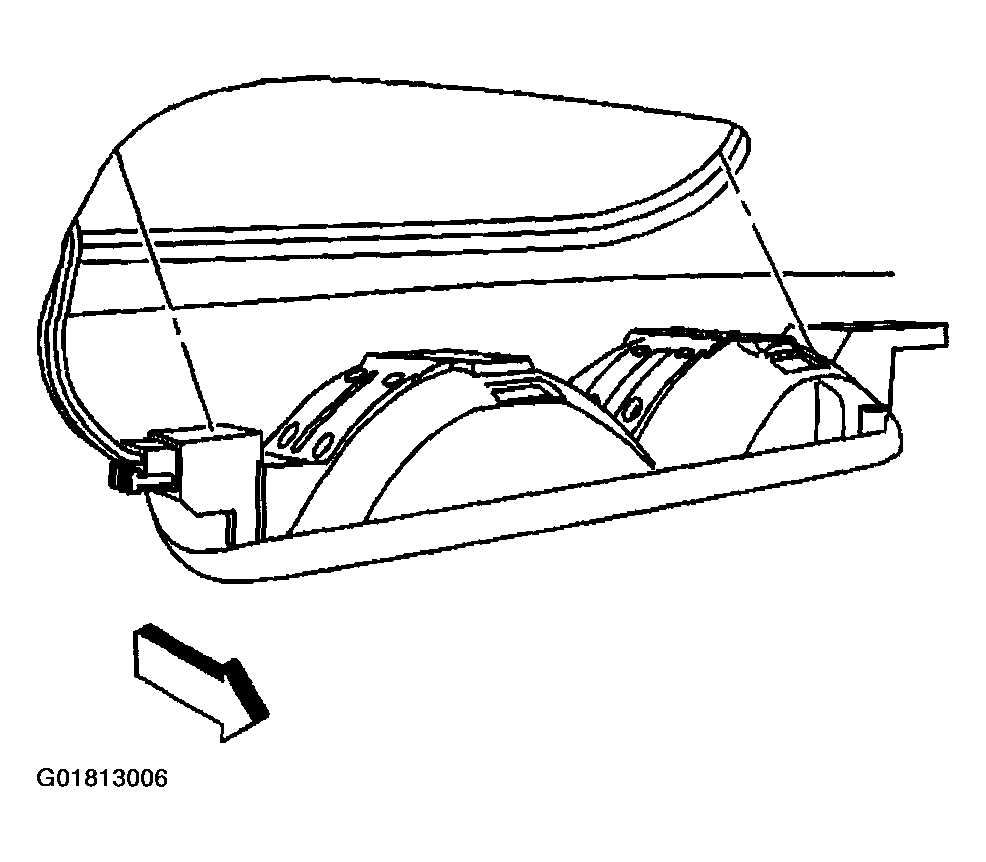

    Fig 1: Removing Cargo Lamp & Headliner
    G01813006Courtesy of GENERAL MOTORS CORP.
  5. Use a small, flat-bladed tool in order to remove the bulb from the socket.

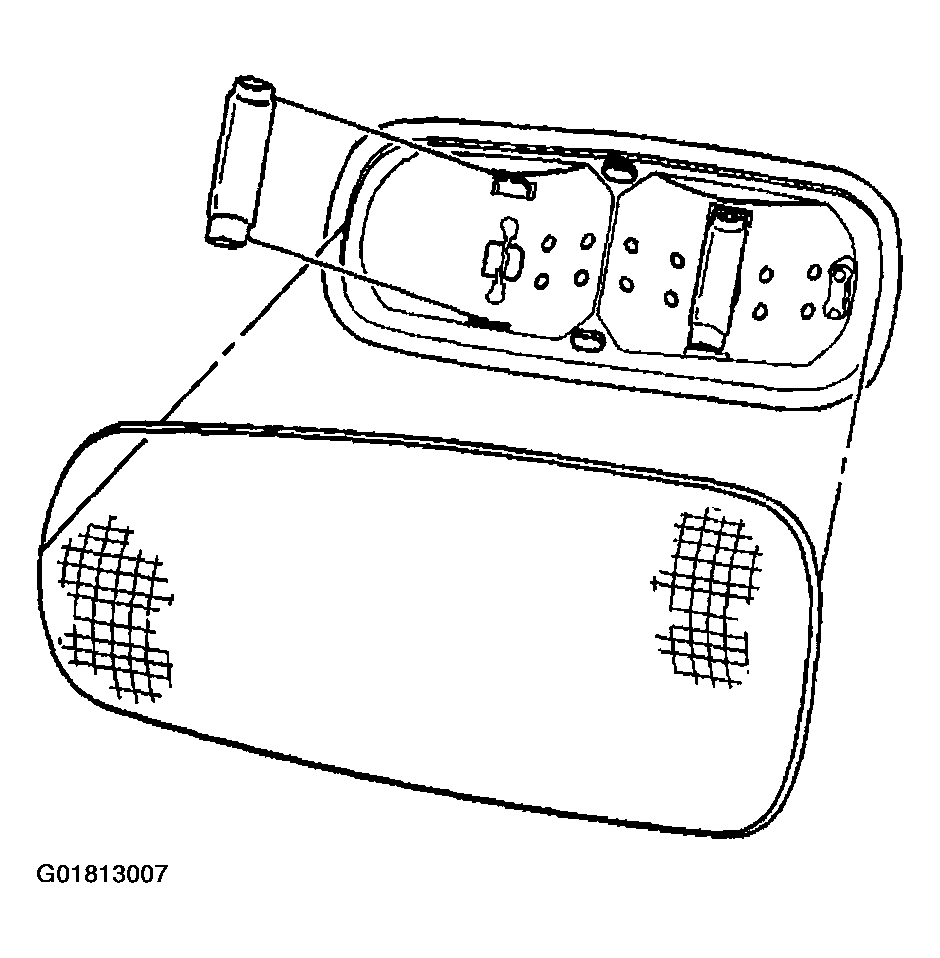

    Fig 2: Removing Bulb From Socket (Cargo Lamp)
    G01813007Courtesy of GENERAL MOTORS CORP.
