Headlamps Inoperative - High Beams (Export)

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

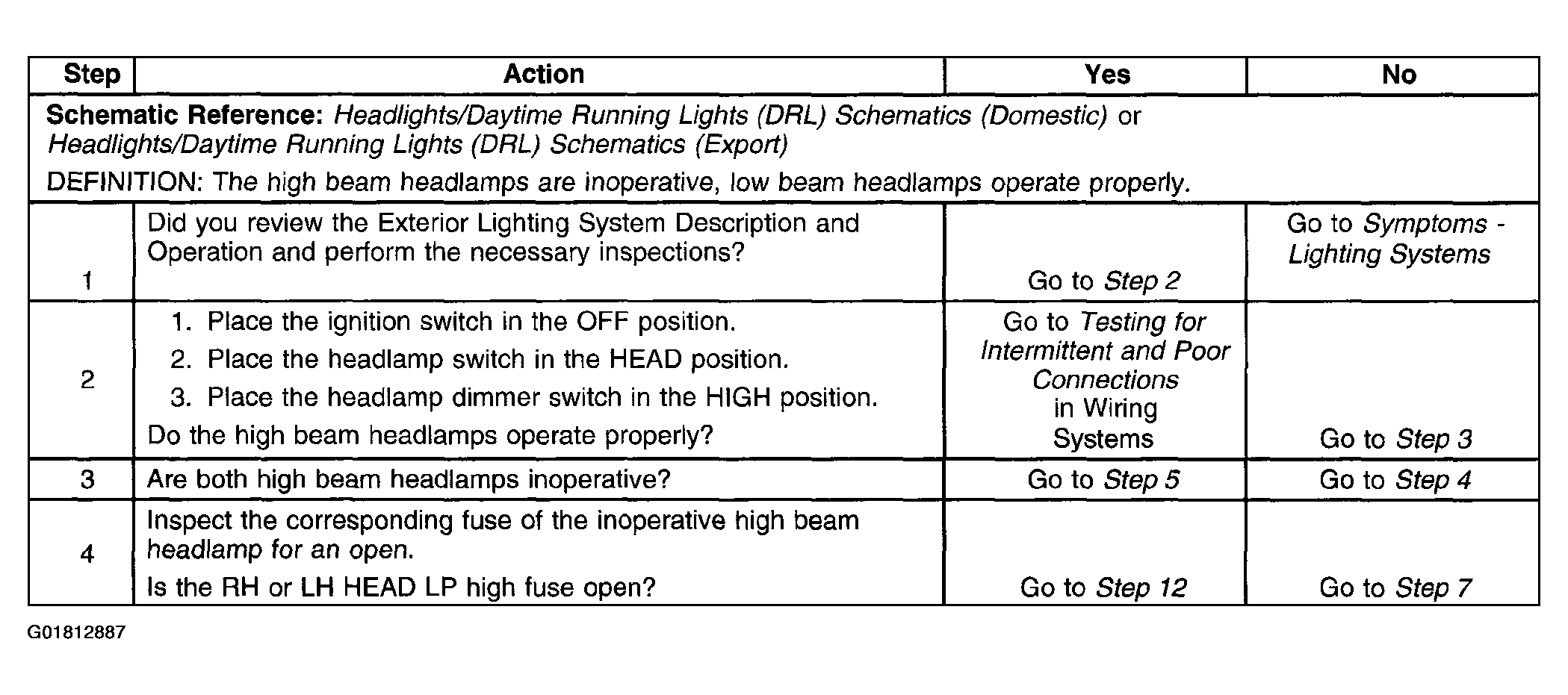

Fig 1: Headlamps Inoperative - High Beams (Export) (1 Of 2)
G01812887Courtesy of GENERAL MOTORS CORP.

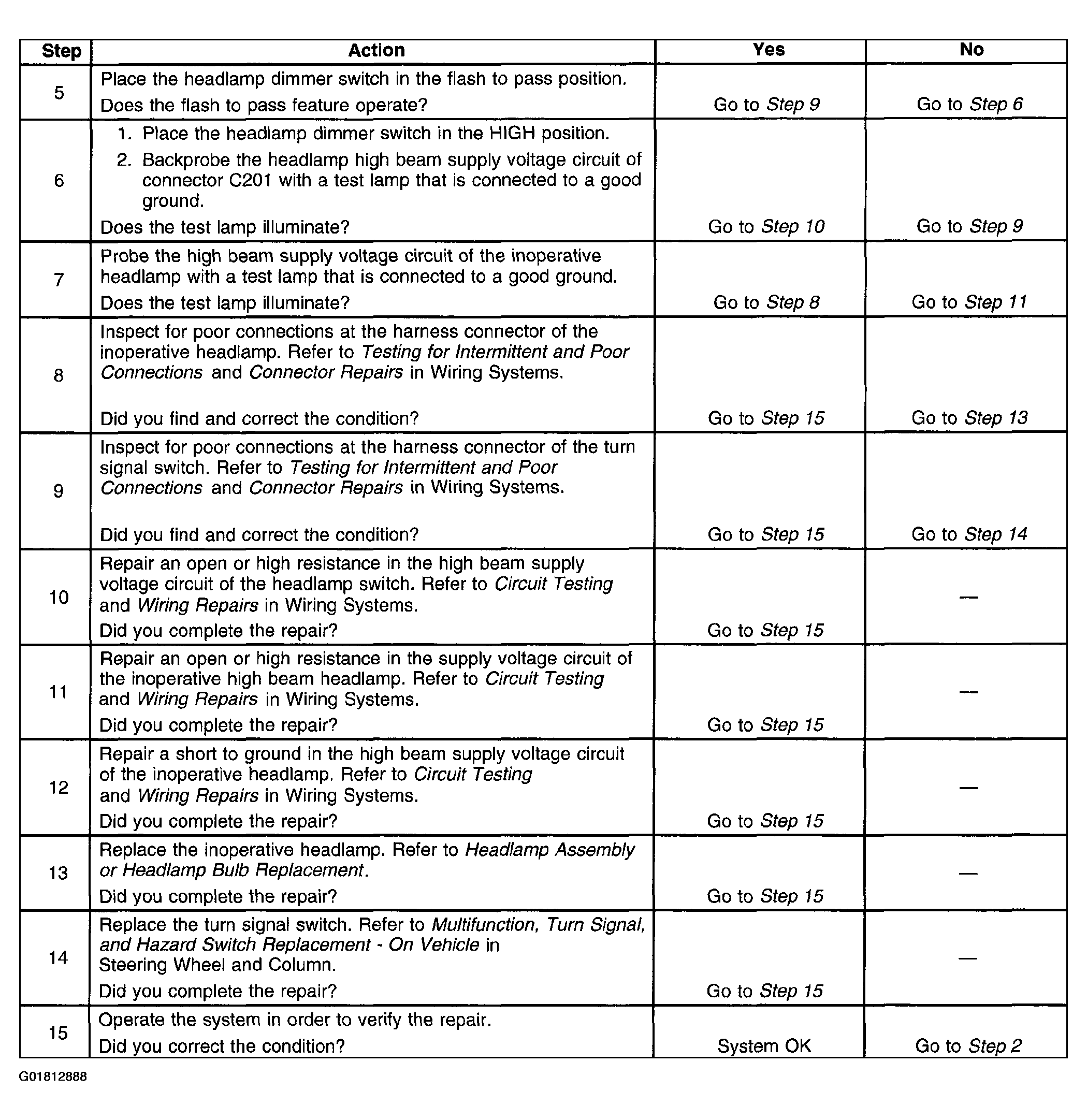

Fig 2: Headlamps Inoperative - High Beams (Export) (2 Of 2)
G01812888Courtesy of GENERAL MOTORS CORP.
