Fog Lamp Indicator Inoperative

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

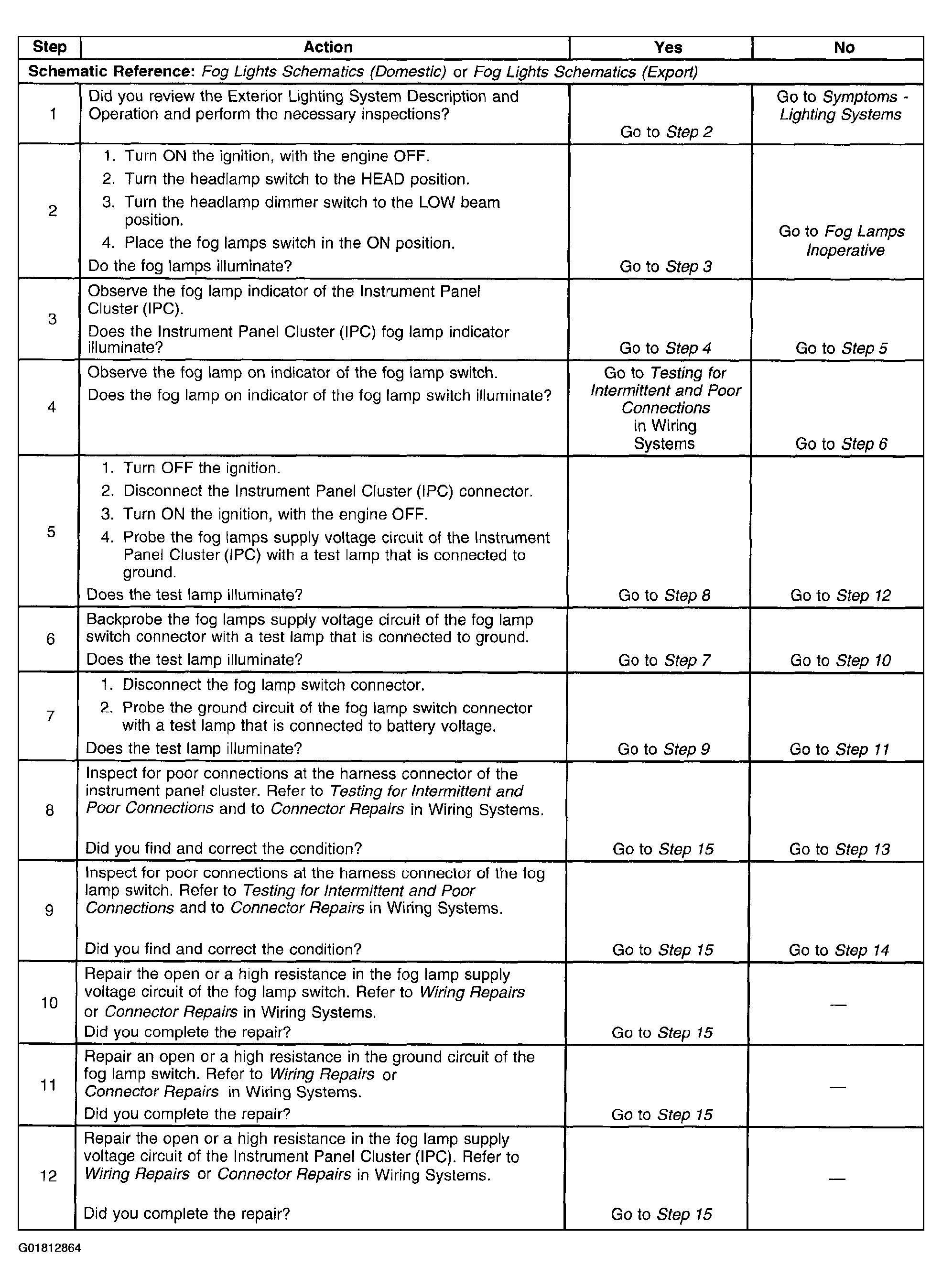

Fig 1: Fog Lamp Indicator Inoperative (1 Of 2)
G01812864Courtesy of GENERAL MOTORS CORP.

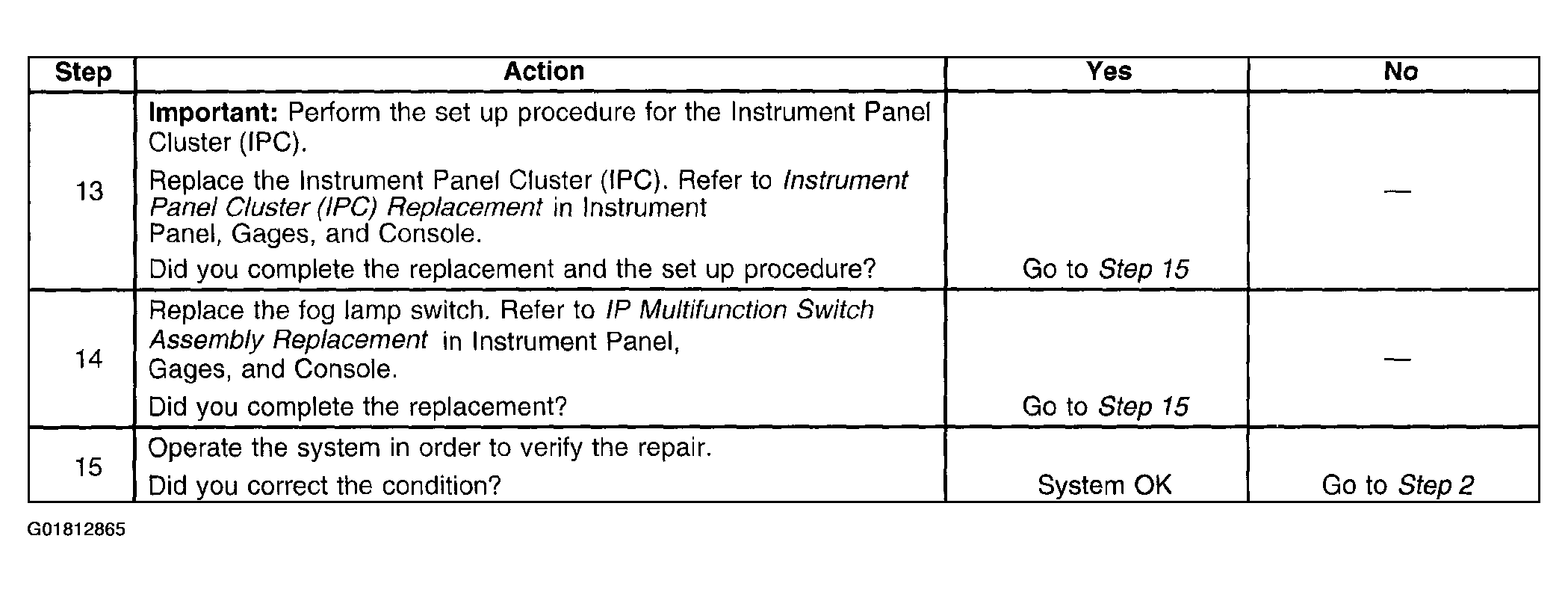

Fig 2: Fog Lamp Indicator Inoperative (2 Of 2)
G01812865Courtesy of GENERAL MOTORS CORP.
