Daytime Running Lamps (DRL) Inoperative (Domestic)

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

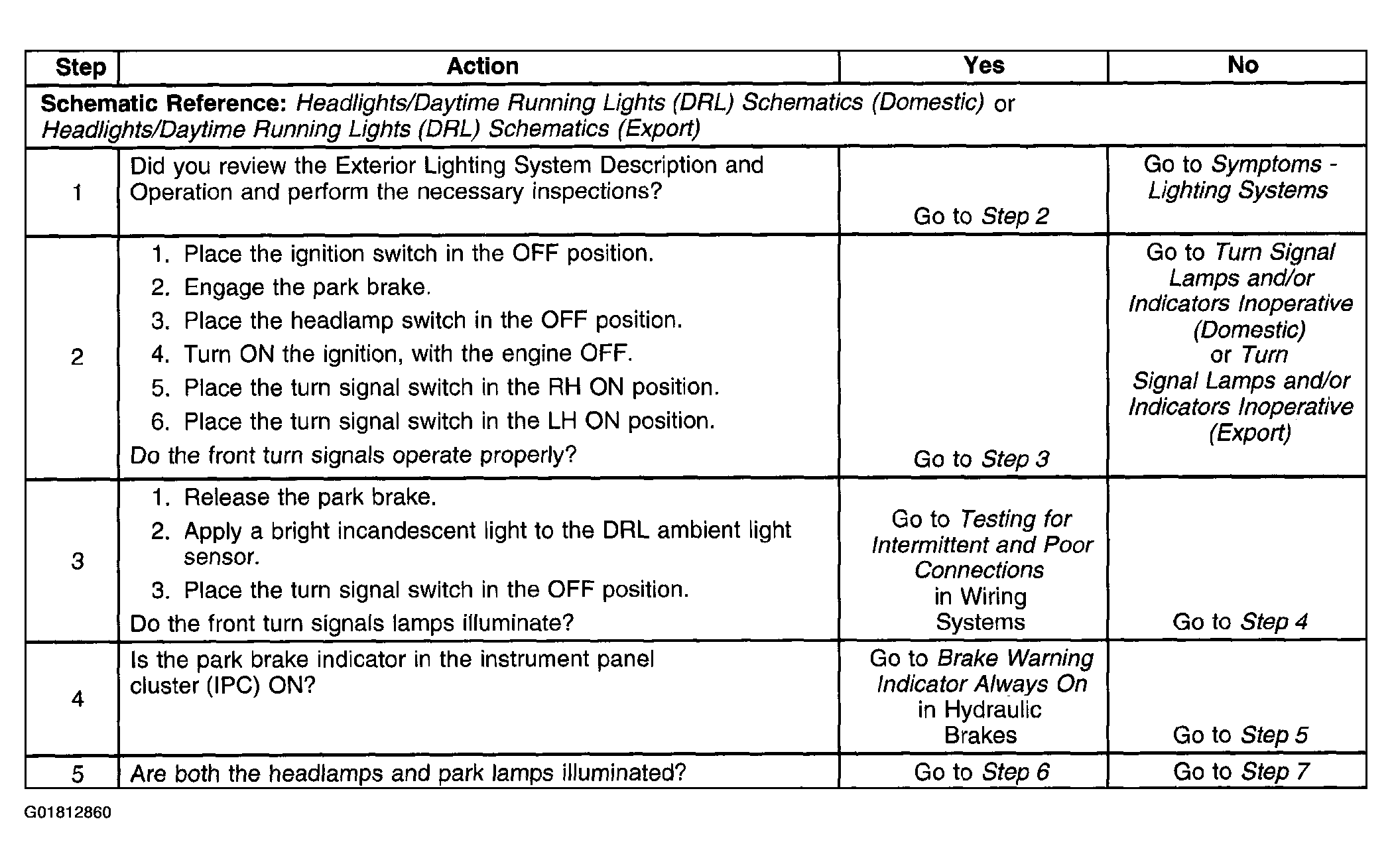

Fig 1: Daytime Running Lamps (DRL) Inoperative (Domestic) (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

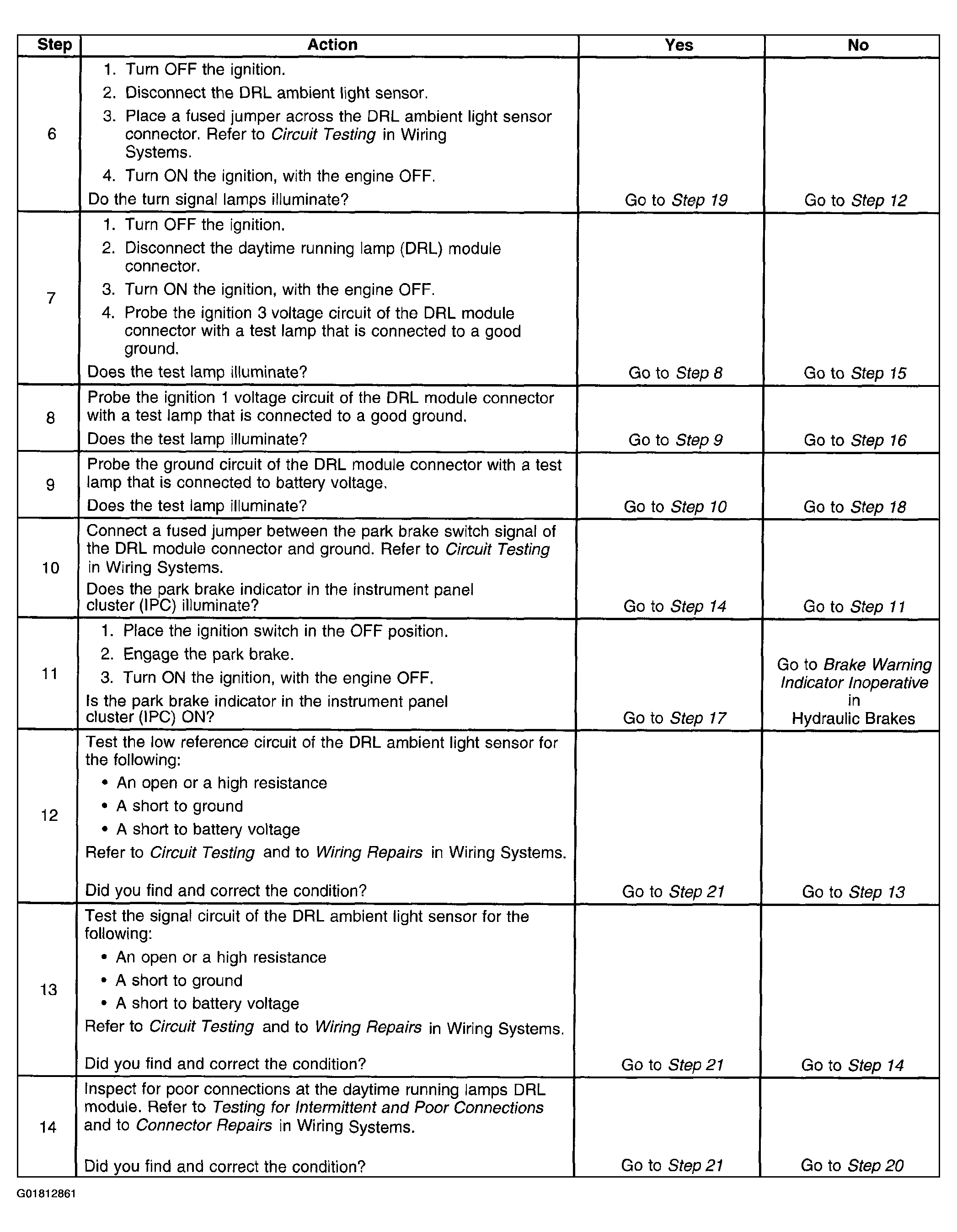

Fig 2: Daytime Running Lamps (DRL) Inoperative (Domestic) (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Daytime Running Lamps (DRL) Inoperative (Domestic) (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
