Test Description

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

The number below refer to the step numbers on the diagnostic table.

  1. 1. Always perform the lighting diagnostic system check before attempting to diagnose the DTC.
  2. 2. Operation of the interior lamps determines if the courtesy lamps supply voltage circuit is energized.
  3. 3. Operation of the inadvertent power feature determines if the courtesy lamps supply voltage circuit de-energizes after the time out period.
  4. 4. Tests for battery positive voltage at the BCM.
  5. 5. Tests the battery positive voltage circuit of the BCM for a short to ground.

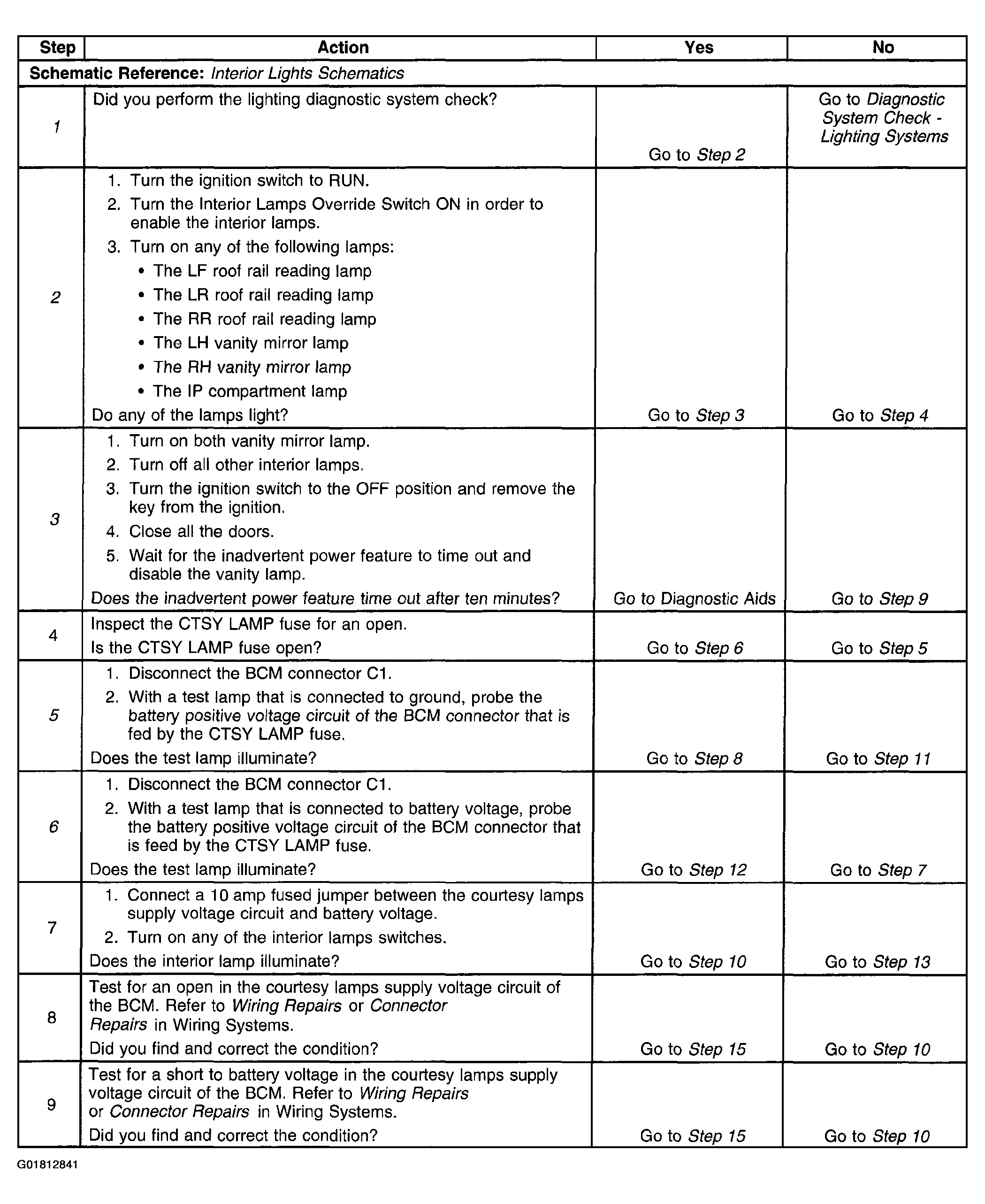

Fig 1: DTC 002 (1 Of 2)
G01812841Courtesy of GENERAL MOTORS CORP.

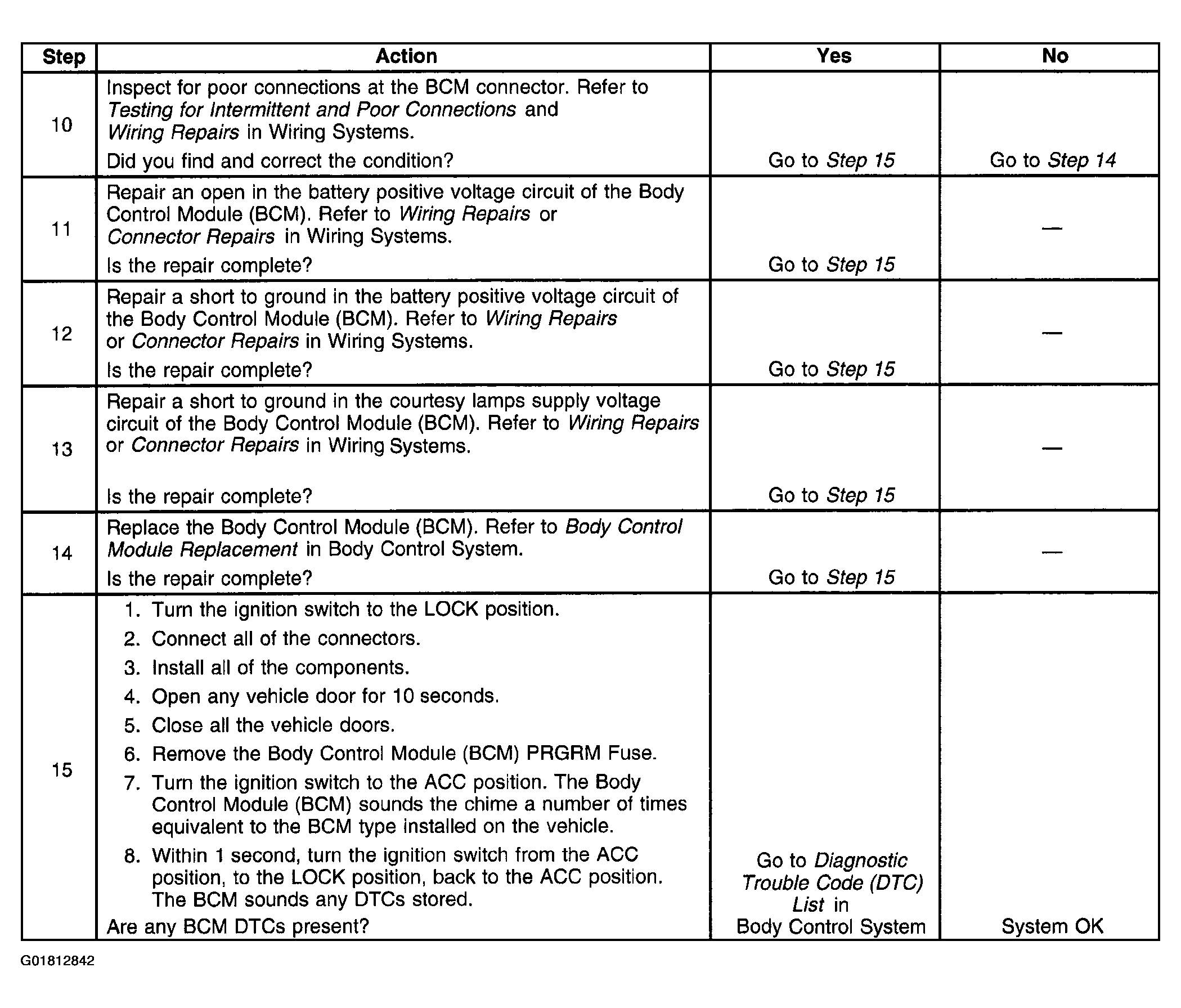

Fig 2: DTC 002 (2 Of 2)
G01812842Courtesy of GENERAL MOTORS CORP.
