Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open and support the hood.
  2. Remove the cover from the underhood electrical center.
  3. Remove the bolt retaining the underhood electrical center to the upper tie bar.

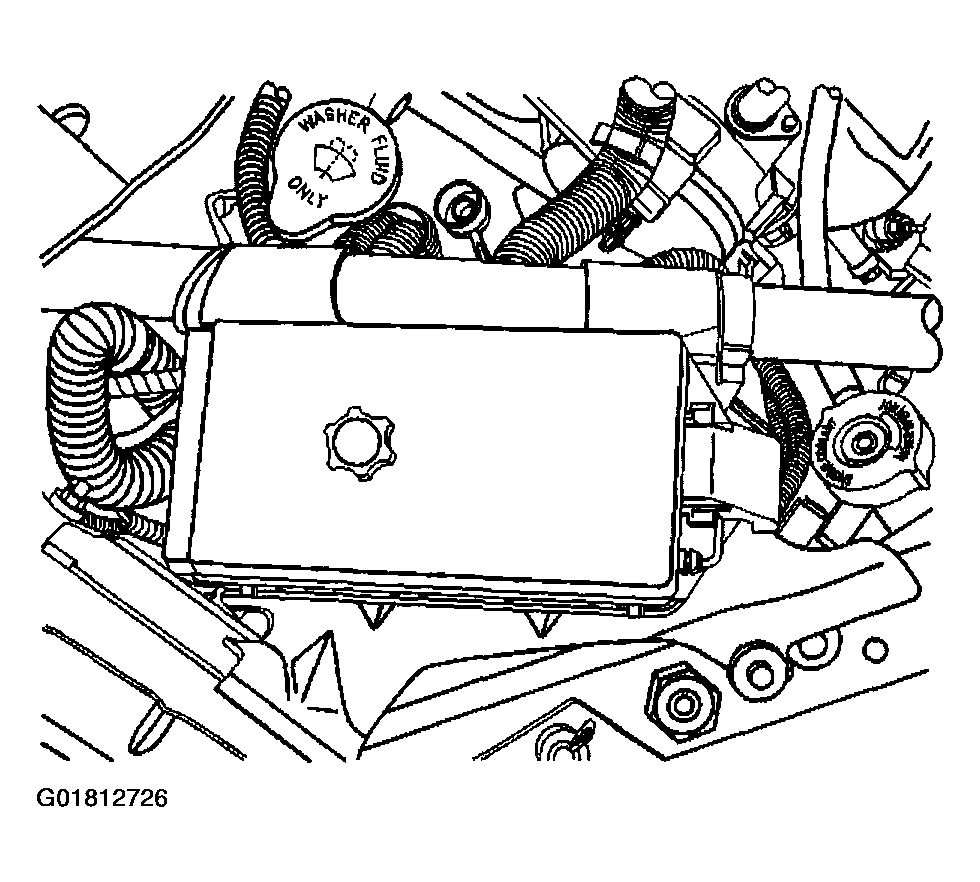

    Fig 1: Cover & Underhood Electrical Center
    G01812726Courtesy of GENERAL MOTORS CORP.
  4. Rotate and remove the electrical center from the right sheet metal diagonal brace.
  5. Remove the right sheet metal diagonal brace. Refer to BRACE REPLACEMENT - FRONT FENDER UPPER DIAGONAL - RIGHT .
  6. Disconnect the negative battery cable. Refer to BATTERY BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .

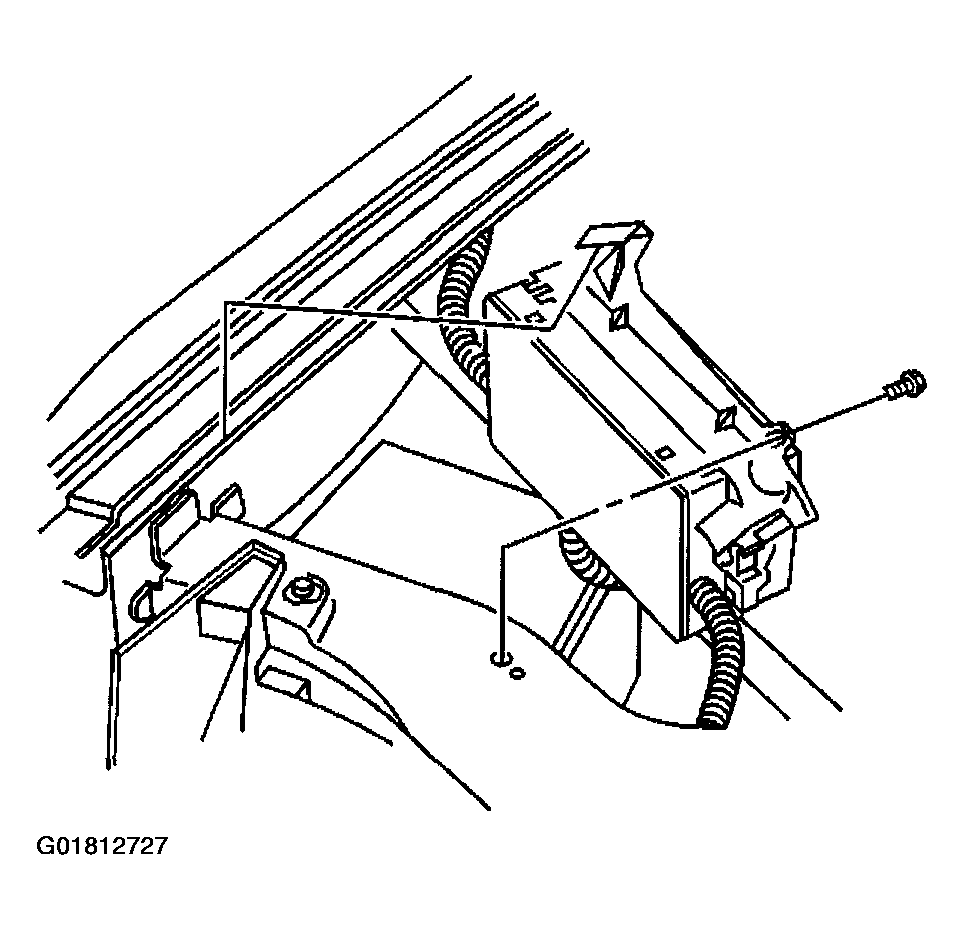

    Fig 2: Removing Right Sheet Metal Diagonal Brace
    G01812727Courtesy of GENERAL MOTORS CORP.
  7. Remove the nut (1) retaining the positive battery cable to the underhood electrical center.
  8. Remove the positive battery cable lead (2) from the stud.

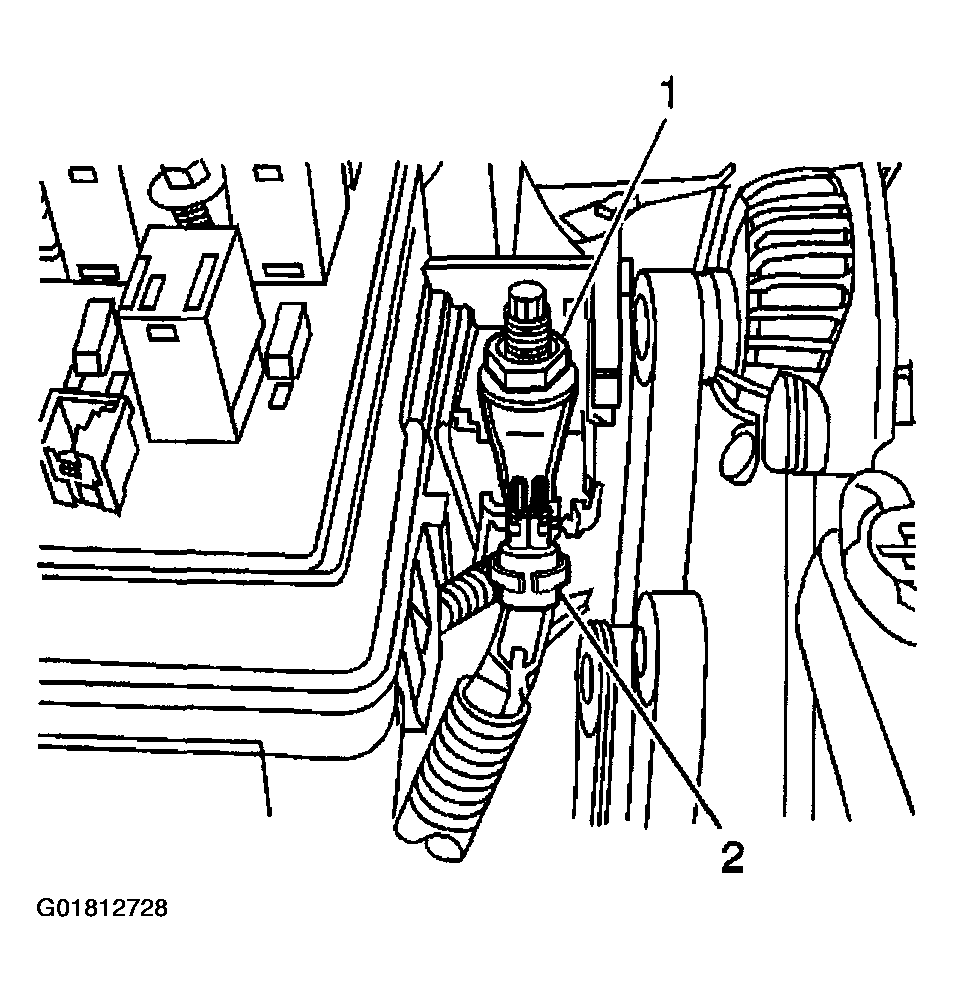

    Fig 3: Removing Positive Battery Cable Lead & Nuts
    G01812728Courtesy of GENERAL MOTORS CORP.
  9. Remove the lower cover from the underhood electrical center.
  10. Disconnect the electrical connectors from the underhood electrical center.
  11. Remove the underhood electrical center.

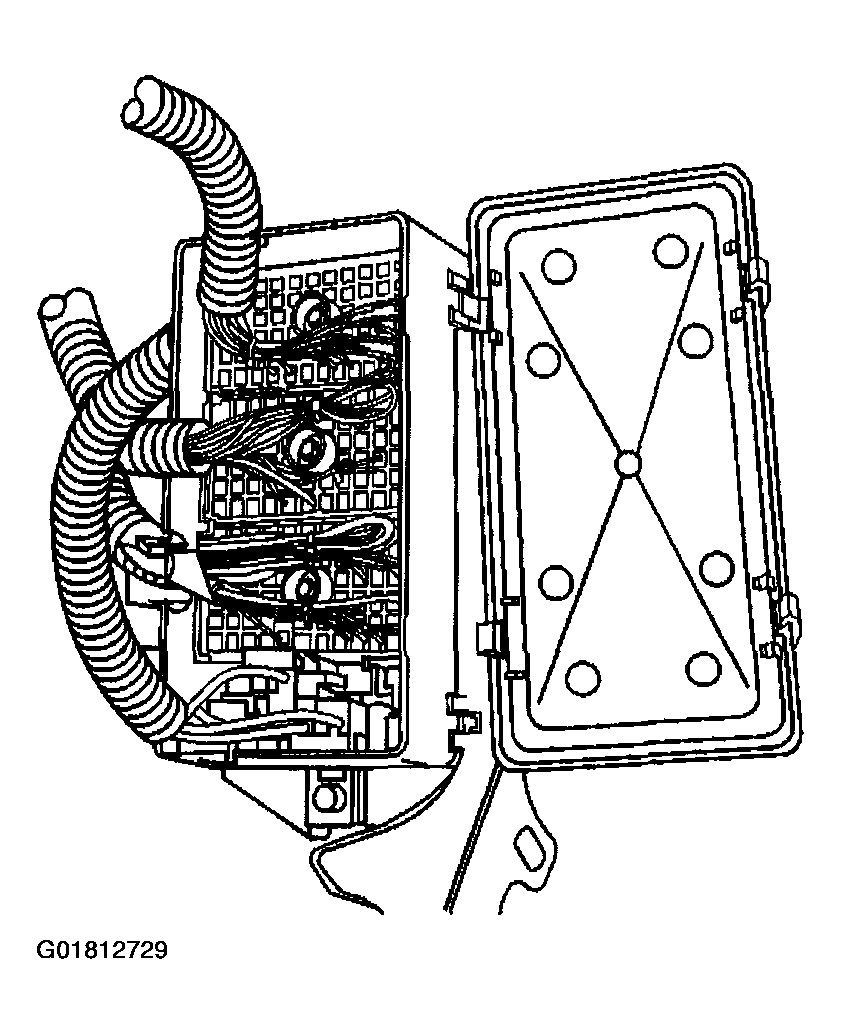

    Fig 4: Removing Lower Cover & Underhood Electrical Center
    G01812729Courtesy of GENERAL MOTORS CORP.
