Instrument Panel Electrical Center or Junction Block Replacement

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Removal Procedure

  1. Disconnect the battery negative cable. Refer to BATTERY BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
  2. Remove the fuse block IP end cover.
  3. Release the front retainer on the fuse block.

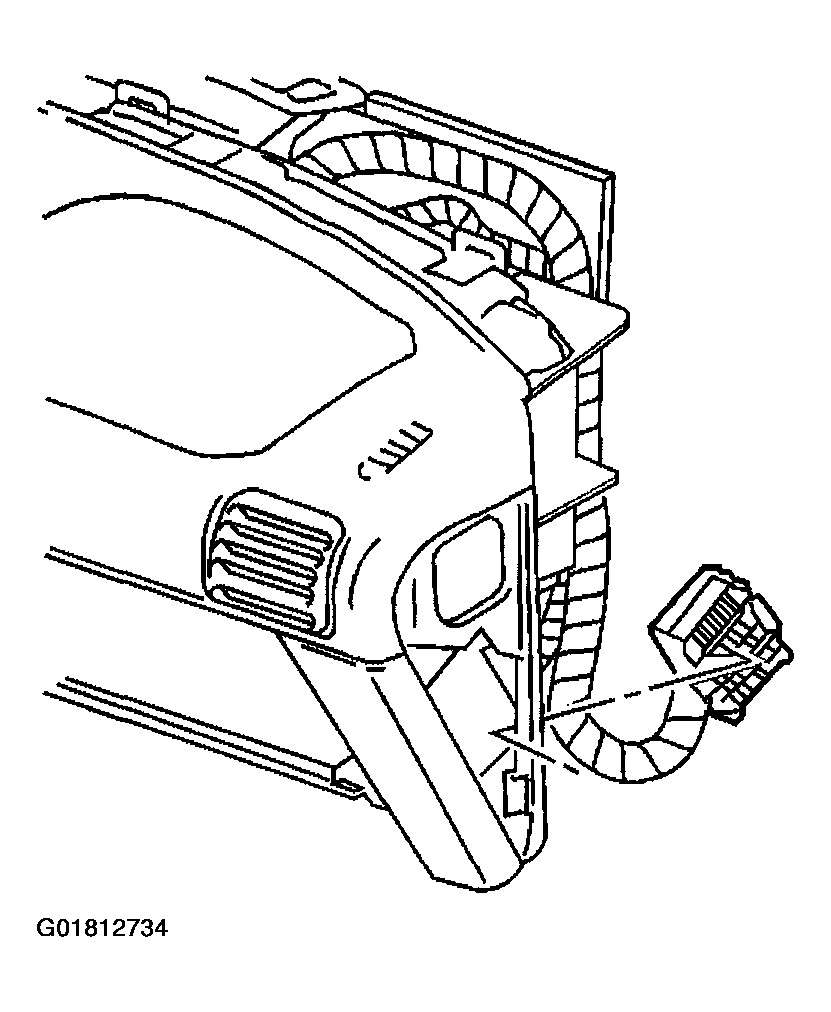

    Fig 1: Fuse Block IP End Cover
    G01812734Courtesy of GENERAL MOTORS CORP.
  4. Push the fuse block into the instrument panel.
  5. Remove the fuse block from the instrument panel.
  6. Remove the electrical connectors from the fuse block. Refer to Connector Repairs .

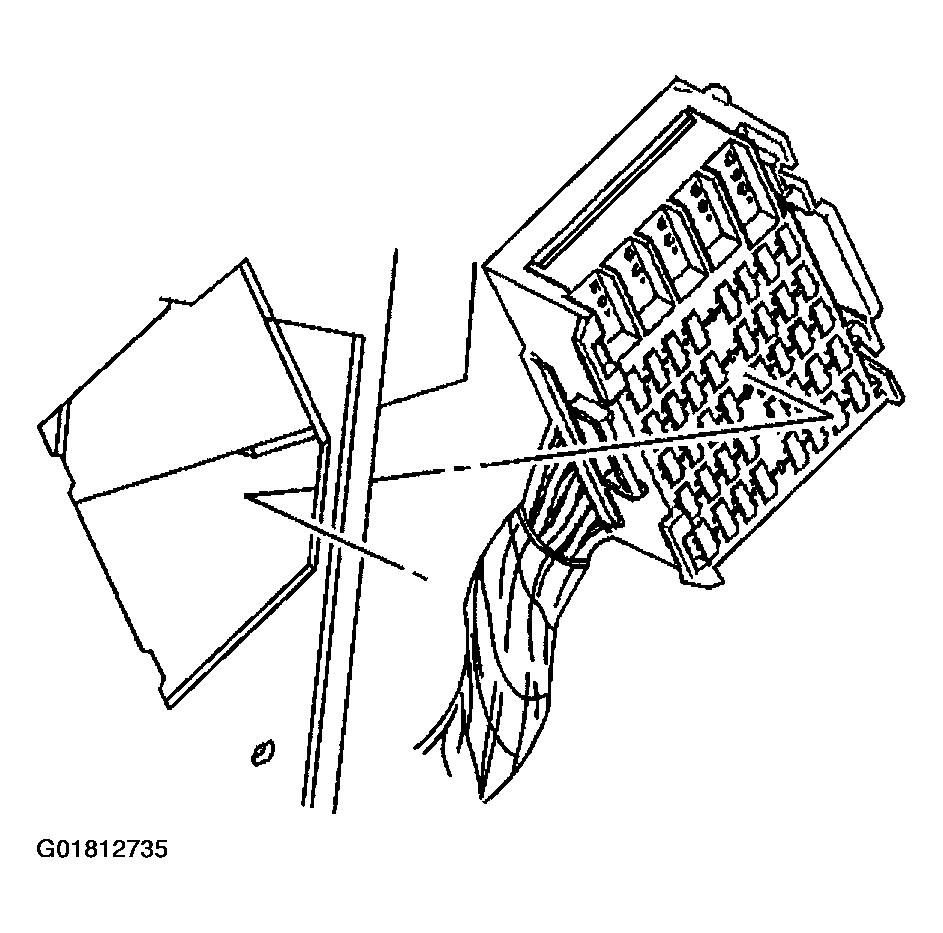

    Fig 2: Removing Electrical Connectors & Fuse Block
    G01812735Courtesy of GENERAL MOTORS CORP.
