Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

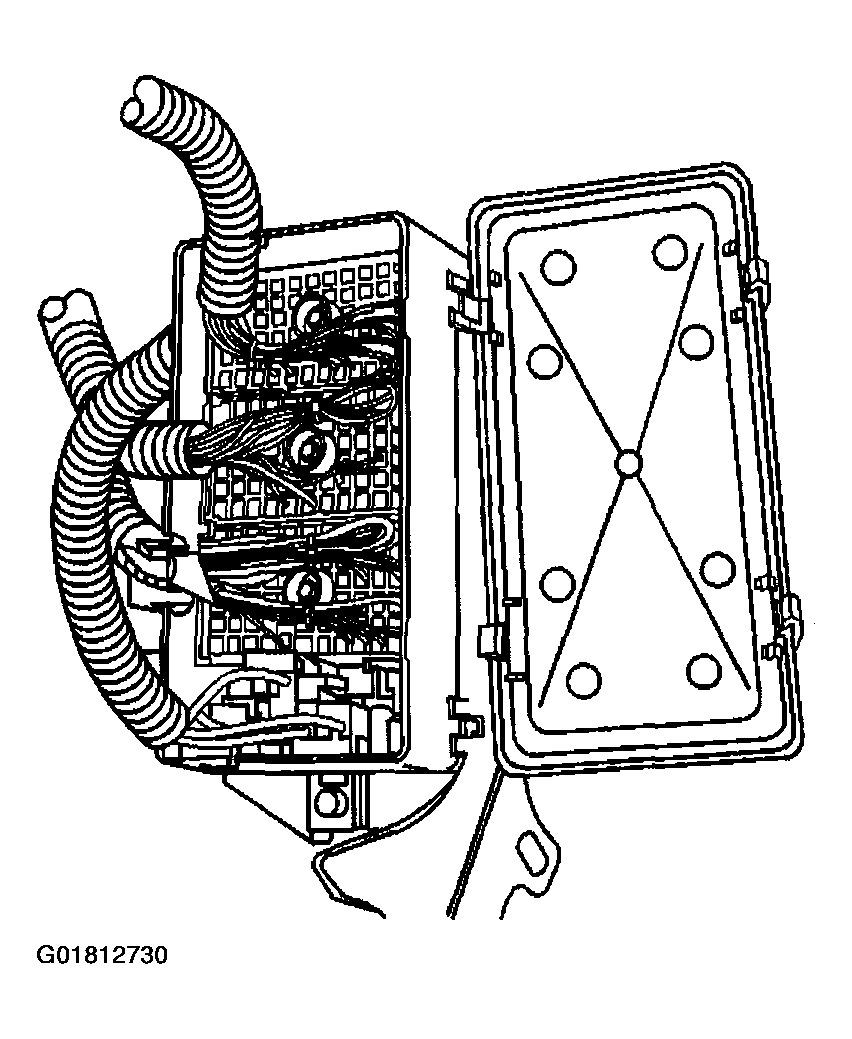

Fig 1: Installing Lower Cover & Underhood Electrical Center
G01812730Courtesy of GENERAL MOTORS CORP.
  1. Install the underhood electrical center to the engine compartment.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the electrical connectors to the underhood electrical center.

    Tighten

    Tighten the underhood accessory wiring junction block electrical harness bolts to 7 N.m (62 lb in).

  3. Install the underhood electrical center lower cover.
  4. Install the positive battery cable lead (2) to the stud on the underhood electrical center.

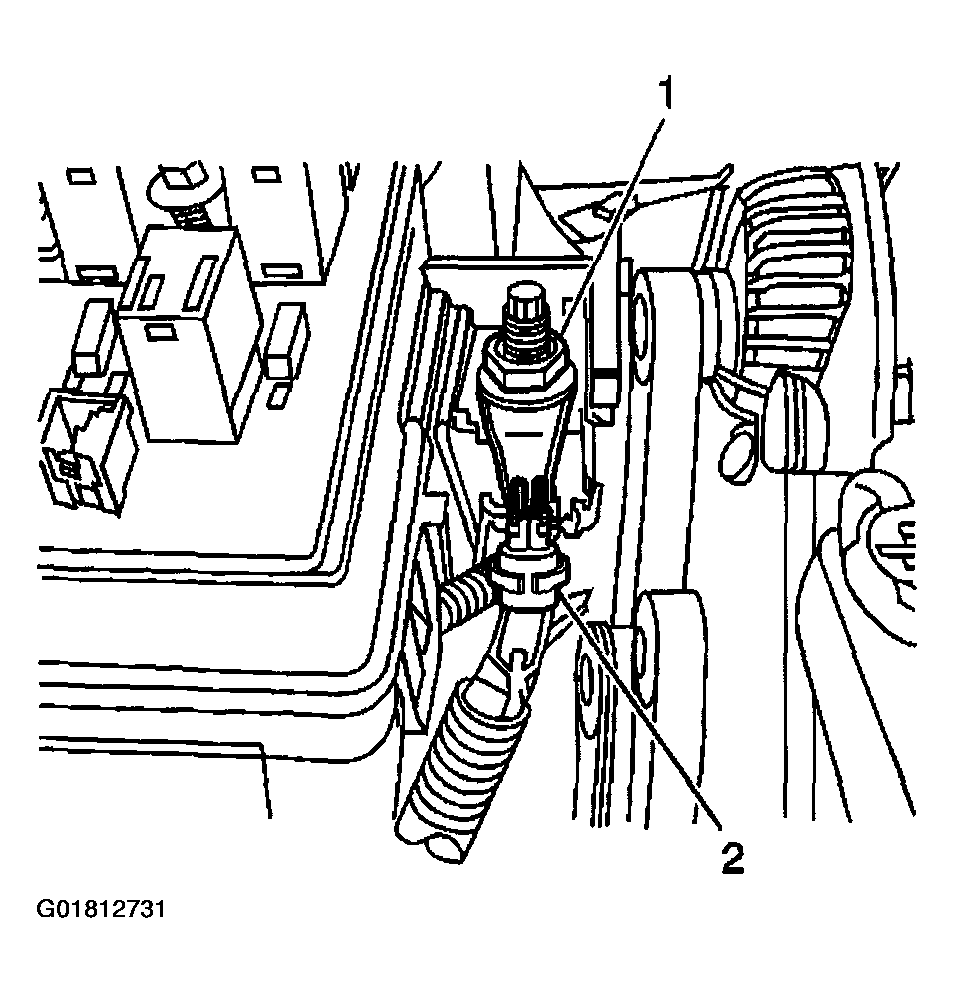

    Fig 2: Installing Positive Battery Cable Lead & Nuts
    G01812731Courtesy of GENERAL MOTORS CORP.
  5. Install the positive battery cable retaining nut (1).

    Tighten

    Tighten the positive battery cable nut to 16 N.m (12 lb ft).

  6. Connect the negative battery cable. Refer to BATTERY BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
  7. Install the right sheet metal diagonal brace. Refer to BRACE REPLACEMENT - FRONT FENDER UPPER DIAGONAL - RIGHT ..
  8. Position the underhood electrical center to the right sheet metal diagonal brace and rotate into position.

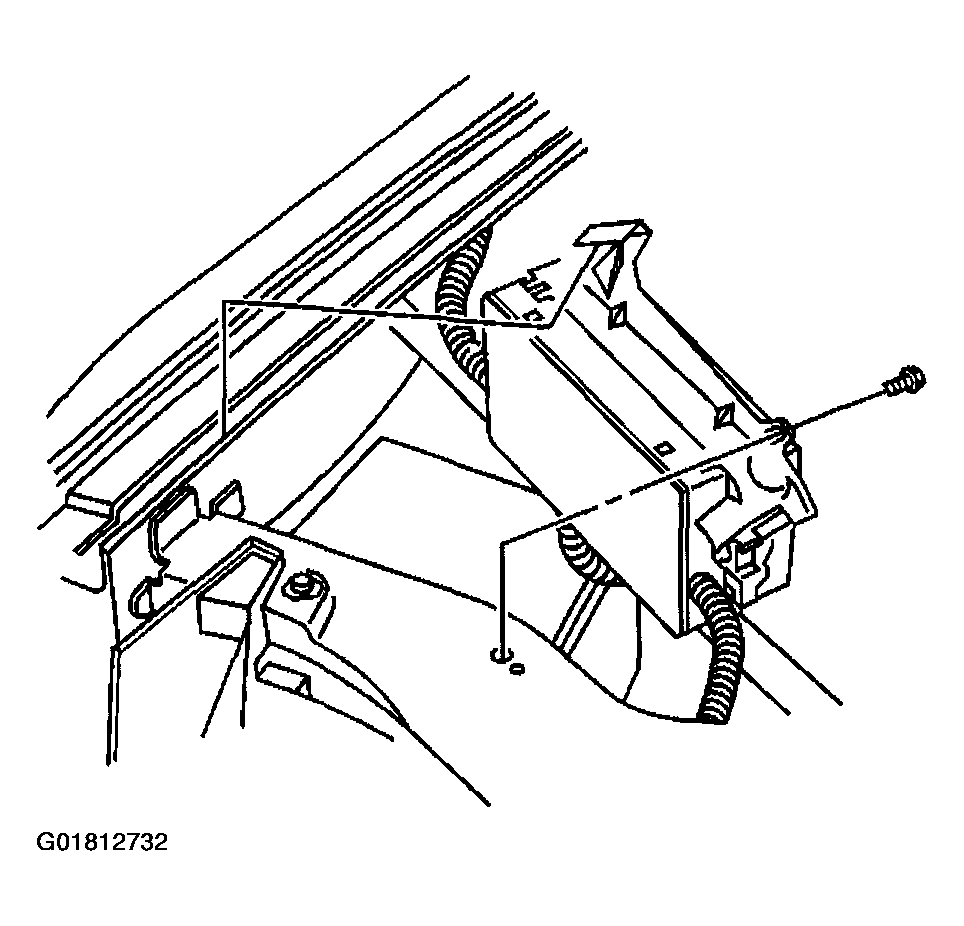

    Fig 3: Installing Right Sheet Metal Diagonal Brace
    G01812732Courtesy of GENERAL MOTORS CORP.
  9. Install the bolt to the electrical center at the upper tie bar.

    Tighten

    Tighten the underhood electrical center to upper tie bar bolt to 2 N.m (18 lb in).

  10. Install the underhood electrical center cover.
  11. Close the hood.

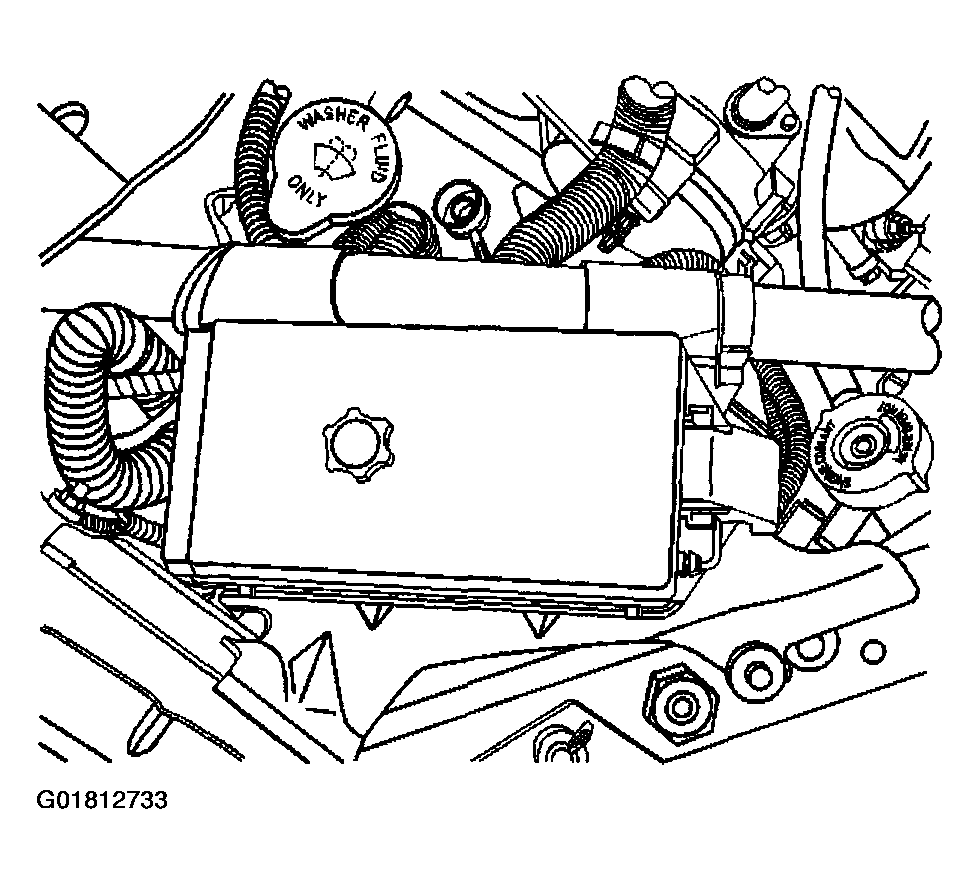

    Fig 4: Underhood Electrical Center Cover
    G01812733Courtesy of GENERAL MOTORS CORP.


  1. Install the electrical connectors into the fuse block. Refer to Connector Repairs .
  2. Align the rear side of the fuse block with the instrument panel.
  3. Push the fuse block into the opening until secure.
  4. Install the IP end cover.
  5. Connect the battery negative cable. Refer to BATTERY BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .

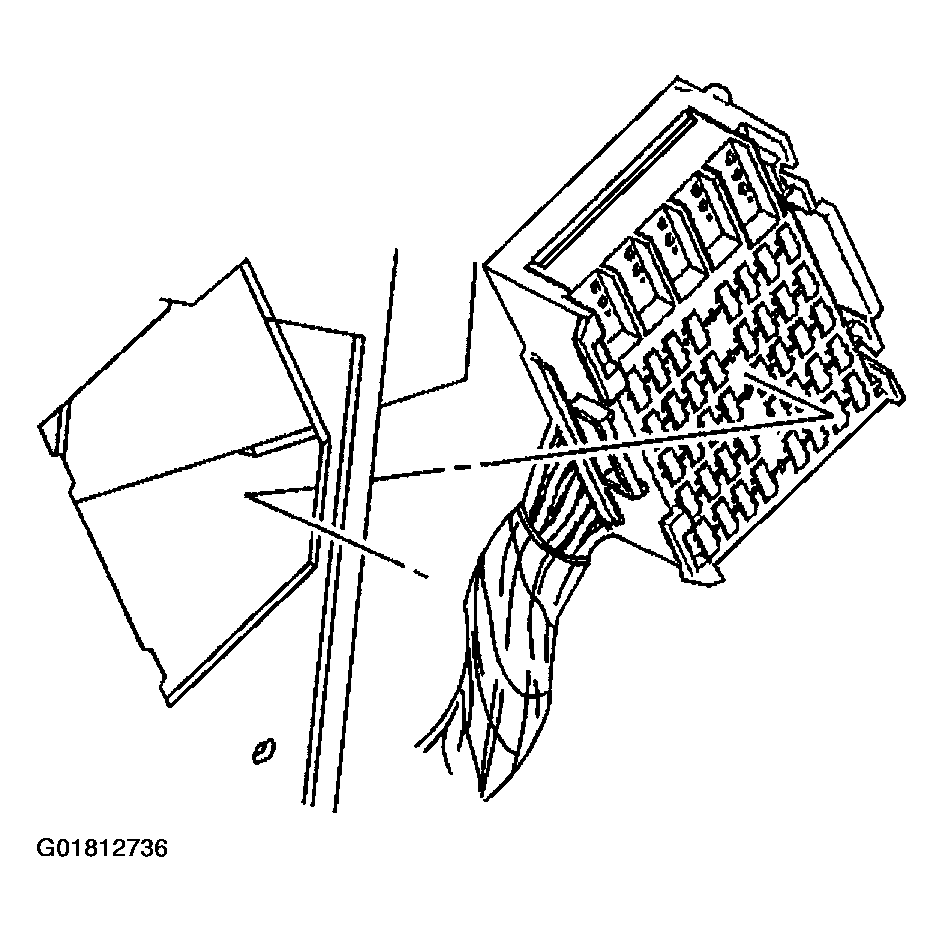

    Fig 1: Installing Electrical Connectors & Fuse Block
    G01812736Courtesy of GENERAL MOTORS CORP.
