Where to Find Electrical Schematics

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Electrical system schematics are located within their respective subsections. Because more than one electrical system is located in each subsection, each electrical systems schematics are further broken down into operating systems. The following table lists all electrical system schematics and the subsection in which they are located.

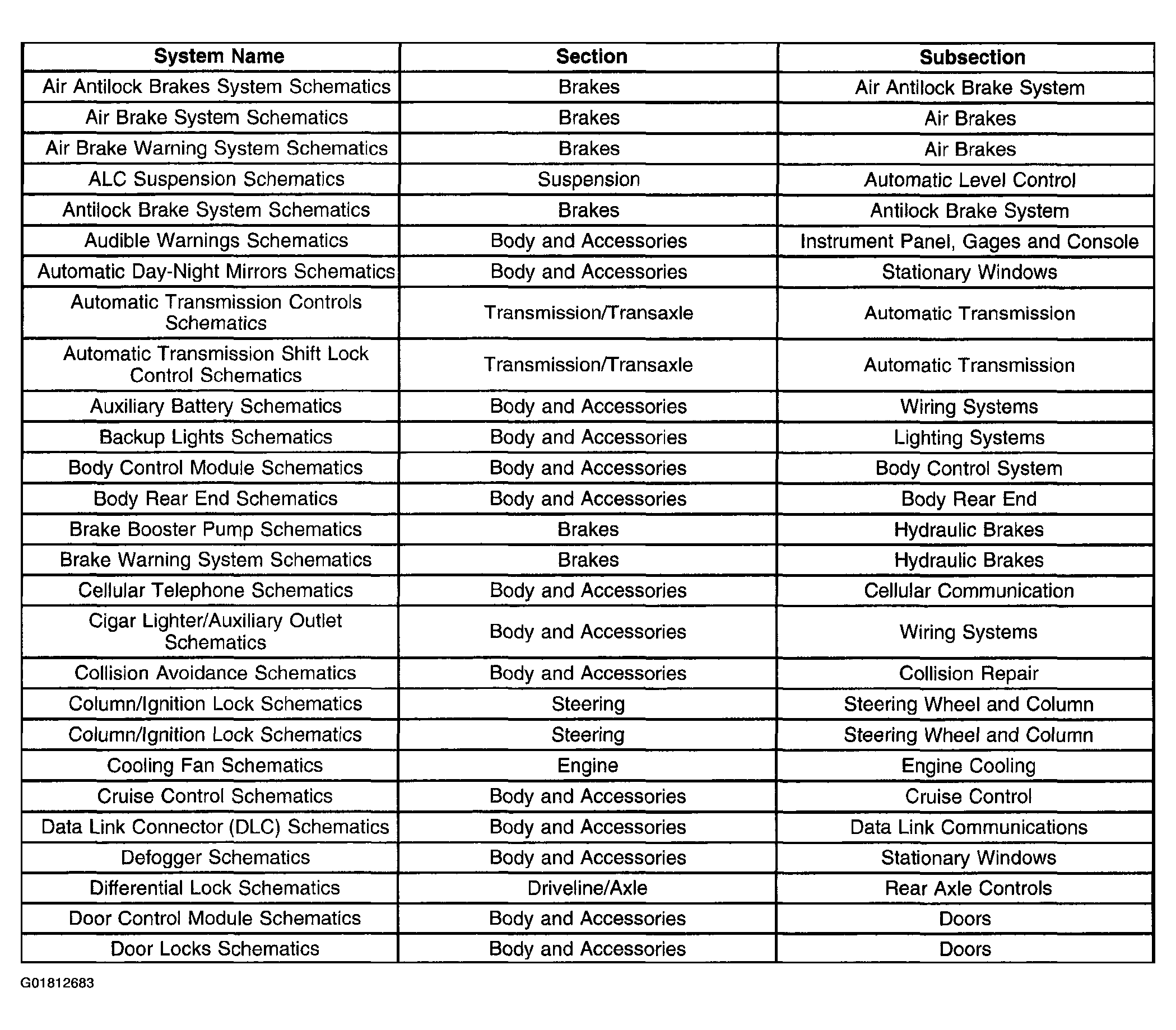

Fig 1: Electrical Schematic Locations (1 Of 3)
G01812683Courtesy of GENERAL MOTORS CORP.

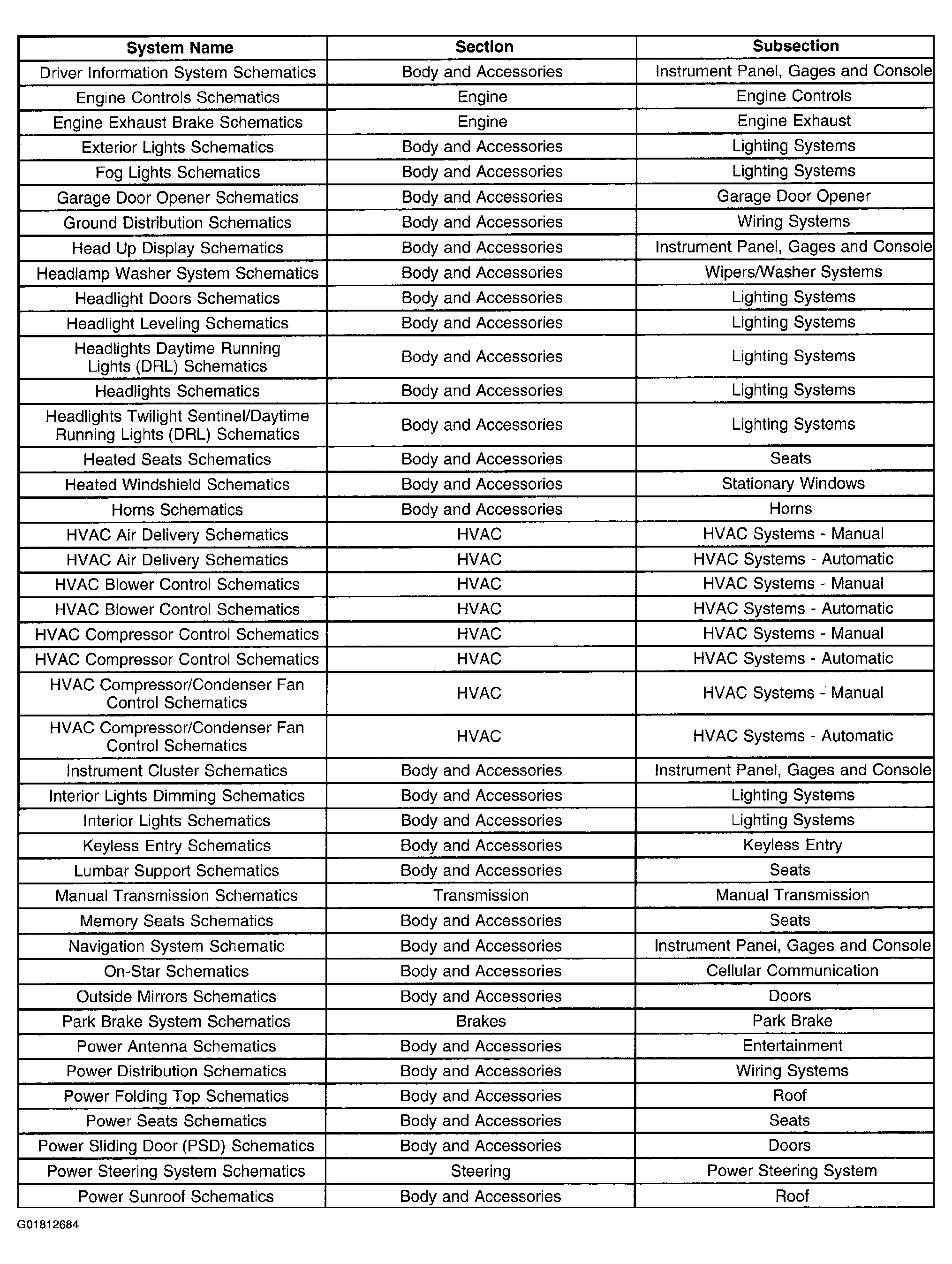

Fig 2: Electrical Schematic Locations (2 Of 3)
G01812684Courtesy of GENERAL MOTORS CORP.

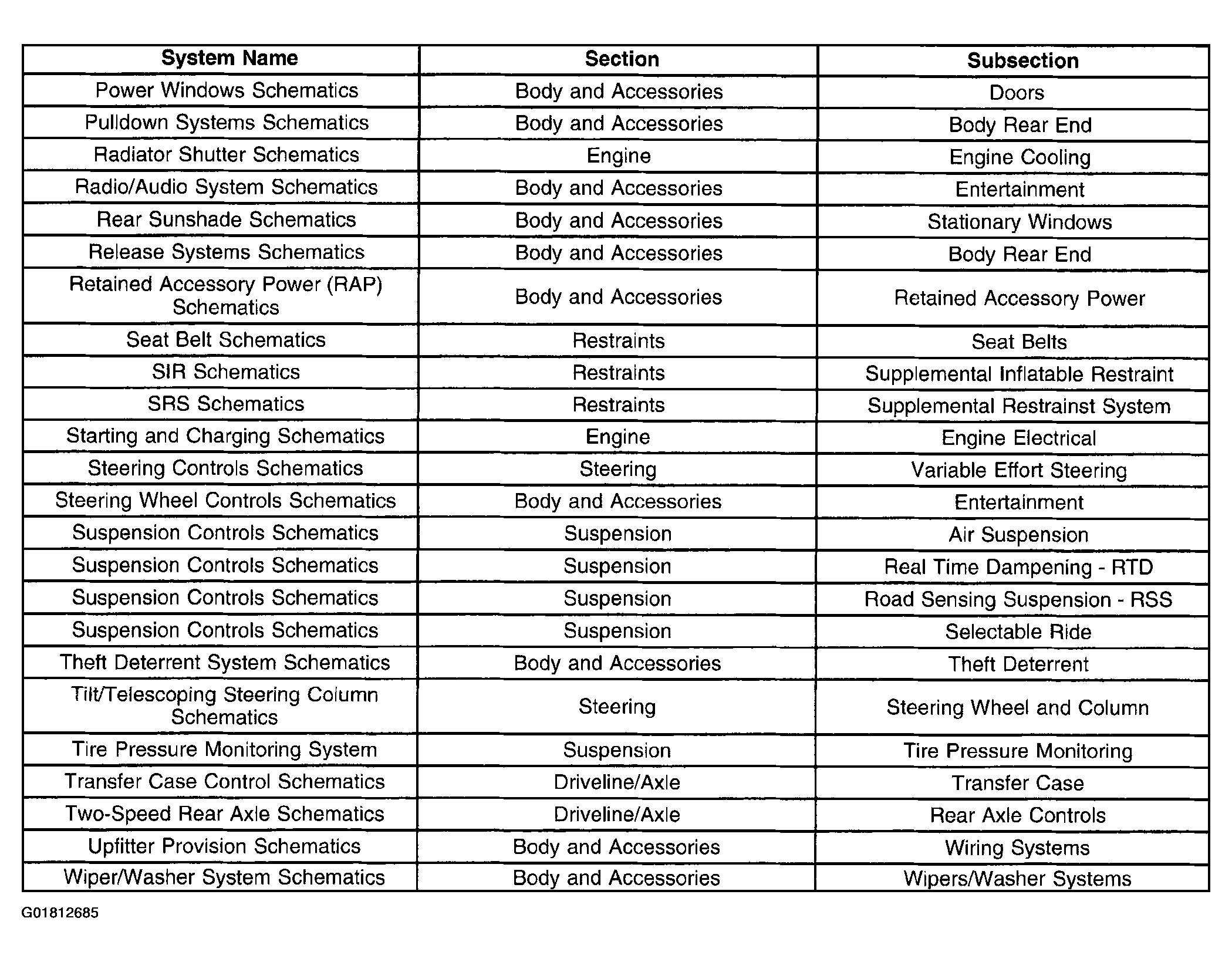

Fig 3: Electrical Schematic Locations (3 Of 3)
G01812685Courtesy of GENERAL MOTORS CORP.
