Utility/Van Zoning

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

All grounds, in-line connectors, pass-through grommets, and splices have identifying numbers that correspond to where they are located in the vehicle. The following table explains the numbering system.

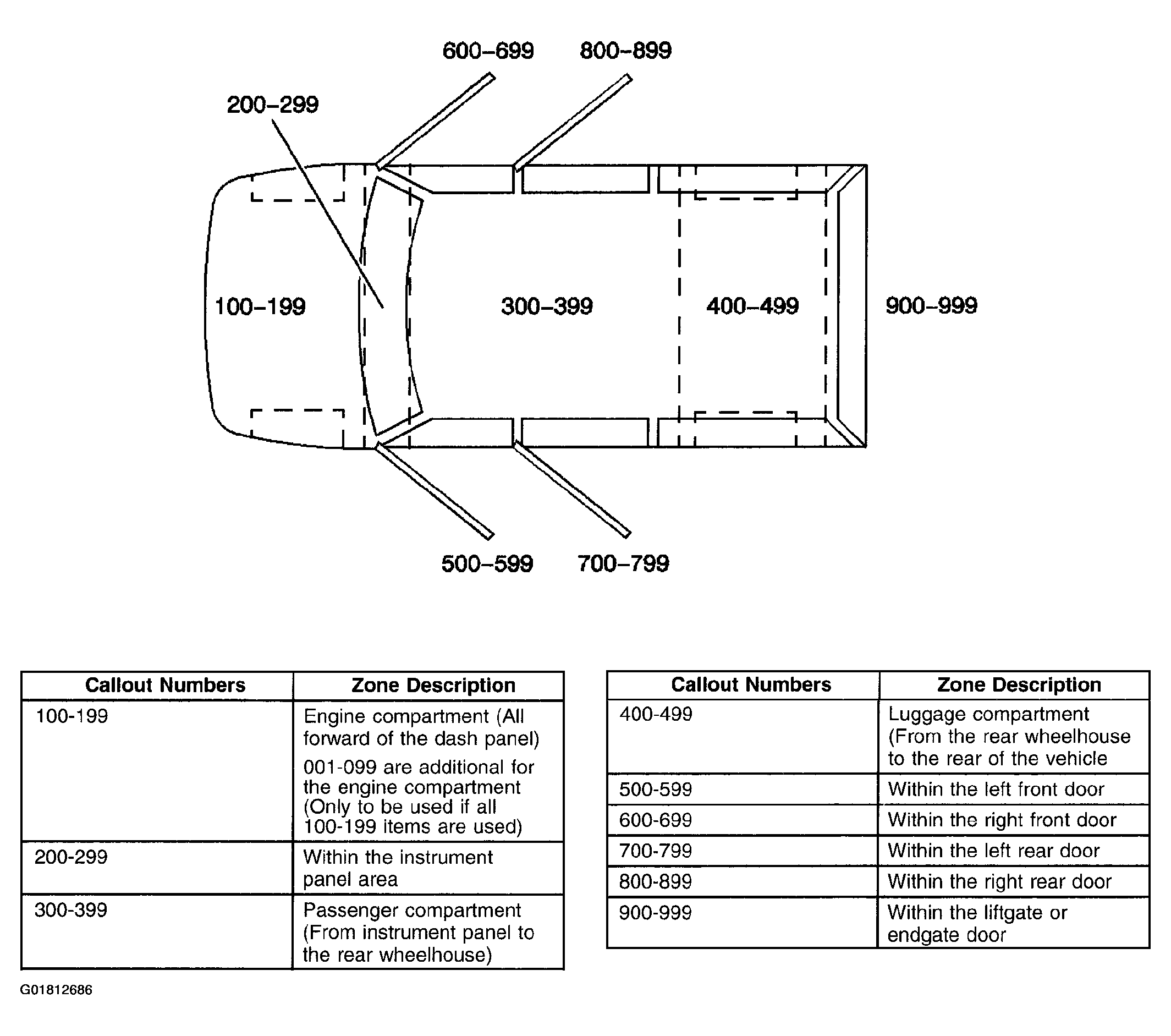

Fig 1: Utility/Van Zoning

G01812686

Courtesy of GENERAL MOTORS CORP.

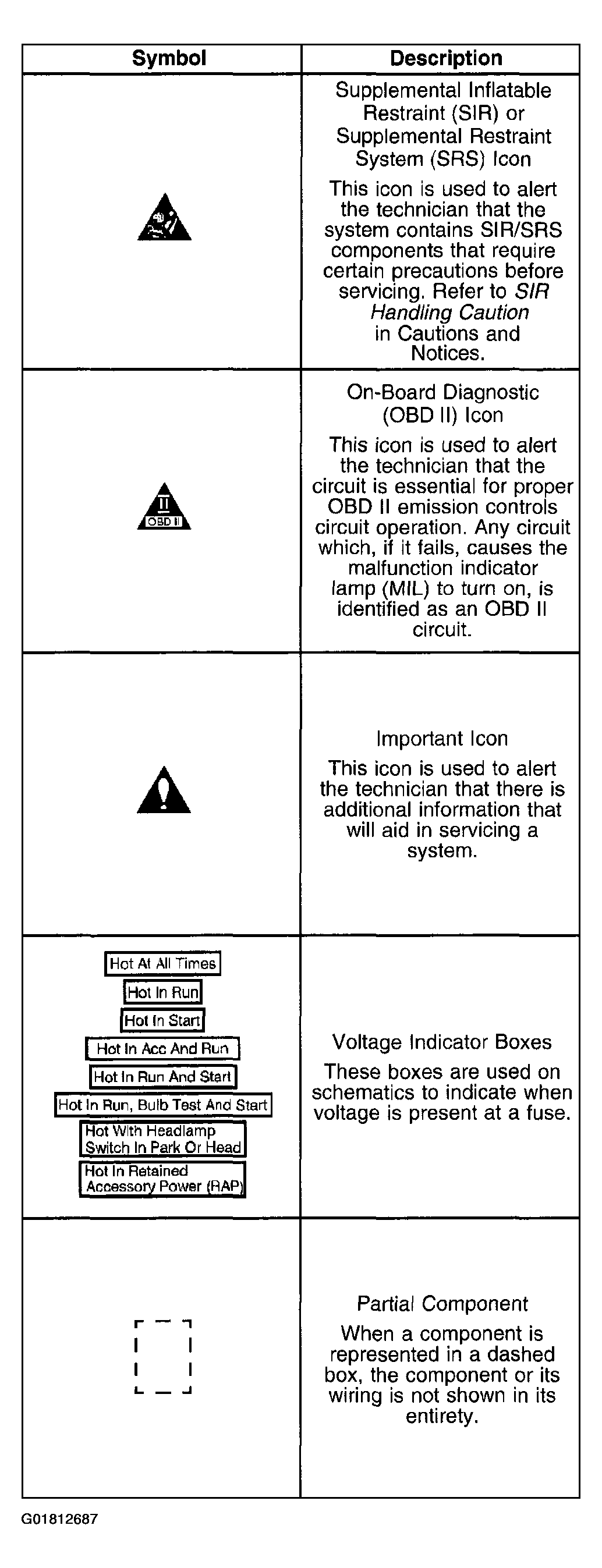

Fig 2: Electrical Symbols (1 Of 8)

G01812687

Courtesy of GENERAL MOTORS CORP.

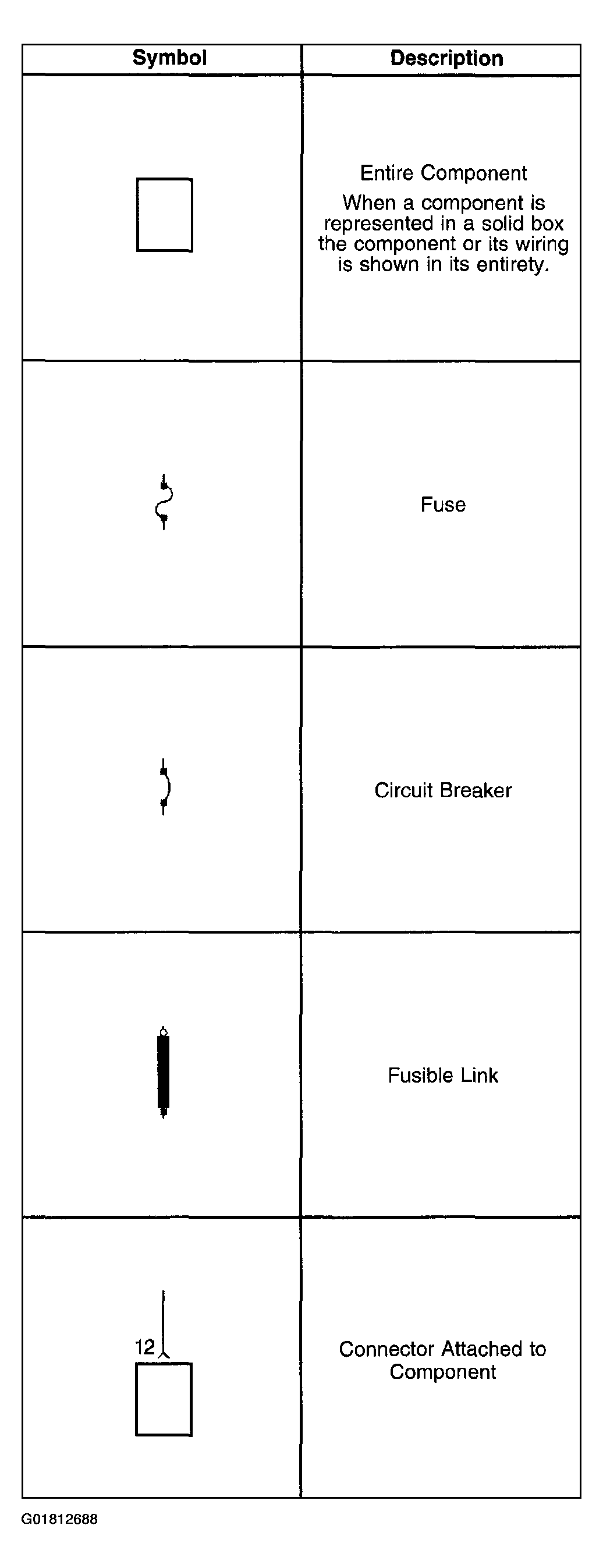

Fig 3: Electrical Symbols (2 Of 8)

G01812688

Courtesy of GENERAL MOTORS CORP.

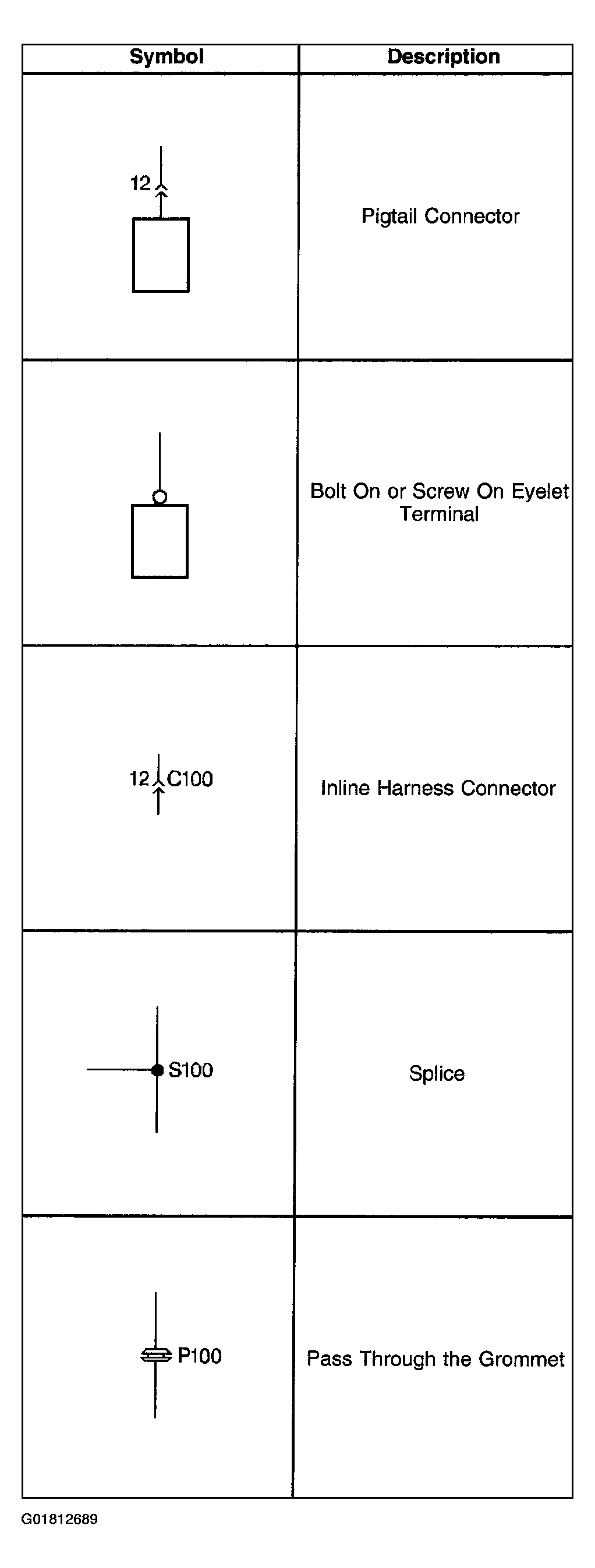

Fig 4: Electrical Symbols (3 Of 8)

G01812689

Courtesy of GENERAL MOTORS CORP.

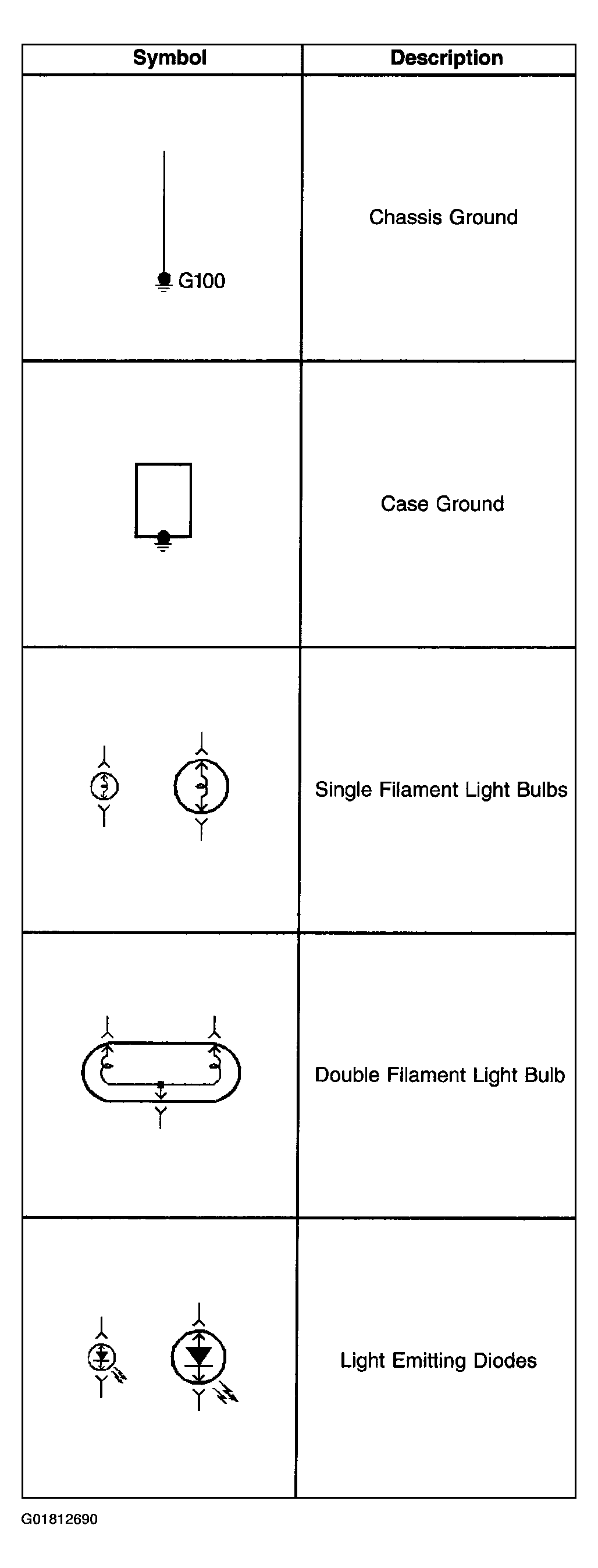

Fig 5: Electrical Symbols (4 Of 8)

G01812690

Courtesy of GENERAL MOTORS CORP.

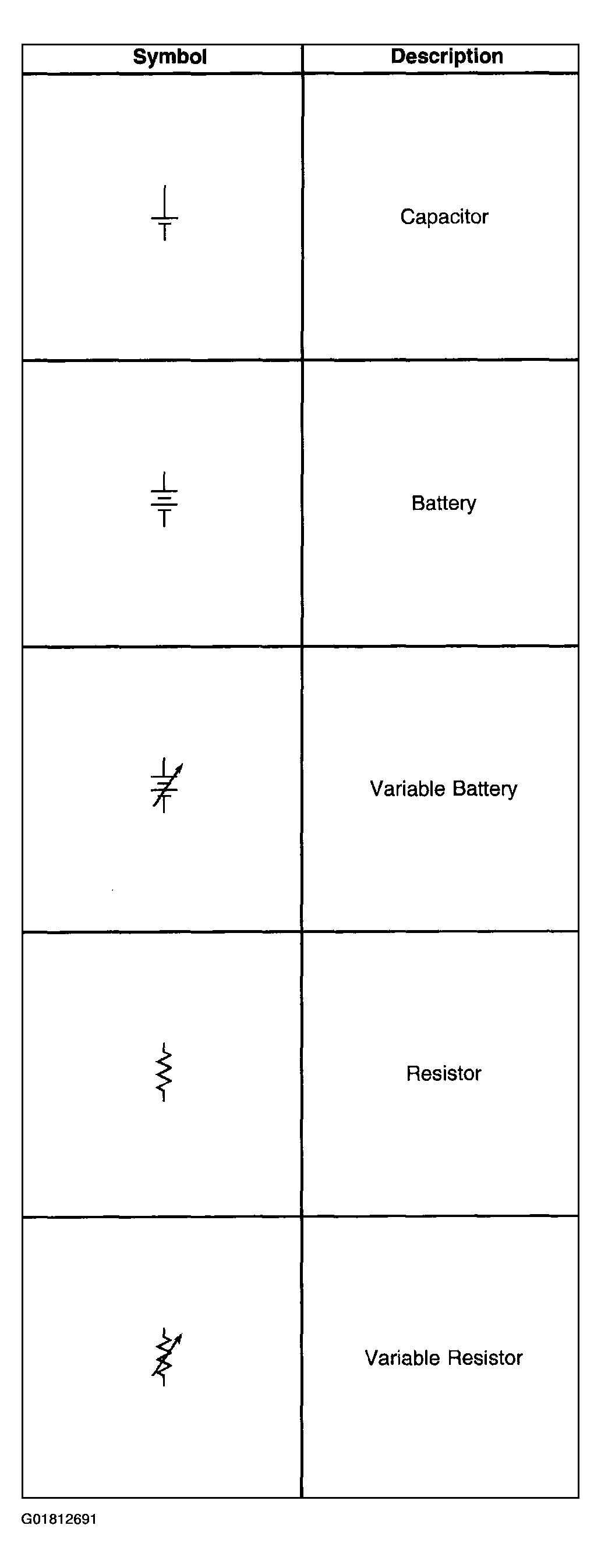

Fig 6: Electrical Symbols (5 Of 8)

G01812691

Courtesy of GENERAL MOTORS CORP.

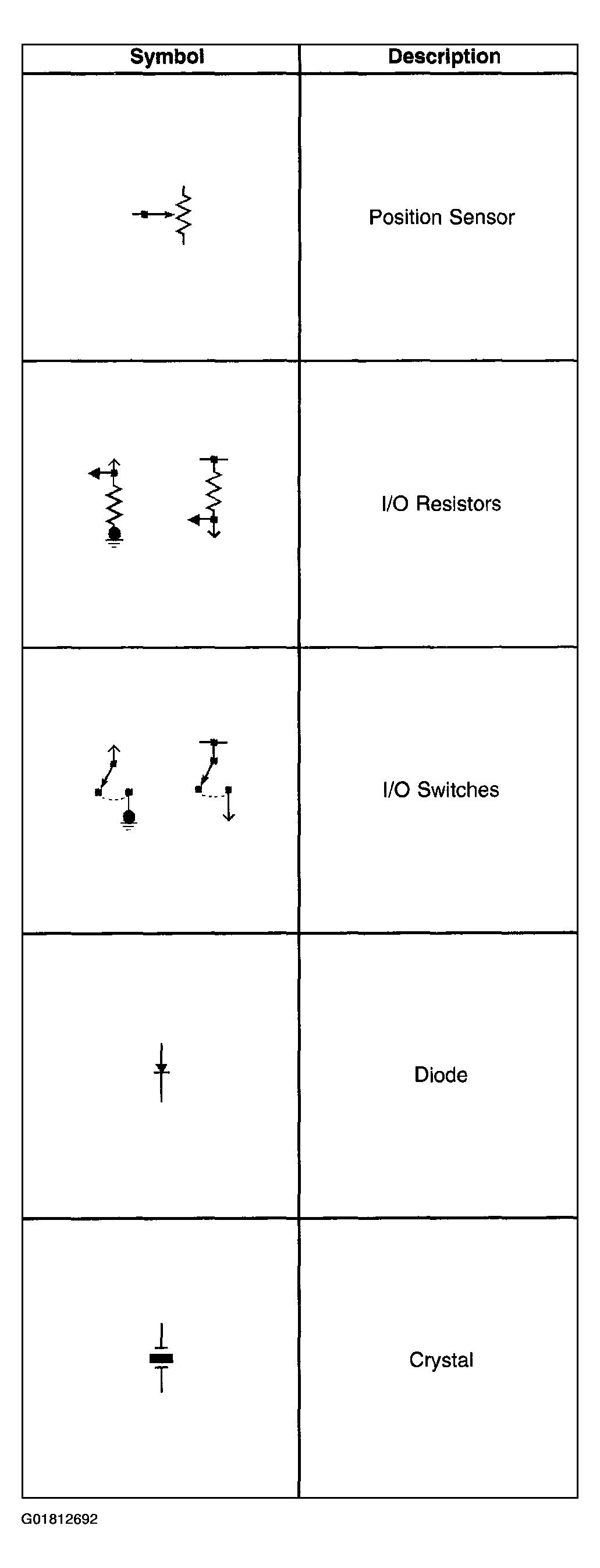

Fig 7: Electrical Symbols (6 Of 8)

G01812692

Courtesy of GENERAL MOTORS CORP.

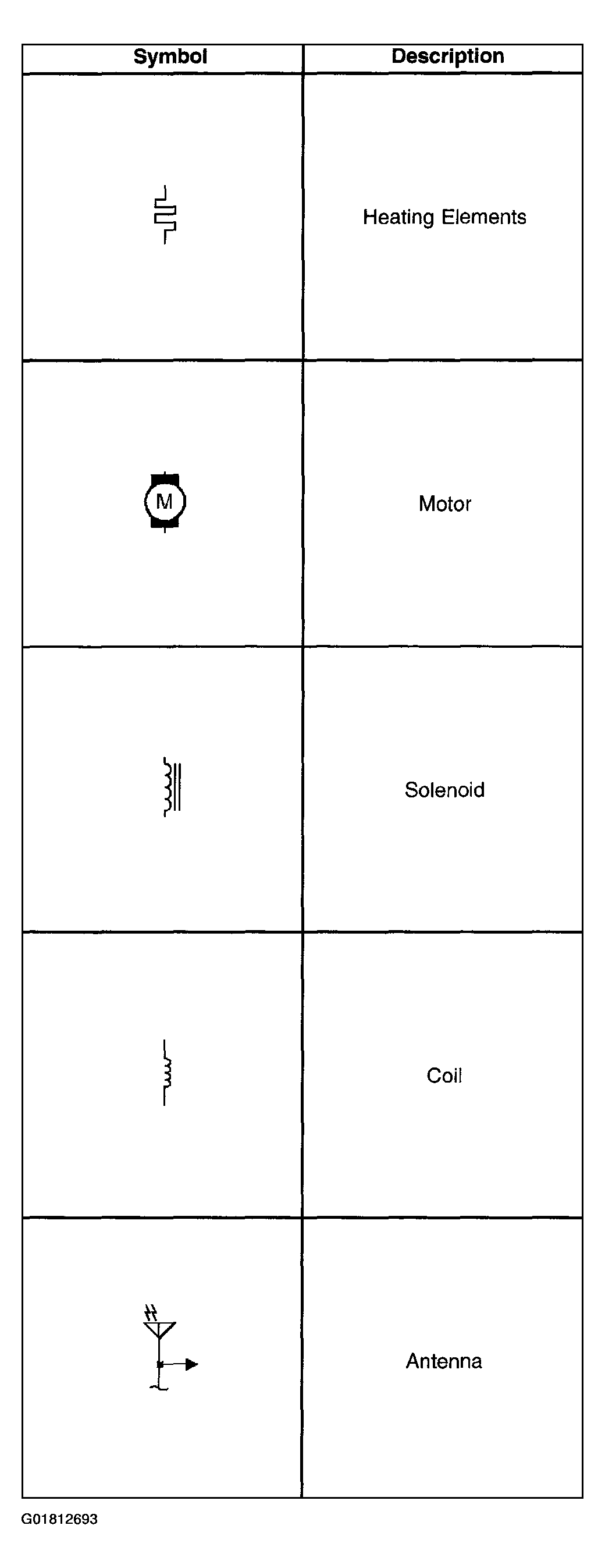

Fig 8: Electrical Symbols (7 Of 8)

G01812693

Courtesy of GENERAL MOTORS CORP.

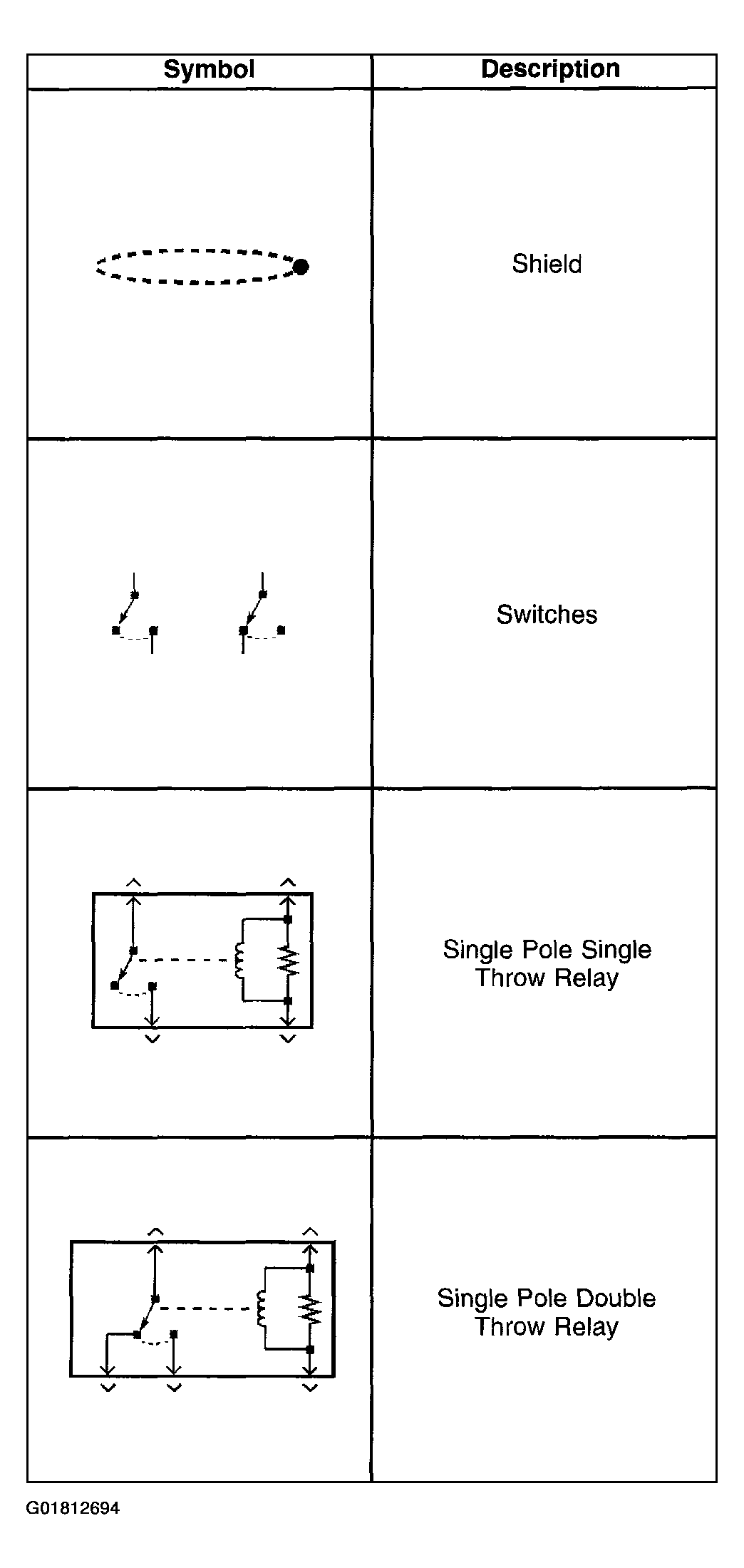

Fig 9: Electrical Symbols (8 Of 8)

G01812694

Courtesy of GENERAL MOTORS CORP.
