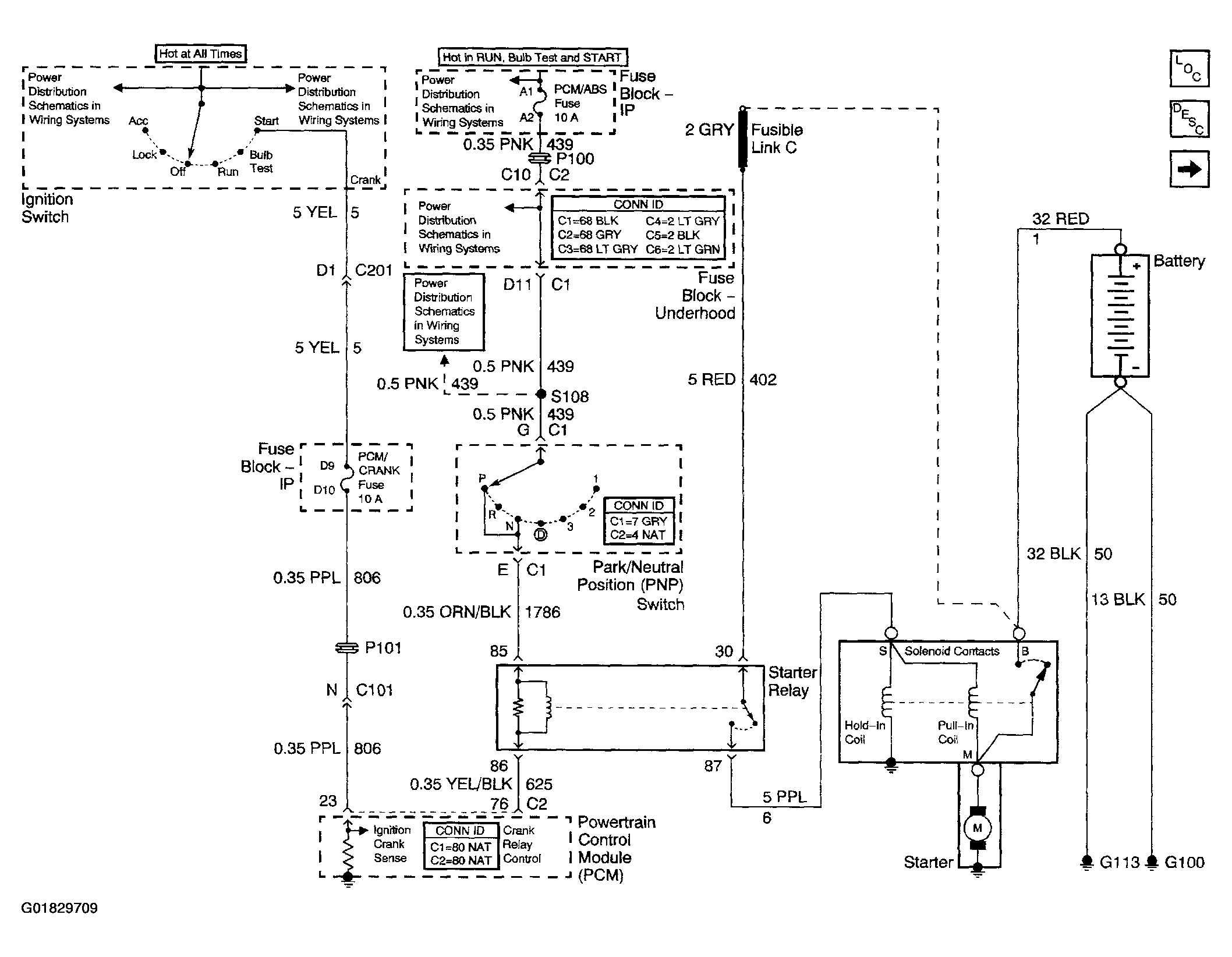

Fig 1: Starting And Charging Schematics (Starting)
Courtesy of GENERAL MOTORS CORP.

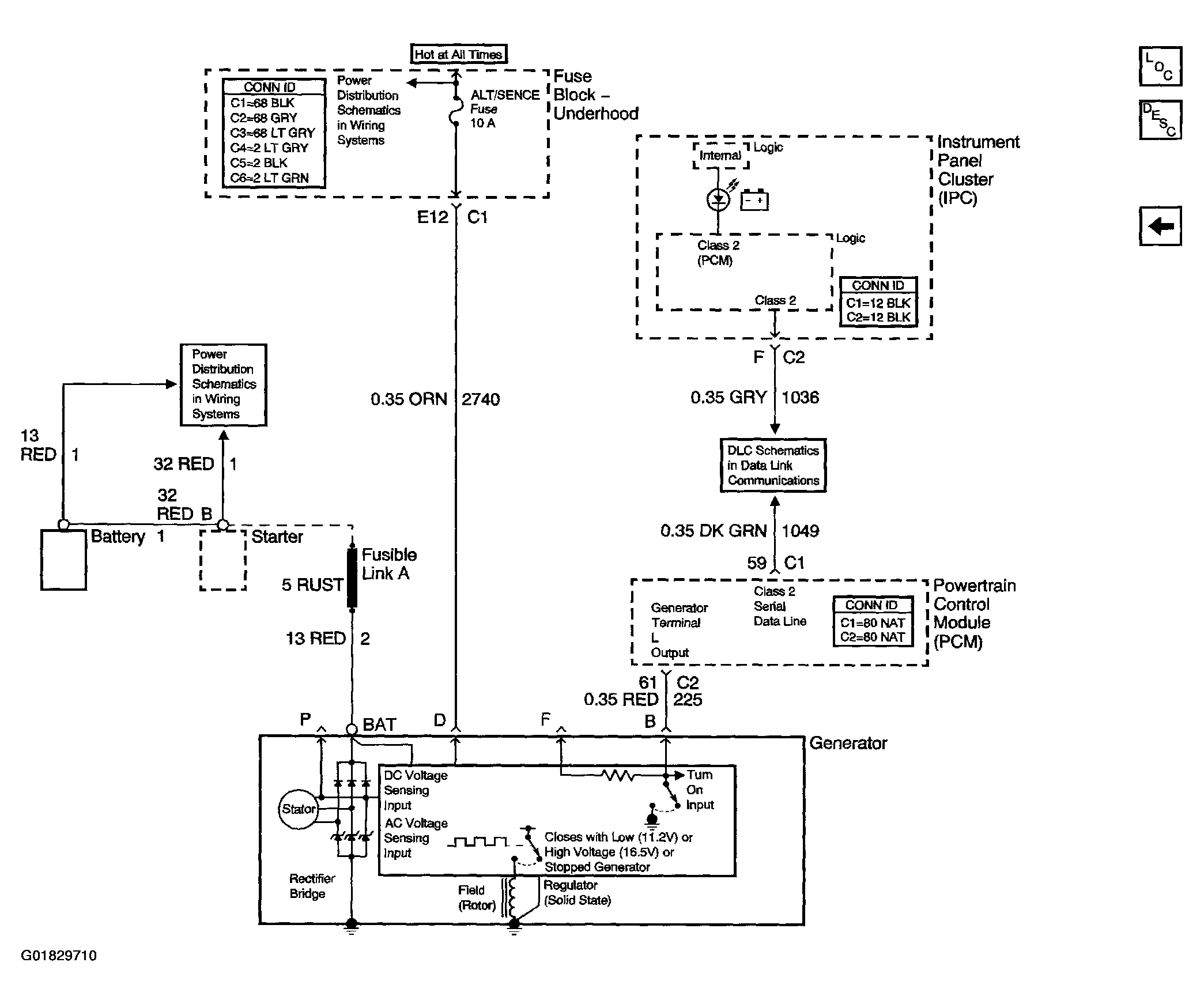

Fig 2: Starting And Charging Schematics (Charging)
