Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the valve rocker arm cover(s). Refer to VALVE ROCKER ARM COVER REPLACEMENT - Left  and/or VALVE ROCKER ARM COVER REPLACEMENT - Right .
  2. Remove the rocker arm bolt(s).
  3. Remove the valve rocker arm(s) and the pushrod(s).

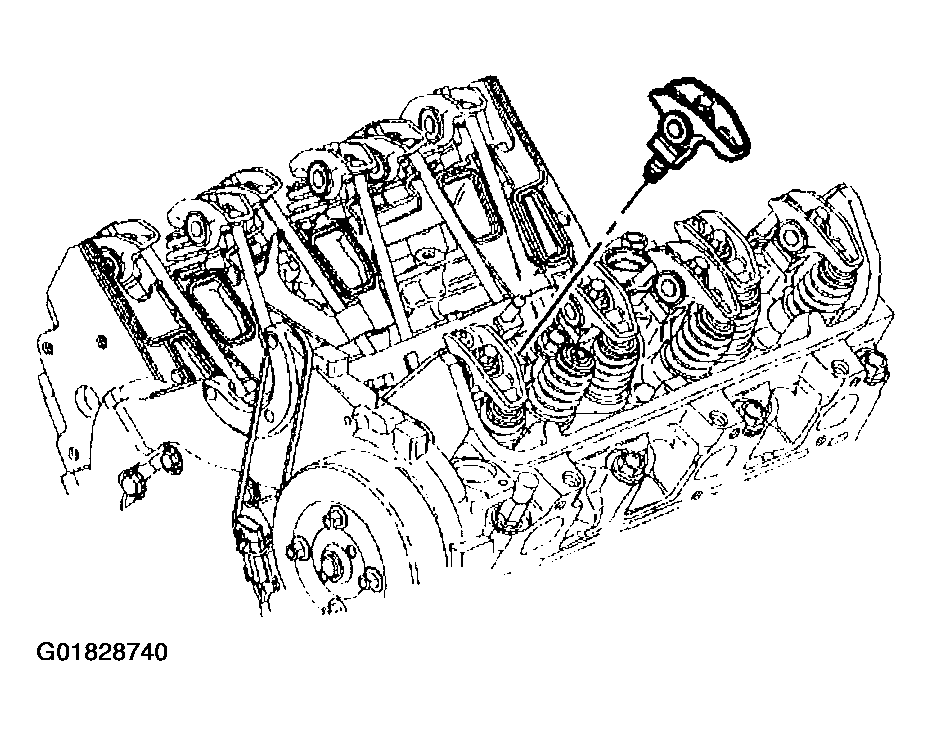

    Fig 1: Valve Rocker Arm
    G01828740Courtesy of GENERAL MOTORS CORP.
